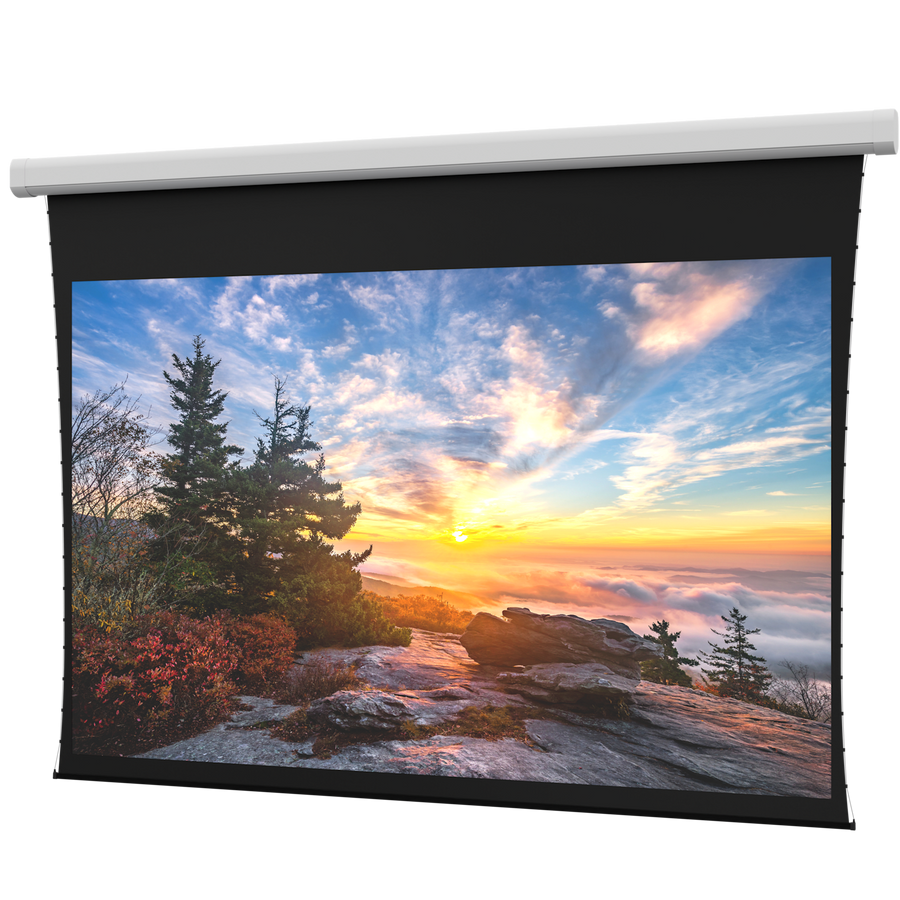

Da-Lite Myriad Reveal, 108" x 192" with HD Progressive 1.1 Contrast - DL100119L
108" x 192" electric projection screen for ceiling or wall mounting, featuring HD Progressive 1.1 Contrast surface
The Da-Lite DL100119L is a large venue, electric projection screen designed for professional environments like lecture halls, conference centers, and houses of worship. This Myriad Reveal series model provides a 108" x 192" (220" diagonal) viewing area with an HD Progressive 1.1 Contrast surface, specifically engineered for high-resolution front projection. It is built with a standard 120V (60Hz) motor and features low voltage control for integrated operation. The screen is suitable for both ceiling and wall applications, offering installers significant versatility during the mounting process. Because this is a Myriad Reveal model, it includes adjustable brackets that provide ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering once installed. This specific SKU features a standard black drop, which provides a consistent border for your projection surface. As a TAA compliant product, it is suitable for federal installations requiring US or specified international manufacturing standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 229.5" x 13" x 20.25" (582.9 x 33 x 51.4 cm) |
| Shipping Weight | 451 lbs (204.6 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236911844 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions of the Da-Lite DL100119L?
This screen has a width of 192" (487.7 cm), a height of 108" (274.3 cm), and a diagonal of 220" (558.8 cm).
Can I adjust the level of the screen once it is mounted?
Yes, the Myriad Reveal mounting system allows for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering.
What mounting options are available for this Myriad Reveal screen?
The DL100119L is designed for both ceiling and wall applications, providing flexibility for different architectural layouts.
What type of motor and control does this screen use?
The unit features a standard 120V (60Hz) motor and is equipped with built-in low voltage control.
Is this screen TAA compliant?
Yes, the DL100119L is TAA compliant, meeting specific requirements for government and federal procurement.
