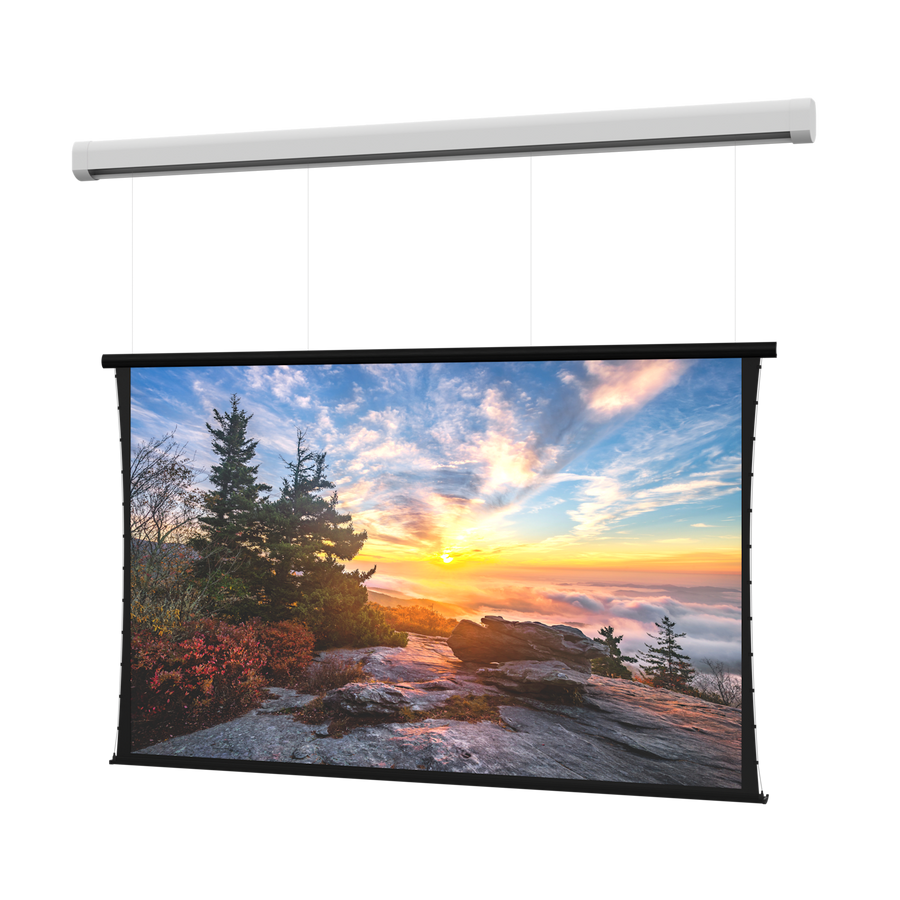

Da-Lite Myriad Reveal, 108" x 192" with Da-Tex - DL100171EL
Large venue rear projection screen, 108" x 192" (220" diagonal), featuring Da-Tex surface and SightLine cable drop
The Da-Lite DL100171EL is a large venue Myriad Reveal series electric screen designed for high-impact rear projection. This 108" x 192" (220" diagonal) screen features a Da-Tex surface and is configured with the SightLine cable drop system. Unlike standard drop models, SightLine provides a fully adjustable cable that accommodates a vertical drop distance of up to 16' (5 m) between the ceiling and the top of the screen. This feature preserves architectural integrity by allowing usable space above the viewing area for camera or speaker placement. This unit is TAA compliant and features a 220V (50Hz) motor designed for export markets. The Myriad Reveal series offers versatile mounting for either ceiling or wall applications. For installation, the system provides built-in case leveling of ±.5" (12.7 mm) vertically and centering adjustability of ±6" (152.4 mm) horizontally. For control, this SKU includes built-in low voltage control, with various remote and controller options available separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 552 lbs (250.4 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 840236913084 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How much vertical adjustment does the SightLine cable drop allow?
The SightLine feature on the DL100171EL allows for a variable cable drop of up to 16' (5 m) between the ceiling and the top of the screen.
What mounting options are available for the Myriad Reveal series?
The Myriad Reveal series is designed for versatile installation and can be mounted in either ceiling or wall applications.
What is needed to control this screen?
This screen includes built-in low voltage control. Separate controllers such as the DL16522 (RF/BLE Remote) or DL16524 (Infrared Remote) can be added for operation.
Does this screen fit my 220-inch diagonal projection setup?
Yes, this specific DL100171EL model is a 220" (558.8 cm) diagonal screen with a width of 192" (487.7 cm) and a height of 108" (274.3 cm).
Can I use this for a TAA compliant project?
Yes, the DL100171EL is TAA compliant and manufactured in the US.
