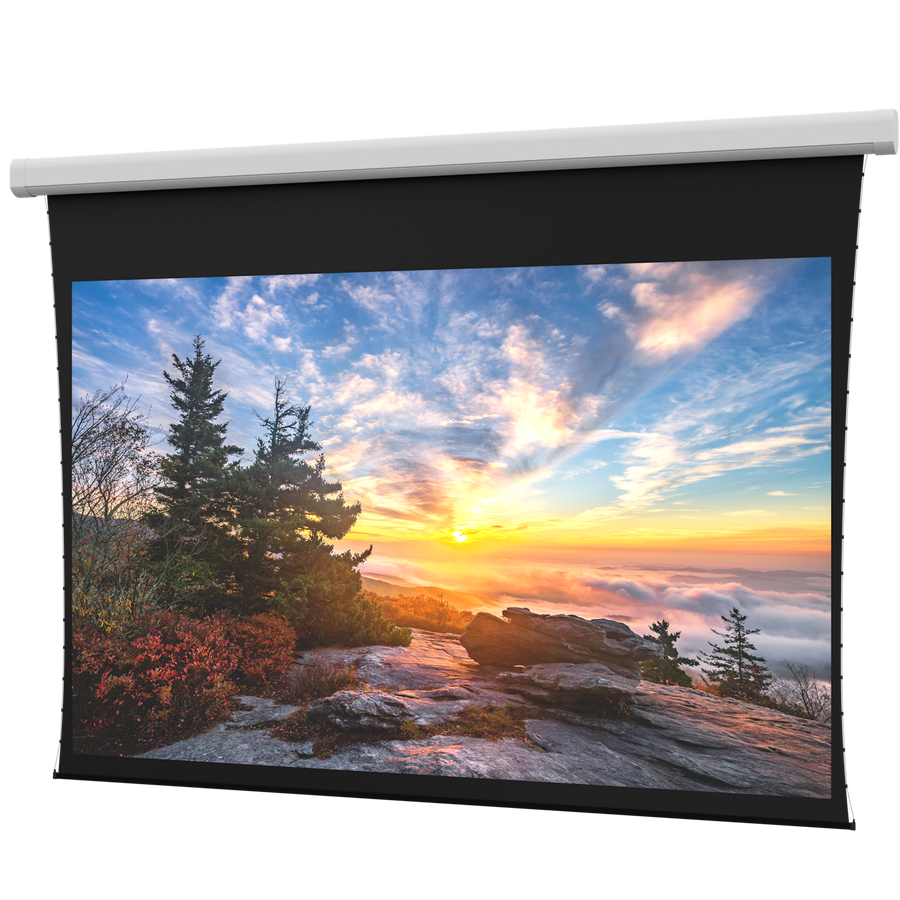

Da-Lite Myriad Reveal, 108" x 192" with Da-Mat - DL100122EL
Large venue electric projection screen, 108" x 192" (220" diagonal) with Da-Mat surface and standard black drop
The Da-Lite DL100122EL is a large venue electric projection screen measuring 108" x 192" (274.3 x 487.7 mm), providing a 220 in (558.8 cm) diagonal viewing area. This Myriad Reveal series model features a Da-Mat surface optimized for front projection in HDTV (16:9) formats. Designed for use in large meeting spaces, conference centers, lecture halls, and hotel ballrooms, this electric screen can be installed in either ceiling or wall applications. This specific SKU features a standard black drop and is configured with a 220V (50Hz) motor for export markets. This TAA compliant model offers built-in low voltage control and includes an adjustable bracket system to assist with installation. For vertical alignment, the system provides ±.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering to ensure the screen is perfectly positioned after mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 229.5" x 13" x 20.25" (582.9 x 33 x 51.4 cm) |
| Shipping Weight | 451 lbs (204.6 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236912117 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit my projection setup?
This DL100122EL model is designed for front projection with a 16:9 HDTV aspect ratio. It is suitable for large-scale environments like lecture halls or ballrooms.
What mounting options are available for the Myriad Reveal?
The Myriad Reveal series supports both ceiling and wall mounting. The installation includes adjustable brackets to help with horizontal centering and vertical leveling.
What is the difference between the standard drop and SightLine models?
The DL100122EL features a standard black drop. SightLine models offer a different aesthetic by eliminating the black border and providing an adjustable cable drop of up to 16' (5 m).
What extra controllers do I need to operate this screen?
You can add various control options, including Da-Lite Screen Controllers such as the DL16522 (RF/BLE) or DL16524 (Infrared), and PoE injector models like the DL16521.
What documentation is available for submittals?
Full technical details can be found in the Myriad Reveal Specification Sheet (PDF), while CAD and BIM files are available for architectural integration.
