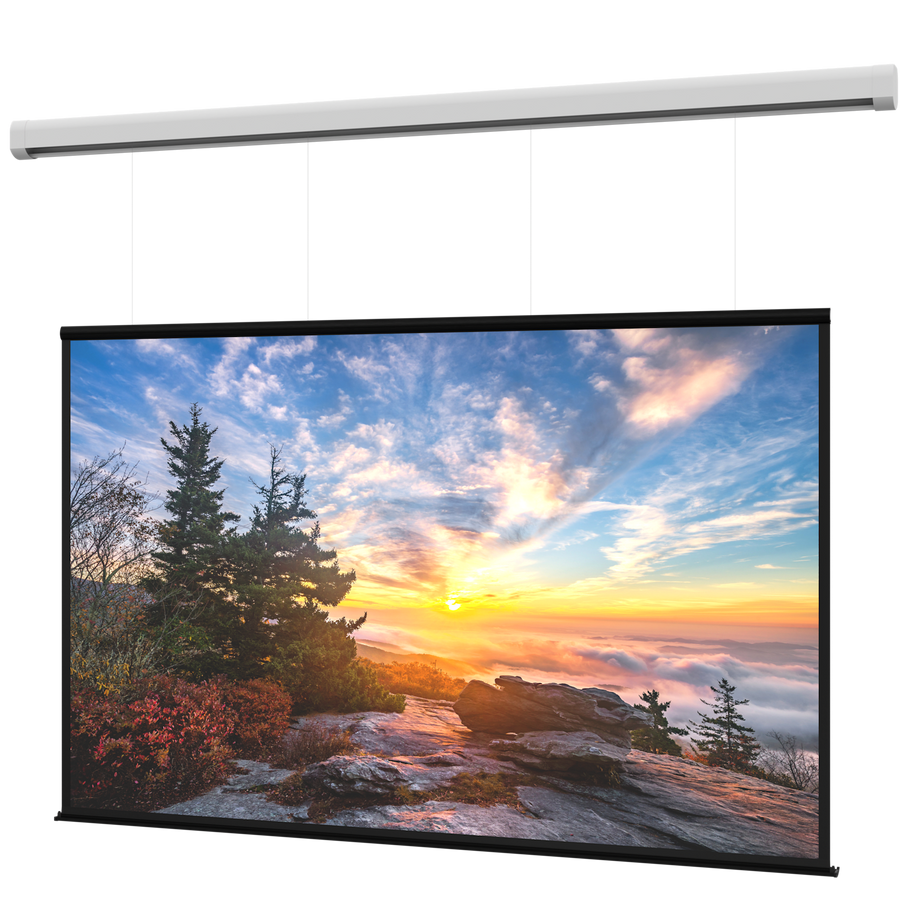

Da-Lite Myriad Reveal, 105" x 168" with Matte White - DL100207L
Electric non-tensioned projection screen, 105" x 168" Matte White surface, featuring SightLine cable drop technology
The Da-Lite DL100207L is a professional-grade Myriad Reveal electric projection screen designed for large venue applications such as lecture halls, conference centers, and hotel ballrooms. This specific model features a 105" x 168" (266.7 x 426.7 mm) non-tensioned Matte White surface, providing a wide 16:10 aspect ratio for front projection. It is engineered with SightLine technology, which utilizes an elegant cable drop to eliminate the traditional black border above the screen, allowing for a clean, waterfall aesthetic. This cable drop is fully adjustable up to a 16’ (5 m) vertical distance between the ceiling and the top of the screen, providing significant flexibility for installers managing architectural height requirements. This TAA compliant unit is built for both ceiling and wall mounting and utilizes a standard 120V (60Hz) motor. For wiring access, the end cap includes a convenient push button for easy entry. This model is ideal for environments where preserving visual space above the screen is critical for camera or speaker placement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 207.68" x 13" x 20.25" (527.5 x 33 x 51.4 cm) |
| Shipping Weight | 498 lbs (225.9 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913282 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite DL100207L work for my ceiling or wall installation?
Yes, the Myriad Reveal series is designed for both ceiling and wall mounting applications.
How much vertical adjustment does the SightLine cable drop allow?
The SightLine feature allows for a fully adjustable cable drop of up to 16' (5 m) between the ceiling and the top of the screen.
What kind of motor and control does this screen use?
This model features a standard 120V (60Hz) motor and includes built-in low voltage control.
What additional accessories are compatible with the DL100207L?
You can add various Da-Lite controllers, such as the DL15316 or the DL16523 which includes a PoE injector and RF remote.
Is this screen TAA compliant for government projects?
Yes, the DL100207L is TAA compliant and is manufactured in the US.
