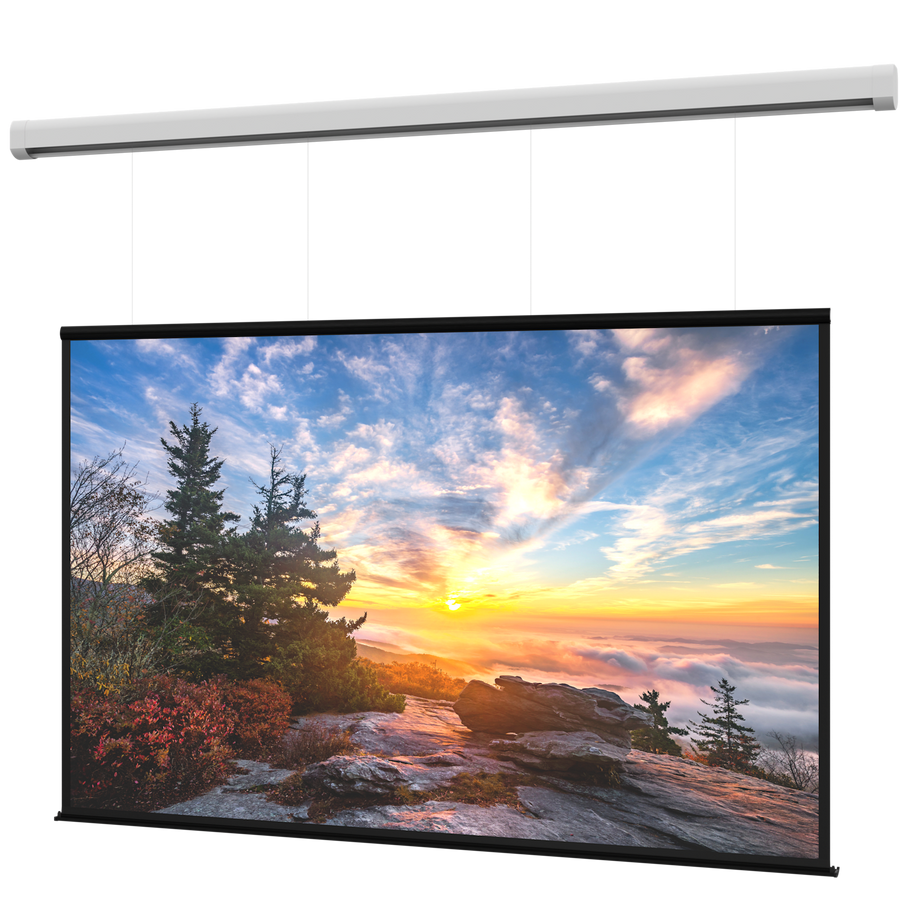

Da-Lite Myriad Reveal, 105" x 168" with Matte White - DL100207EL
Electric projection screen for large venues, 105" x 168" (198" diagonal) with SightLine cable drop and Matte White surface
The Da-Lite DL100207EL is an electric projection screen designed for large-venue applications such as lecture halls, conference centers, and houses of worship. This 105" x 168" (198" diagonal) screen features a 16:10 Wide screen format and utilizes a Matte White non-tensioned surface. Built with SightLine technology, this model incorporates a thin cable drop that can be adjusted up to 16' (5 m) between the ceiling and the top of the screen. This adjustable drop eliminates the black border typically seen above projection surfaces, providing a clean aesthetic and freeing up vertical space for speakers or cameras. The unit is engineered for both ceiling and wall mounting, featuring versatile brackets that allow for vertical leveling adjustments of ±0.5" (12.7 mm) and horizontal centering of ±6" (152.4 mm). This TAA compliant screen is designed for front projection and includes low voltage control. For export use, this model is equipped with a 220V (50Hz) motor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 207.68" x 13" x 20.25" (527.5 x 33 x 51.4 cm) |
| Shipping Weight | 498 lbs (225.9 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236913275 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite DL100207EL fit my ceiling height?
Yes, the SightLine cable drop feature allows the screen to be positioned at a variable distance up to 16' (5 m) from the ceiling to the top of the screen.
What additional controllers do I need for this screen?
Compatible control options include the DL15316 Screen Controller, or RF/BLE/Infrared options such as the DL16524 or DL16523 which include a PoE injector.
How do I adjust the screen level once it is mounted?
The mounting brackets include built-in adjustment capabilities for ±0.5" (12.7 mm) of vertical leveling and ±6" (152.4 mm) of horizontal centering.
Is this screen TAA compliant?
Yes, the DL100207EL is TAA compliant and is manufactured in the US.
Can I use this for rear projection?
No, this specific model is designed for front projection applications.
