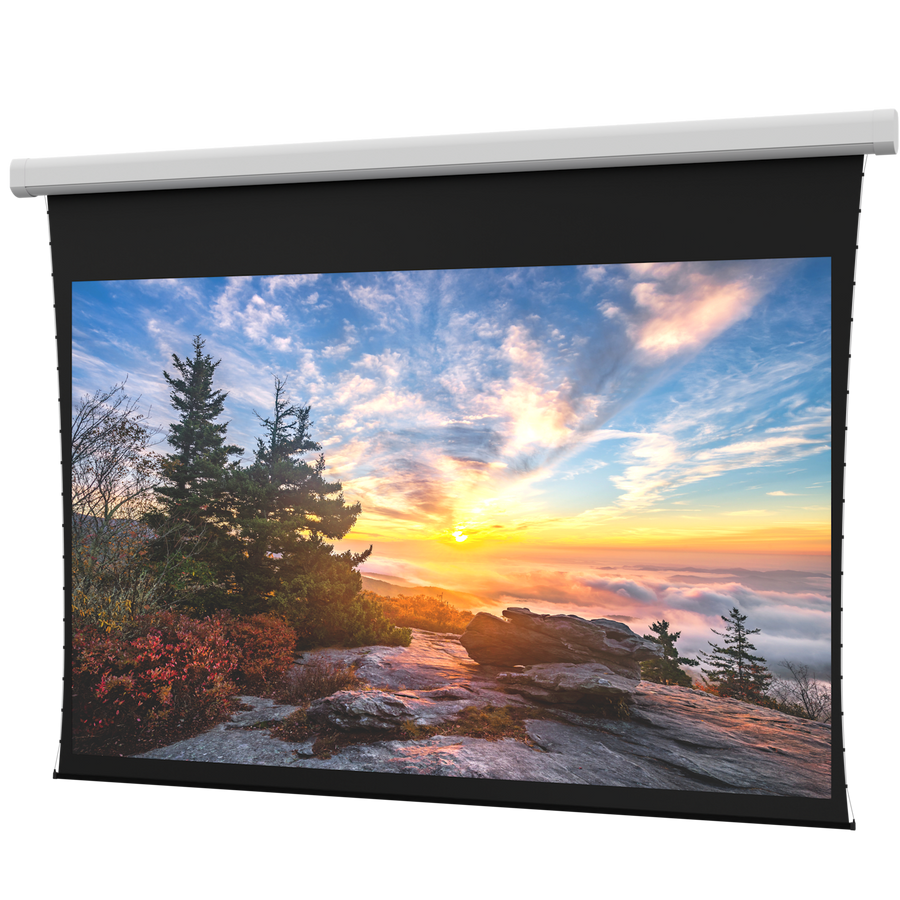

Da-Lite Myriad Reveal, 105" x 168" with HD Progressive 1.3 - DL100128EL
Large venue electric projector screen, 105" x 168" (198" diagonal) with HD Progressive 1.3 surface and 220V export motor
The Da-Lite Myriad Reveal DL100128EL is a large-format electric projection screen designed for high-impact visuals in expansive environments like hotel ballrooms, lecture halls, and houses of worship. This 198 in (502.9 cm) diagonal screen features a 16:10 Wide format with a 105 in (266.7 cm) height and 168 in (426.7 cm) width. It is outfitted with an HD Progressive 1.3 surface specifically engineered for front projection. This unit is configured with a 220V (50Hz) motor intended for export markets and includes built-in low voltage control. The design allows for versatile installation via ceiling or wall mounting. For installers, the Myriad Reveal series provides significant field adjustability, including a ±.5” (12.7 mm) vertical case leveling capability and ±6” (152.4 mm) horizontal centering. This specific model features a standard black drop, which is achieved via a weighted bar that blends into the border when the screen is deployed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 205" x 13" x 20.25" (520.7 x 33 x 51.4 cm) |
| Shipping Weight | 402 lbs (182.3 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236912414 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the exact dimensions of the DL100128EL screen surface?
This Myriad Reveal model has a screen height of 105 in (266.7 cm) and a width of 168 in (426.7 cm), totaling a 198 in (502.9 cm) diagonal.
Can this screen be installed in a ceiling or on a wall?
Yes, the Myriad Reveal series is designed for both ceiling and wall mounting applications to suit different architectural requirements.
What type of motor and control does this screen use?
This SKU is equipped with a 220V (50Hz) motor for export and features built-in low voltage control for integrated system operation.
How much adjustment is available during installation?
The Myriad Reveal offers ±.5” (12.7 mm) of vertical case leveling and ±6” (152.4 mm) of horizontal centering for precise placement.
Is this screen TAA compliant for government contracts?
Yes, the DL100128EL is TAA compliant, making it suitable for projects requiring specific trade agreement compliance.
