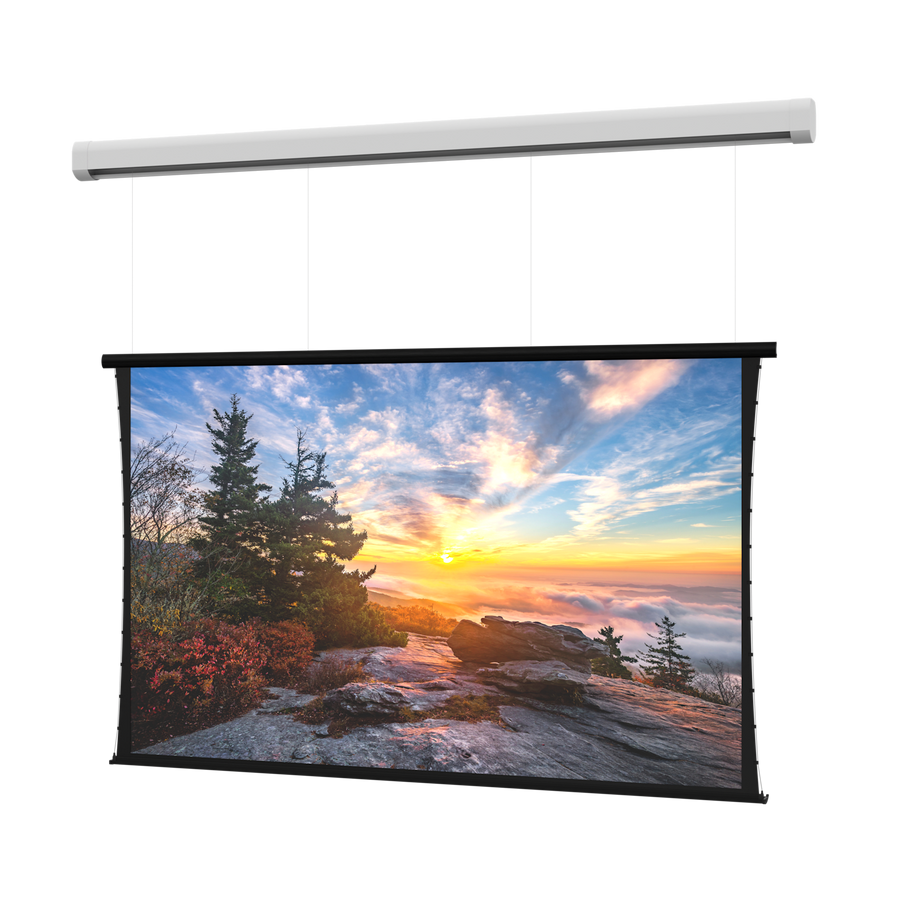

Da-Lite Myriad Reveal, 105" x 168" with HD Progressive 1.0 - DL100174EL
Electric SightLine projection screen, 105" x 168" with HD Progressive 1.0 surface, featuring adjustable cable drop
The Da-Lite Myriad Reveal DL100174EL is a large venue electric projection screen designed for professional environments like lecture halls, conference centers, and ballrooms. This 105" x 168" (426.7 x 266.7 mm) screen features an HD Progressive 1.0 surface in a 16:10 wide aspect ratio. It utilizes SightLine technology, which employs a thin cable drop to elegantly suspend the screen, eliminating the traditional black drop area and providing up to 16’ (5 m) of adjustable vertical placement. This allows installers to preserve architectural interests or accommodate camera and speaker placement above the viewing area. This TAA compliant model is designed for both ceiling and wall mounting applications. The system includes built-in low voltage control and an innovative weighted bar that functions as a black closure door when the screen is deployed, rotating to white when retracted to match the waterfall case aesthetic. For installation, the system offers vertical centering adjustability of ±6” (152.4 mm) and case leveling of ±.5” (12.7 mm). This export model features a 220V (50Hz) motor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 207.68" x 13" x 20.25" (527.5 x 33 x 51.4 cm) |
| Shipping Weight | 498 lbs (225.9 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236913374 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How much vertical adjustment does the SightLine cable drop provide for the DL100174EL?
The SightLine feature allows for a fully adjustable cable drop of up to 16’ (5 m) between the ceiling and the top of the screen.
What mounting options are available for this Myriad Reveal screen?
The DL100174EL is designed for both ceiling and wall mounting applications in large venues.
What control accessories are compatible with the DL100174EL?
You can add various controllers, including the DL16522 RF (BLE) remote, DL16524 Infrared remote, or DL15316 screen controller.
Is the DL100174EL suitable for TAA compliant projects?
Yes, this product is TAA compliant and is manufactured in the US.
What is the aspect ratio of this 105" x 168" screen?
This specific model features a 16:10 wide screen format with an HD Progressive 1.0 surface.
