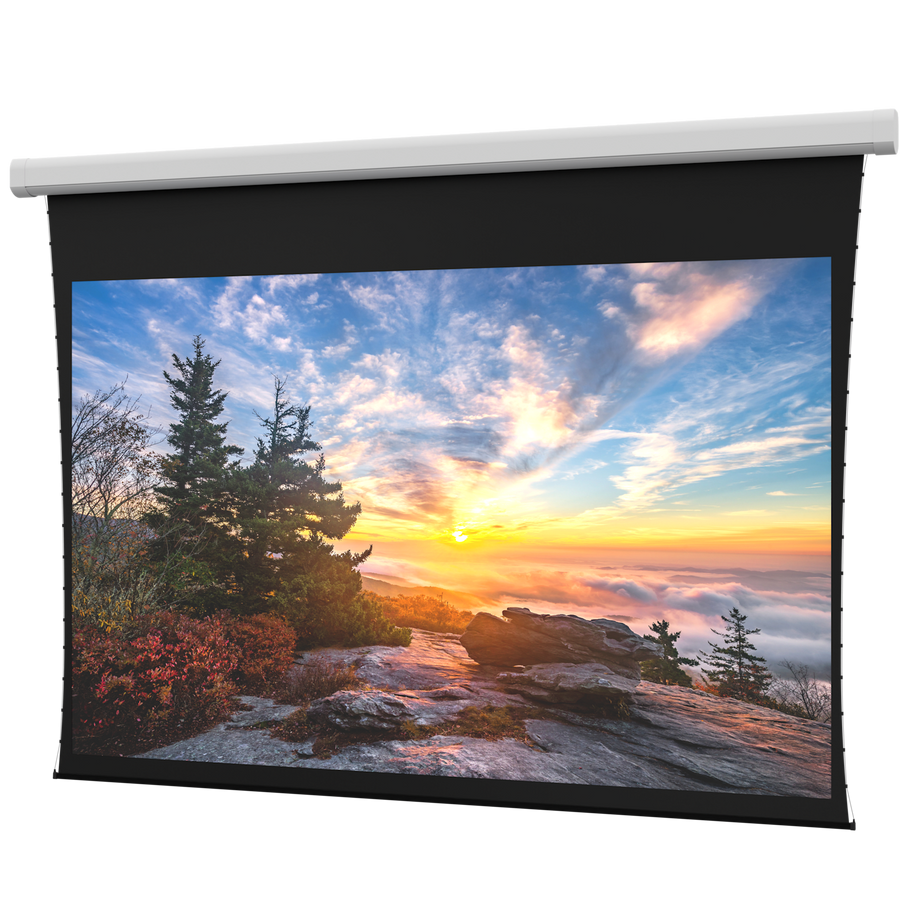

Da-Lite Myriad Reveal, 105" x 168" with HD Progressive 1.0 - DL100126EL
Electric projection screen for ceiling or wall mounting, 105" x 168" format with HD Progressive 1.0 surface
The Da-Lite DL100126EL is a Myriad Reveal series electric projection screen designed for large venue applications such as conference centers, lecture halls, and hotel ballrooms. This 105" x 168" (426.7 x 266.7 mm) screen features a Wide 16:10 aspect ratio and is equipped with an HD Progressive 1.0 high-resolution surface. This specific model is built for export, featuring a 220V (50Hz) motor. Installation is streamlined through adjustable brackets that allow for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering during the mounting process. The unit is TAA compliant and can be installed in either ceiling or wall orientations. This model utilizes a Standard Black Drop configuration. For specialized control, it includes built-in low voltage control and features a convenient push button on the end cap to allow easy access to the wiring during setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 205" x 13" x 20.25" (520.7 x 33 x 51.4 cm) |
| Shipping Weight | 402 lbs (182.3 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236912391 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What mounting options are available for the DL100126EL?
The Myriad Reveal DL100126EL can be installed in either a ceiling or wall configuration using its adjustable mounting brackets.
What is the required motor voltage for this model?
This specific SKU is equipped with a 220V (50Hz) motor intended for export markets.
How do I adjust the screen level during installation?
The integrated brackets allow for vertical case leveling within a ±0.5" (12.7 mm) range and horizontal centering of up to ±6" (152.4 mm).
Is the DL100126EL TAA compliant?
Yes, this model is TAA compliant, making it suitable for projects requiring Trade Agreements Act adherence.
Which control systems are compatible with this screen?
The screen features built-in low voltage control and is compatible with Da-Lite controllers like the DL16524 (Infrared) or the DL16522 (RF/BLE).
