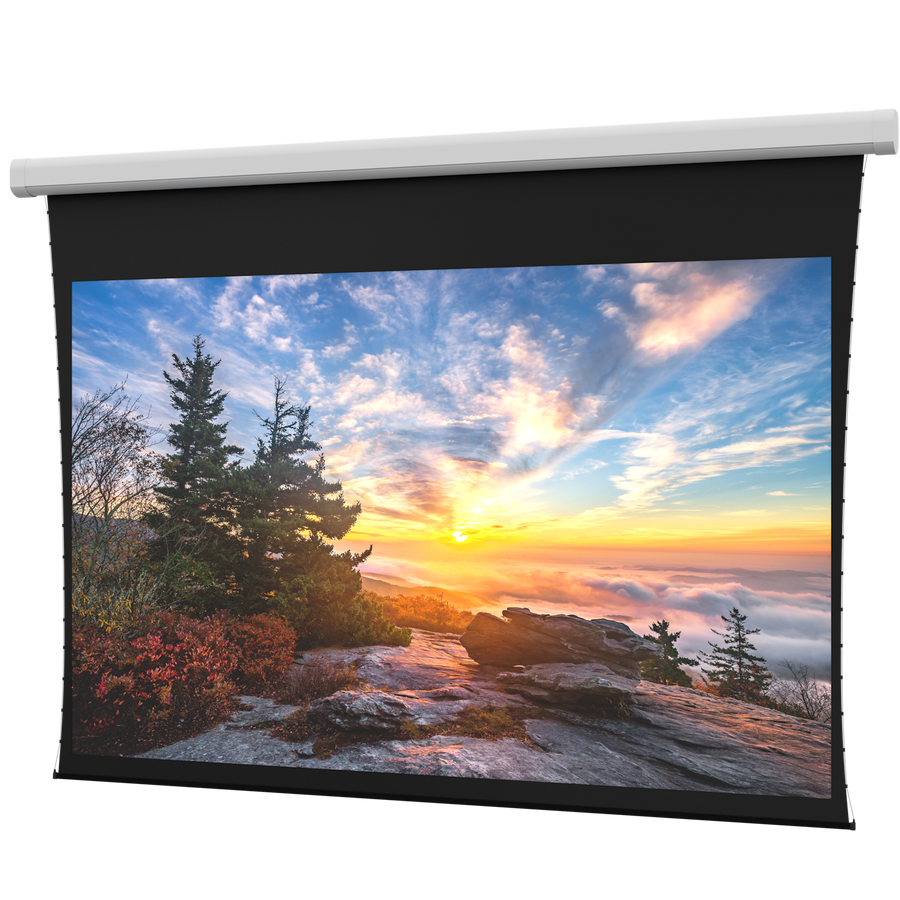

Da-Lite Myriad Reveal, 105" x 168" with Da-Tex - DL100131L
Large venue electric rear projection screen, 105" x 168" size with Da-Tex surface and standard black drop
The Da-Lite DL100131L is a professional-grade electric rear projection screen from the Myriad Reveal series, designed for large venue applications. This 105" x 168" (198" diagonal) screen features a wide 16:10 format and is surfaced with Da-Tex for standard resolution rear projection. Designed for versatile installation, this model can be mounted on either the ceiling or the wall. The unit is equipped with a standard 120V (60Hz) motor and includes built-in low voltage control for integrated system operation. This SKU features a standard black drop. For installers requiring high-level procurement compliance, this product is TAA compliant. This electric screen provides a reliable solution for lecture halls, conference centers, large classrooms, houses of worship, and hotel ballrooms where high-quality rear projection is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 205" x 13" x 20.25" (520.7 x 33 x 51.4 cm) |
| Shipping Weight | 402 lbs (182.3 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 840236912209 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite DL100131L fit my rear projection setup?
Yes, this screen is specifically configured for rear projection using a Da-Tex surface in a 16:10 wide aspect ratio.
What mounting requirements are needed for this Myriad Reveal screen?
The Myriad Reveal series provides adjustable brackets that allow for either wall or ceiling mounting. It also includes built-in case leveling of ±.5" (12.7 mm) vertically and centering adjustability of ±6" (152.4 mm) horizontally.
What electrical requirements are necessary for installation?
This model features a standard 120V (60Hz) motor and includes built-in low voltage control for integration into your control system.
What accessories are available for controlling this screen?
You can add various control options, including RF (BLE) remotes, Infrared remotes, or PoE-based controllers from the Da-Lite accessory line.
How can I manage the cable drop for this screen?
This standard model features a standard black drop; however, SightLine models in the Myriad series offer fully adjustable cable drops up to 16' (5 m).
