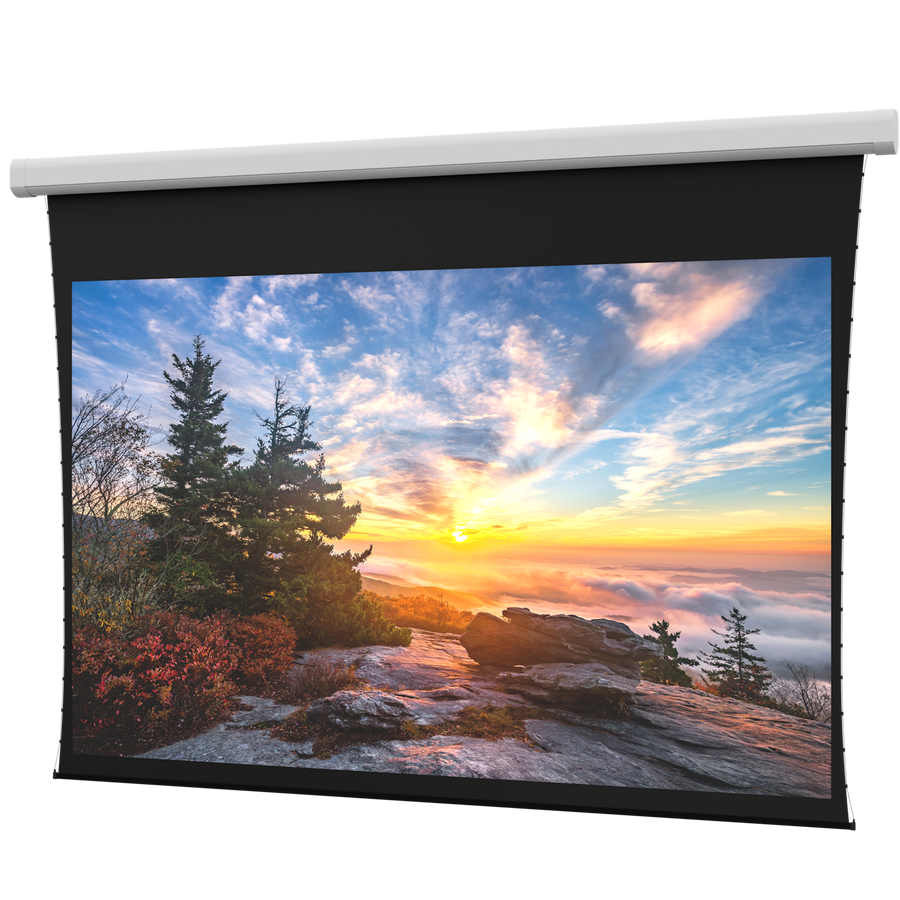

Da-Lite Myriad Reveal, 105" x 168" with Da-Mat - DL100130EL
Electric 198" diagonal Myriad Reveal screen with Da-Mat surface, designed for large venue front projection in ceiling or wall applications
The Da-Lite DL100130EL is a Myriad Reveal series electric screen designed for large venue environments, such as lecture halls, conference centers, and hotel ballrooms. This 198 in (502.9 cm) diagonal screen features a 105 in (266.7 cm) height and 168 in (426.7 cm) width, providing a wide 16:10 format ideal for front projection. It comes equipped with a Da-Mat surface and a standard black drop. This specific model is configured with a 220V (50Hz) motor for export and includes built-in low voltage control. For installation flexibility, the mounting brackets allow for vertical leveling adjustment of ±.5" (12.7 mm) and horizontal centering adjustment of up to ±6" (152.4 mm). This TAA compliant solution is built for professional high-impact projection in large-scale spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 205" x 13" x 20.25" (520.7 x 33 x 51.4 cm) |
| Shipping Weight | 402 lbs (182.3 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236912438 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite Myriad Reveal screen fit my installation space?
This model has a screen width of 168 in (426.7 cm) and a height of 105 in (266.7 cm). It is designed for ceiling or wall applications in large venues like lecture halls or ballrooms.
What mounting adjustments are available for the DL100130EL?
The mounting brackets provide ±.5" (12.7 mm) of vertical case leveling and up to ±6" (152.4 mm) of horizontal centering adjustment to ensure proper alignment.
What voltage motor is included with this SKU?
This specific export model features a 220V (50Hz) motor and includes built-in low voltage control for operation.
Does this screen include a remote control or additional controllers?
This unit has built-in low voltage control. For wireless or wired remote options, you can add compatible accessories like the DL16522 RF (BLE) remote or the DL15316 controller.
Is this product TAA compliant for government contracts?
Yes, the DL100130EL is TAA compliant and is manufactured in the US.
