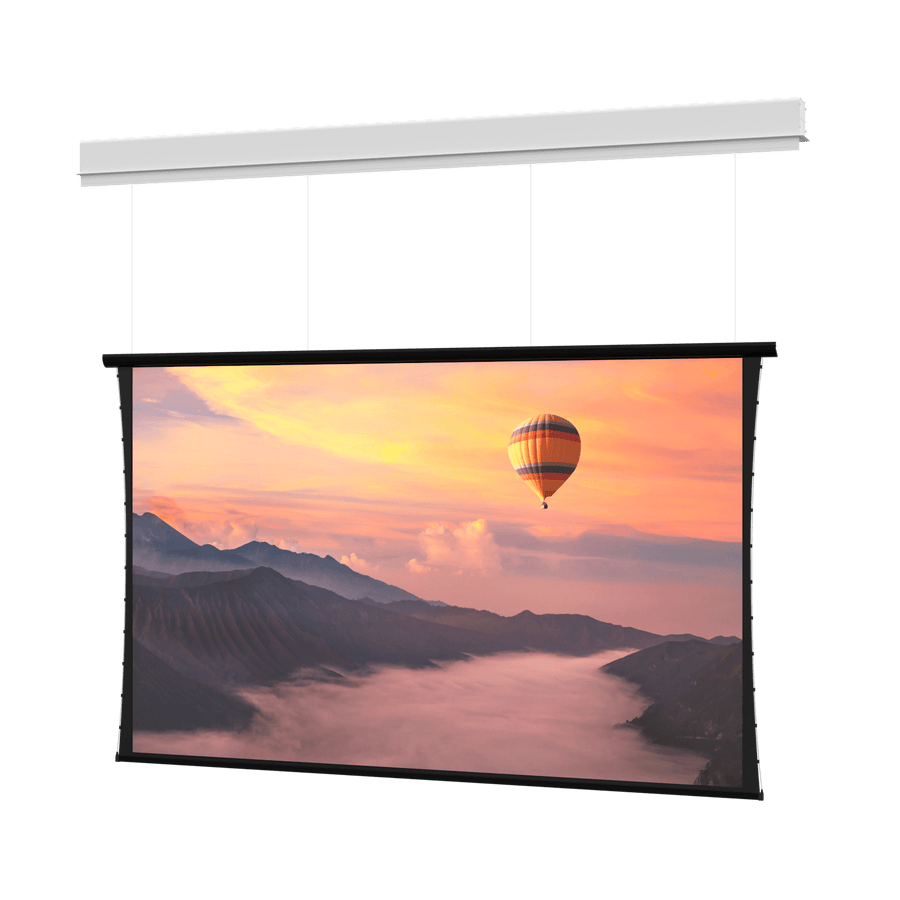

Da-Lite Myriad Conceal, 99" x 176" with Parallax Stratos 1.0 - DL100266ELF
Ceiling recessed electric screen with 16:9 format, Parallax Stratos 1.0 ALR surface, and SightLine cable drop
The DL100266ELF is a Myriad Conceal series ceiling recessed electric screen measuring 99" x 176" (251.5 cm x 447 cm). This 202" diagonal screen features a Parallax Stratos 1.0 surface, which provides Ambient Light Rejection (ALR) and high resolution for front projection applications. Designed for a clean architectural look, this series includes ceiling trim to conceal the rough opening, eliminating the need for secondary trim work after installation. This specific unit is the surface and roller assembly only; the case and box must be ordered separately. It utilizes a SightLine cable drop system, which elegantly suspends the screen surface to eliminate black drop, allowing for variable vertical placement up to 16' (5 m) between the ceiling and the top of the screen. This unit is configured for a 220V (50Hz) motor for export markets and includes low voltage control. It is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included with the DL100266ELF?
This SKU includes the surface and roller assembly only. The screen case and box must be ordered separately.
Does this screen require additional trim work?
No, the Myriad Conceal series is designed with ceiling trim in place to conceal the rough opening once installed.
How does the SightLine feature work?
The SightLine cable drop elegantly suspends the surface to eliminate black drop and allows for variable vertical placement between the ceiling and the top of the screen up to 16' (5 m).
What type of projection is required?
This is a front projection screen featuring a Parallax Stratos 1.0 Ambient Light Rejecting (ALR) surface.
What voltage is used for this motor?
This specific model is configured with a 220V (50Hz) motor for export applications.
