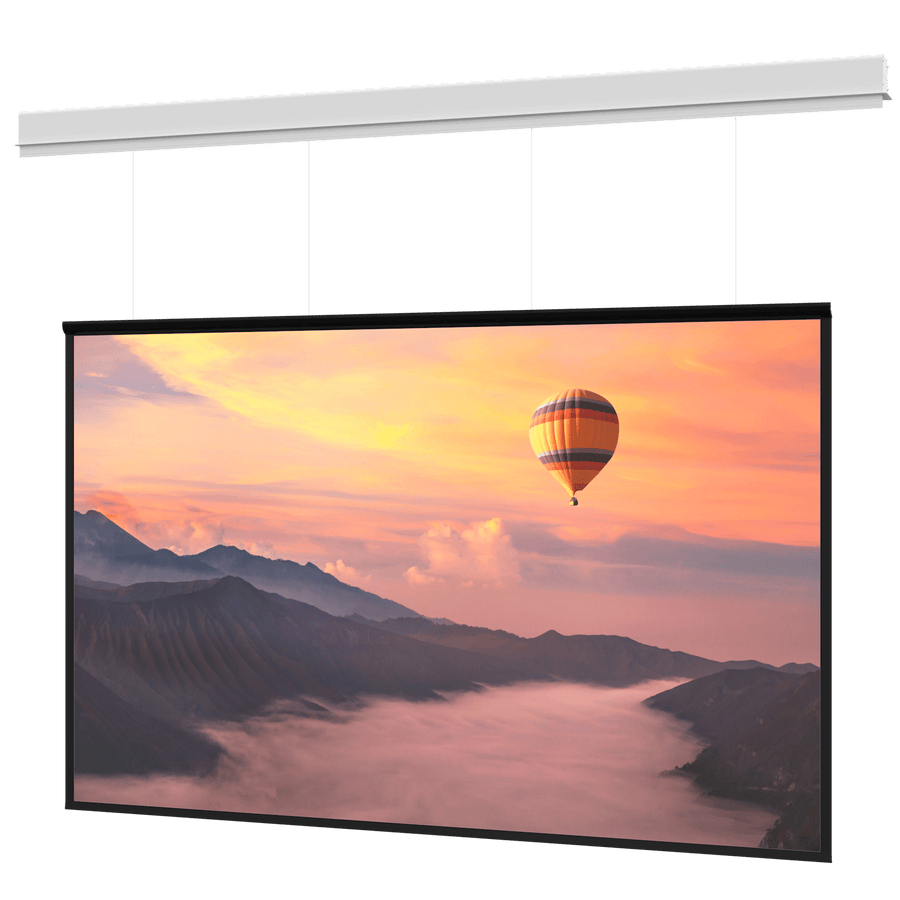

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100315LF
Ceiling recessed electric projection screen with SightLine cable drop, 99" x 176" matte white non-tensioned surface
The Da-Lite DL100315LF is a recessed Myriad Conceal series electric projection screen designed for high-end ceiling installations in professional environments. This specific SKU features a 99" x 176" (251.5 cm x 447 cm) non-tensioned matte white surface designed for 16:9 HDTV formats and front projection applications. It utilizes the SightLine cable drop system, which elegantly suspends the screen to eliminate the black drop typically seen above the image area, preserving architectural interest and allowing for speaker or camera placement in the gap. This model includes the standard 120V (60Hz) motor and features built-in low voltage control for integrated automation. Because this is the surface and motor assembly only, the case and box must be ordered separately to complete the installation. This TAA compliant assembly is manufactured in the US and is an ideal solution for large meeting spaces, conference centers, and lecture halls where a clean, recessed aesthetic is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included with the Da-Lite DL100315LF?
This SKU is the surface and motor assembly only; the screen case and box must be ordered separately to complete the installation.
How does the SightLine cable drop work for this screen?
The SightLine system suspends the screen surface to eliminate the black border above the image, and cables accommodate a standard drop distance of up to 16' (5 m) between the ceiling and the top of the screen.
What control options are compatible with this screen?
The DL100315LF includes built-in low voltage control and is compatible with accessories like the Da-Lite DL16622 Smart Low Voltage Wall Switch or the DL16521 Screen Controller with PoE Injector.
What is the actual size of the projection area?
The screen features a 99" x 176" (251.5 cm x 447 cm) surface area, providing a 202" (513.1 cm) diagonal for 16:9 HDTV content.
Is this screen suitable for plenum environments?
Yes, this series offers UL plenum rated cases for specialized installation requirements.
