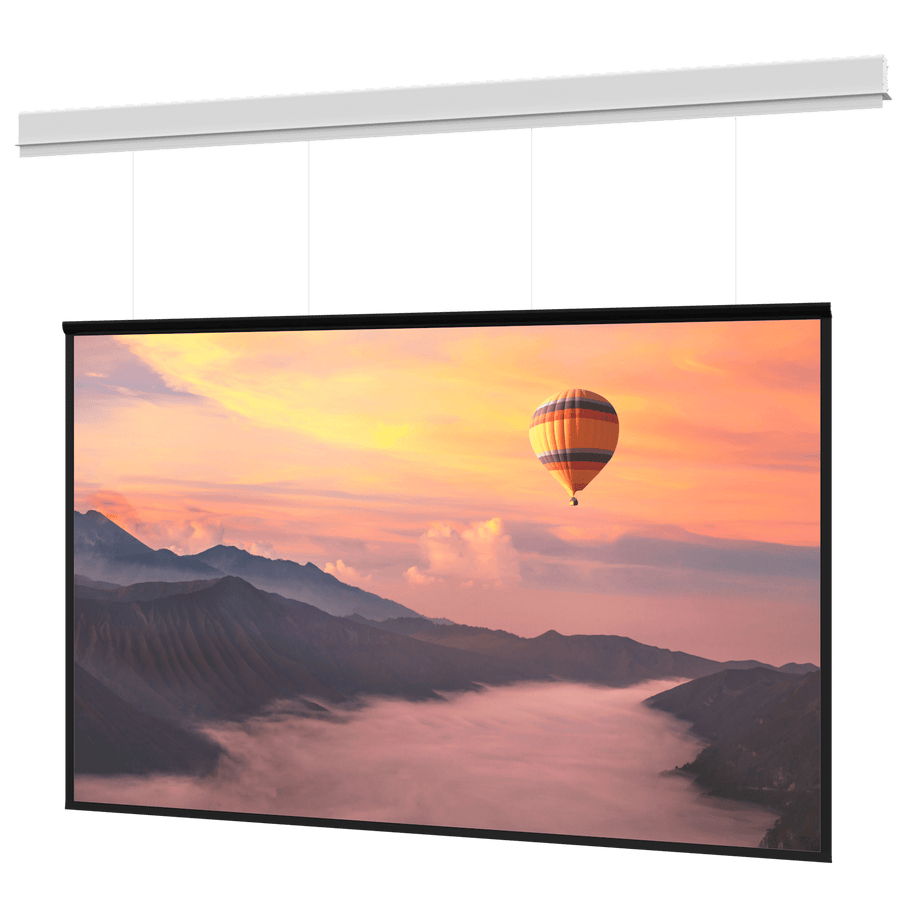

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100315L
Ceiling recessed electric screen with 99" x 176" Matte White surface and SightLine cable drop for large venues
The Da-Lite DL100315L is a Myriad Conceal ceiling recessed electric screen designed for large venue applications like lecture halls, conference centers, and ballrooms. This 16:9 HDTV format screen features a 202" diagonal measurement with a 99" x 176" projection area on a non-tensioned Matte White surface. It utilizes SightLine cable drop technology, which suspends the screen surface to eliminate the black drop typically seen in standard installations. This feature allows for a variable vertical placement of the screen, accommodating a standard drop distance of up to 16' (5 m) between the ceiling and the top of the screen. The unit is built for ceiling recessed installation and includes built-in low voltage control for seamless integration. For global project rollouts, this TAA compliant model is manufactured in the US. This complete screen assembly includes a standard 120V (60Hz) motor and a standard white powder-coated aluminum finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236916207 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen work with my existing ceiling setup?
The DL100315L is designed for ceiling recessed applications and includes integrated trim to conceal the rough opening, eliminating the need for additional finish trim.
How does the SightLine cable drop feature work?
SightLine technology suspends the screen surface to eliminate the black drop. It allows for variable vertical placement between the ceiling and the screen top up to 16' (5 m) (standard).
What control options are available for this Myriad Conceal screen?
This SKU features built-in low voltage control. Compatible controllers include the DL16522 RF (BLE) remote, the DL16524 Infrared remote, and the DL16523 which includes a PoE injector.
What is the difference between this and a tensioned Myriad model?
This specific SKU is a non-tensioned model with a standard 2" (5 cm) black drop. Tensioned models are available with 12" (30.5 cm) of black drop.
Which documents are available for installation and submittals?
You can access the Myriad Conceal Specification Data Sheet, the installation instructions, and BIM or CAD models via the documentation links provided.
