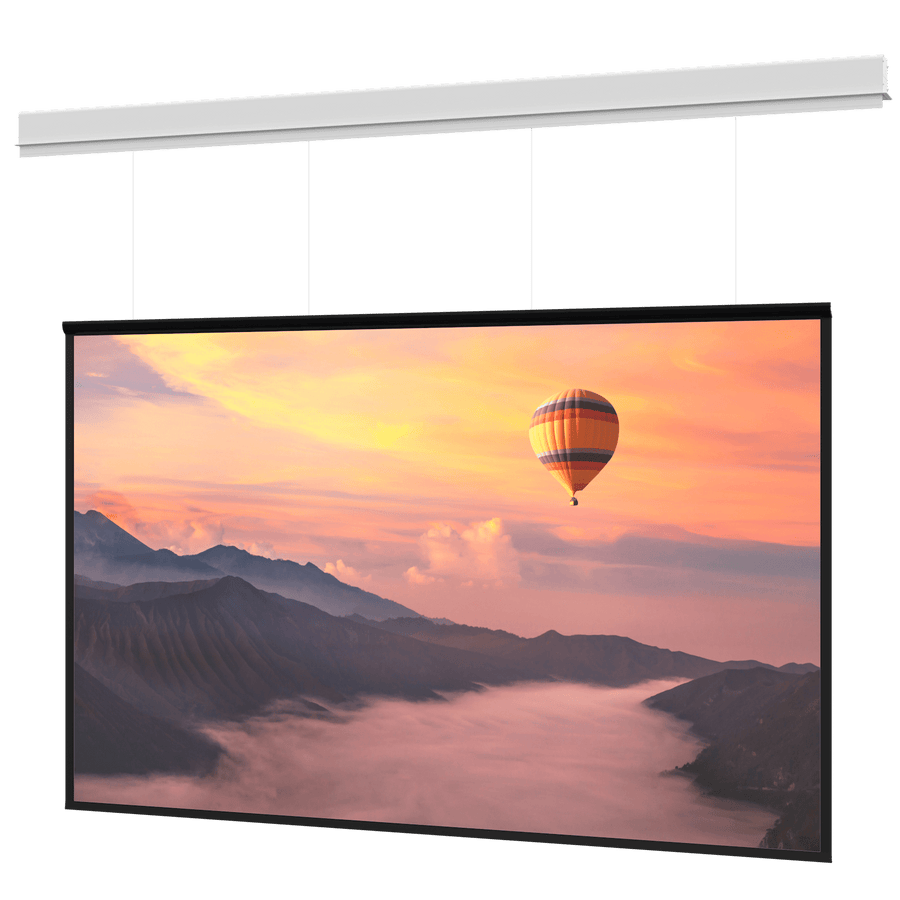

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100315ELB
Ceiling recessed electric screen, 99" x 176" with SightLine cable drop and Matte White non-tensioned surface
The Da-Lite Myriad Conceal DL100315ELB is a ceiling recessed electric projection screen designed for large-format front projection applications. This 16:9 HDTV format screen features a 202" (513.1 cm) diagonal, with a height of 99" (251.5 cm) and a width of 176" (447 cm). It utilizes SightLine technology, a thin cable drop that suspends the screen surface to eliminate the black drop typically found above the viewing area. This feature creates usable space above the screen for the placement of cameras or speakers. This specific model is a non-tensioned version with a Matte White surface. It is built for international use with a 220V (50Hz) motor for export. For installers, the Myriad Conceal series allows for a two-stage installation: the case can be installed during the rough-in stage, while the screen surface assembly is completed during the finishing stage. This model is TAA compliant and the case is UL Plenum rated.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions of the DL100315ELB screen?
The screen has a width of 176" (447 cm), a height of 99" (251.5 cm), and a 202" (513.1 cm) diagonal.
Can I install the screen case during the construction phase?
Yes, the Myriad Conceal series supports a two-stage installation where the screen case is installed during rough-in and the surface is installed during finishing.
Does this screen require a specific motor voltage?
This SKU is configured with a 220V (50Hz) motor intended for export use.
What is the benefit of the SightLine cable drop?
SightLine technology elegantly suspends the surface to eliminate the black drop above the screen, creating space for speaker or camera placement.
What accessories are compatible with this Myriad Conceal screen?
Compatible controls include the DL16522 RF (BLE) remote, the DL16524 Infrared remote, and the DL16622 Smart Low Voltage Wall Switch.
