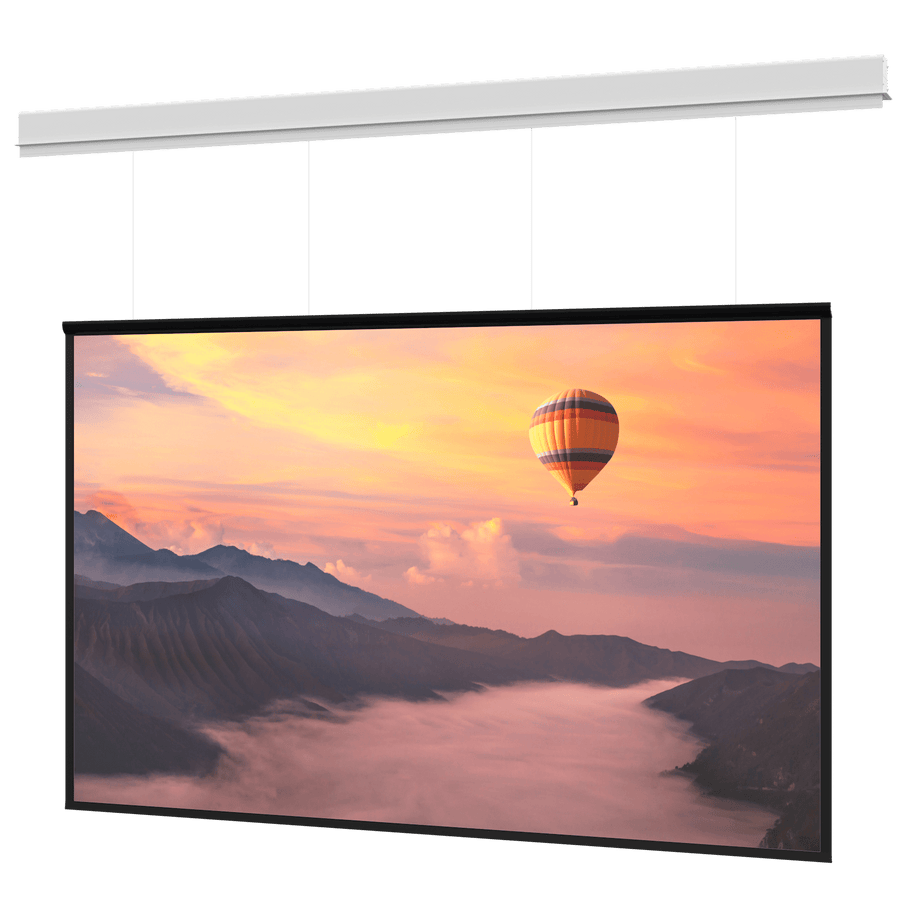

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100315EL
99" x 176" ceiling recessed electric screen with Matte White surface and SightLine cable drop for large venue use
The Da-Lite DL100315EL is a large venue, ceiling recessed electric projection screen measuring 99" x 176" (251.5 x 447 mm) with a 202" (513.1 cm) diagonal. This unit features a Matte White non-tensioned surface and is designed for front projection in 16:9 HDTV formats. This model utilizes Da-Lite's SightLine cable drop technology, which elegantly suspends the screen surface to eliminate the black drop typically found above the viewing area. This feature provides variable vertical placement for the screen, accommodating drop distances between the ceiling and the top of the screen of up to 16’ (5 m). Because it is a non-tensioned model, it includes a standard 2" (5 cm) black drop. The screen includes built-in low voltage control and is powered by a 220V (50Hz) motor designed for export. This TAA-compliant product is ideal for large meeting spaces, lecture halls, hotel ballrooms, and conference centers where architectural aesthetics are a priority.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 204.5" x 13" x 20" (519.4 x 33 x 50.8 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236915590 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite DL100315EL fit my ceiling height?
Yes, the SightLine cable drop allows for variable vertical placement with a drop distance between the ceiling and the top of the screen of up to 16’ (5 m).
What is the difference between this and a tensioned Myriad screen?
This SKU is a non-tensioned model featuring a 2" (5 cm) black drop, whereas tensioned models feature 12" (30.5 cm) of black drop.
What additional accessories do I need for control?
You can add a Da-Lite Screen Controller, such as the DL16521 (PoE Injector version) or the DL16523 (RF Remote and PoE Injector version).
What mounting requirements are needed for the Myriad Conceal?
This is a ceiling recessed application designed with ceiling trim in place to conceal the rough opening, eliminating the need for additional trim work.
Which installation documents are available for submittals?
You can access the Myriad Conceal Specification Data Sheet or the Myriad Conceal CAD Models for your technical submittals.
