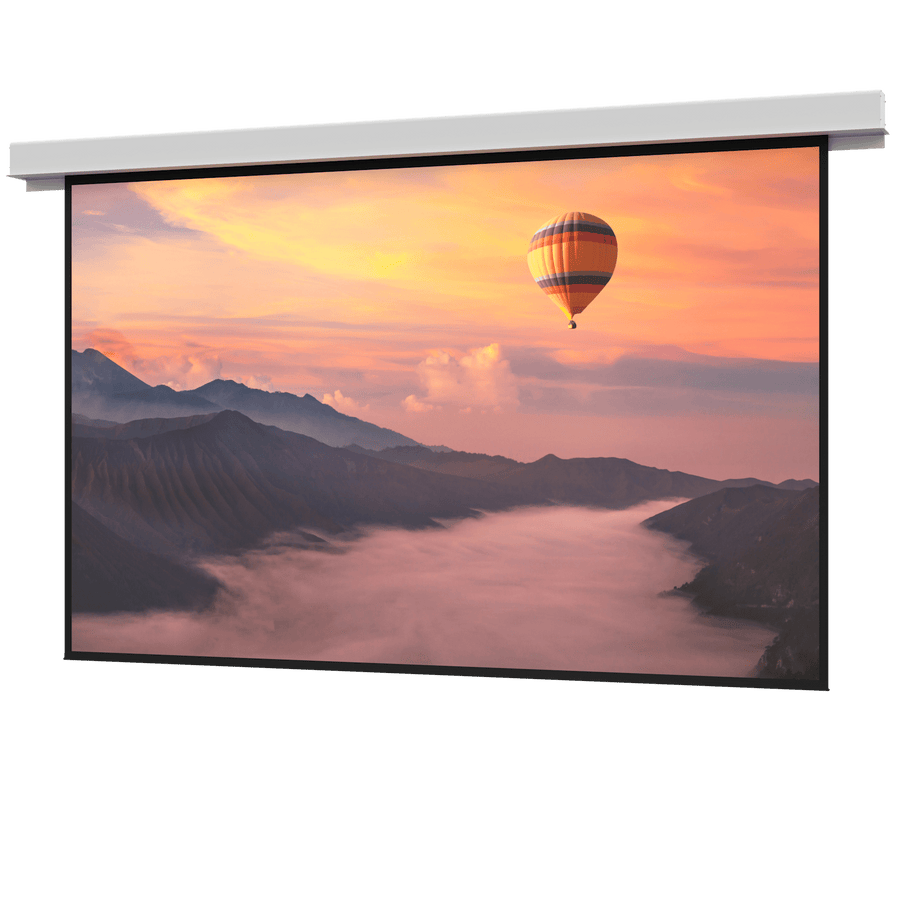

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100308LF
Recessed ceiling projection screen with 99" x 176" matte white surface and 16:9 HDTV format
The Da-Lite DL100308LF is a Myriad Conceal series ceiling recessed electric screen designed for front projection. This specific configuration features a 99" x 176" (251.5 x 447 mm) screen area with a 202" (513.1 cm) diagonal. It utilizes a non-tensioned Matte White surface in a 16:9 HDTV format, providing standard resolution for professional environments. This SKU is a Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately to complete the installation. Built for seamless integration, the Myriad Conceal series is designed with ceiling trim to hide the rough opening, eliminating the need for additional finish trim. This unit features a standard black drop, which for non-tensioned models is 2" (5 cm). It operates via a standard 120V (60Hz) motor and includes built-in low voltage control. This product is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 419 lbs (190.1 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included in the DL100308LF package?
This SKU is the Surface, Roller, and Motor Assembly Only. The case and box must be ordered separately to complete the assembly.
What accessories are needed for control?
You can add control via the DL16522 RF (BLE) remote, the DL16524 infrared remote, or the DL15316 Screen Controller.
How does the black drop work on this model?
As a non-tensioned model, this screen features a standard 2" (5 cm) black drop.
Is this screen suitable for recessed ceiling installation?
Yes, it is designed for ceiling recessed applications and includes trim to hide the rough opening once installed.
Which document is needed for submittals?
The Myriad Conceal Specification Data Sheet (PDF) is available in the resources for technical submittals.
