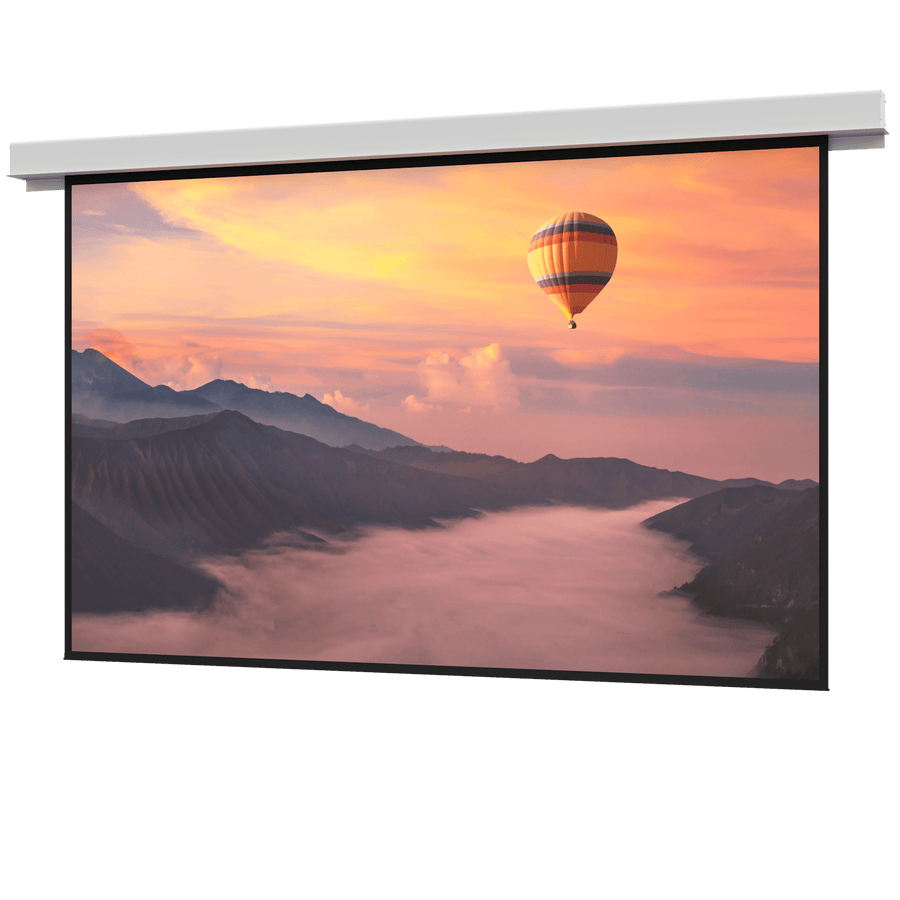

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100308ELF
Ceiling recessed electric screen, 99" x 176" (202" diagonal), Matte White non-tensioned surface, for front projection
The Da-Lite DL100308ELF is a ceiling recessed electric screen designed for high-impact environments like lecture halls, conference centers, and hotel ballrooms. This 99" x 176" (202" diagonal) unit features a Matte White non-tensioned surface optimized for front projection in a 16:9 HDTV format. This specific SKU is a Surface, Roller, and Motor Assembly only; the case/box must be ordered separately. It is configured with a standard black drop and utilizes a 220V (50Hz) motor for export markets. This TAA compliant screen includes built-in low voltage control for seamless integration into professional AV systems. Because this is a non-tensioned model, it features a 2" (5 cm) standard black drop. The Myriad Conceal series allows for a two-stage installation, where the screen case is installed during the rough-in construction stage and the surface assembly is completed during the finishing stage, protecting the screen from construction debris.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 419 lbs (190.1 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included with the DL100308ELF SKU?
This SKU consists of the surface, roller, and motor assembly only. The screen case/box must be ordered separately for a complete installation.
What type of projection and surface does this screen use?
This model is designed for front projection using a non-tensioned Matte White surface in a 16:9 HDTV format.
How does the installation process work for Myriad Conceal screens?
The series offers a two-stage installation. The screen case can be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage.
Can I control this screen with a remote or wall switch?
Yes, this unit features built-in low voltage control. Compatible controllers include the Da-Lite DL16524 Infrared Remote or the Da-Lite DL16522 RF (BLE) Remote.
What is the motor voltage for this specific model?
The DL100308ELF is equipped with a 220V (50Hz) motor specifically for export applications.
