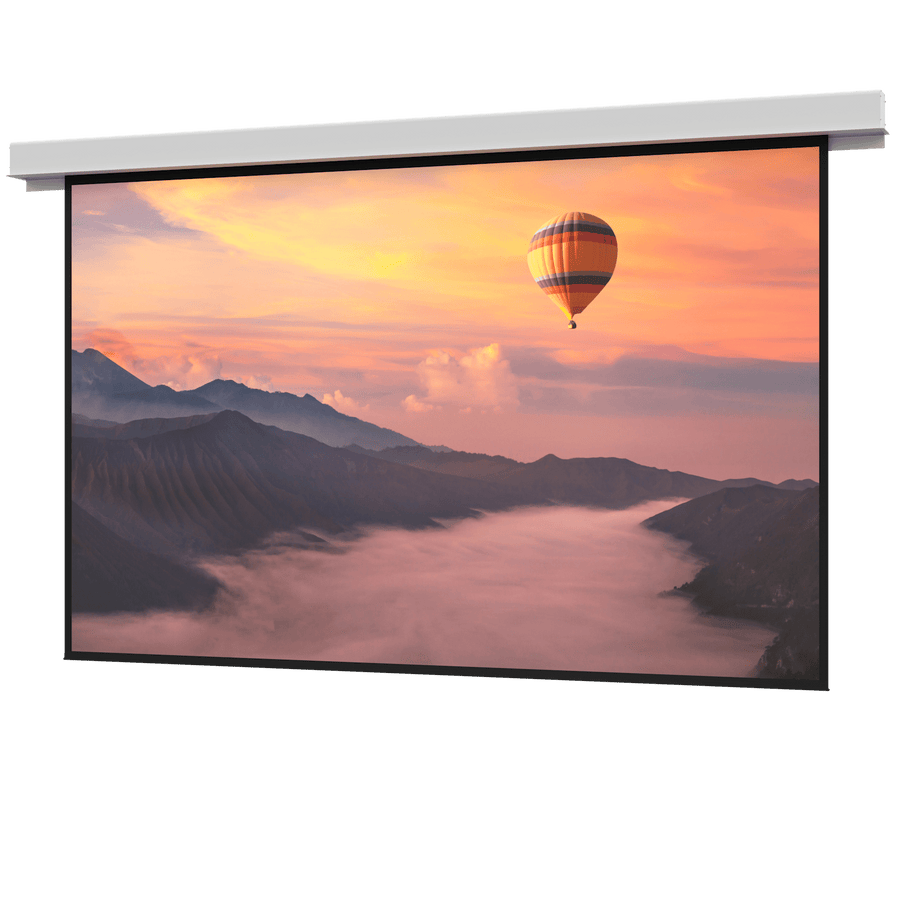

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100308ELB
99" x 176" ceiling recessed electric screen with non-tensioned Matte White surface and 220V motor for export
The Da-Lite Myriad Conceal DL100308ELB is a ceiling recessed electric projection screen designed for large-scale professional environments. Measuring 99" x 176" (596.6 x 447 mm), this 202" diagonal screen utilizes a non-tensioned Matte White surface in a 16:9 HDTV format. This specific model is engineered for the global market, featuring a 220V (50Hz) motor. It is TAA compliant and manufactured in the US. The design includes a standard black drop of 2" (5 cm) and is intended for front projection applications. For installers managing large-scale rollouts, this series offers a two-stage installation process: the screen case can be installed during the rough-in construction stage, while the screen surface assembly is completed during the finishing stage. This method allows for a cleaner installation as the ceiling trim hides the rough opening, eliminating the need for additional trim work. This unit is a Case/Box Only for Rough-In selection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 419 lbs (190.1 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Myriad Conceal screen fit my installation requirements?
This DL100308ELB model is a 99" x 176" screen with a non-tensioned Matte White surface. It is designed for ceiling recessed applications and features a standard 2" (5 cm) black drop.
What motor voltage is required for this DL100308ELB model?
This specific SKU is configured with a 220V (50Hz) motor intended for export markets.
Is the DL100308ELB TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
What additional components are needed to control this screen?
The screen features built-in low voltage control. Compatible controllers include the Da-Lite Screen Controller DL16523 or the DL16622 Smart Low Voltage Wall Switch.
Can I install the screen in stages during construction?
Yes, the Myriad Conceal series supports a two-stage installation where the case is installed during the rough-in and the surface is added during finishing.
