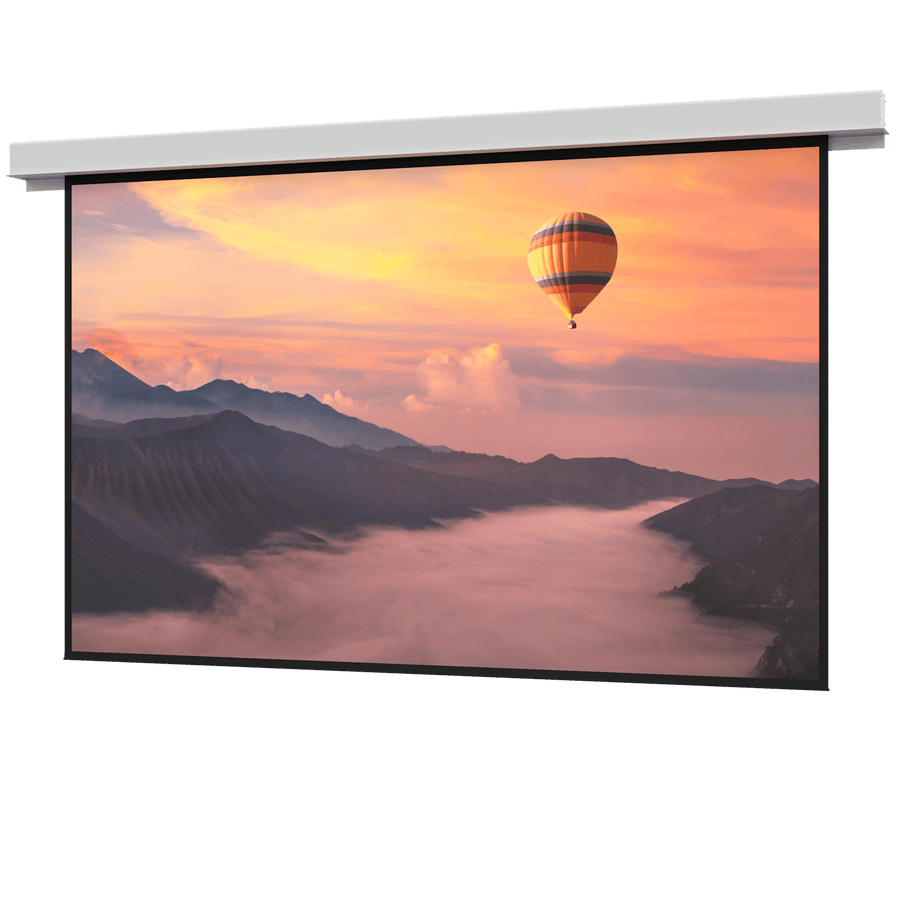

Da-Lite Myriad Conceal, 99" x 176" with Matte White - DL100308EL
Ceiling recessed electric screen, 99" x 176" (202" diagonal), Matte White non-tensioned surface, 16:9 HDTV format
The Da-Lite DL100308EL is a ceiling recessed electric screen designed for large venue applications such as lecture halls, conference centers, and hotel ballrooms. This Myriad Conceal series unit features a 99" x 176" (447 x 251.5 mm) projection area with a 16:9 HDTV screen format. It is equipped with a non-tensioned Matte White surface and utilizes a standard black drop for a 2" (5 cm) border. This model is built for international use, featuring a 220V (50Hz) motor for export. A key advantage of the Myriad Conceal series is the ability to perform a two-stage installation. The screen case can be installed during the rough-in construction stage, allowing the surface assembly to be completed later during the finishing stage. The design includes built-in low voltage control and a standard closure door. This TAA compliant, US-made screen is ideal for professional environments requiring a clean, integrated aesthetic. For submittal requirements, the Myriad Conceal Specification Data Sheet and the Myriad Brochure are available in the resources section.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 201.25" x 13" x 20" (511.2 x 33 x 50.8 cm) |
| Shipping Weight | 419 lbs (190.1 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236915569 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100308EL fit my 16:9 display requirements?
Yes, this screen is specifically configured for 16:9 HDTV formats with a 99" x 176" projection area.
What is the installation process for the Myriad Conceal series?
The series supports a two-stage installation where the case is installed during rough-in and the surface assembly is added during finishing.
What voltage motor is included with this model?
This specific SKU (DL100308EL) is equipped with a 220V (50Hz) motor intended for export use.
Does this screen include a black drop?
This non-tensioned model features a standard 2" (5 cm) black drop.
What additional controllers are compatible with this screen?
Compatible accessories include Da-Lite controllers such as the DL16522 (RF/BLE) or the DL15316 controller.
