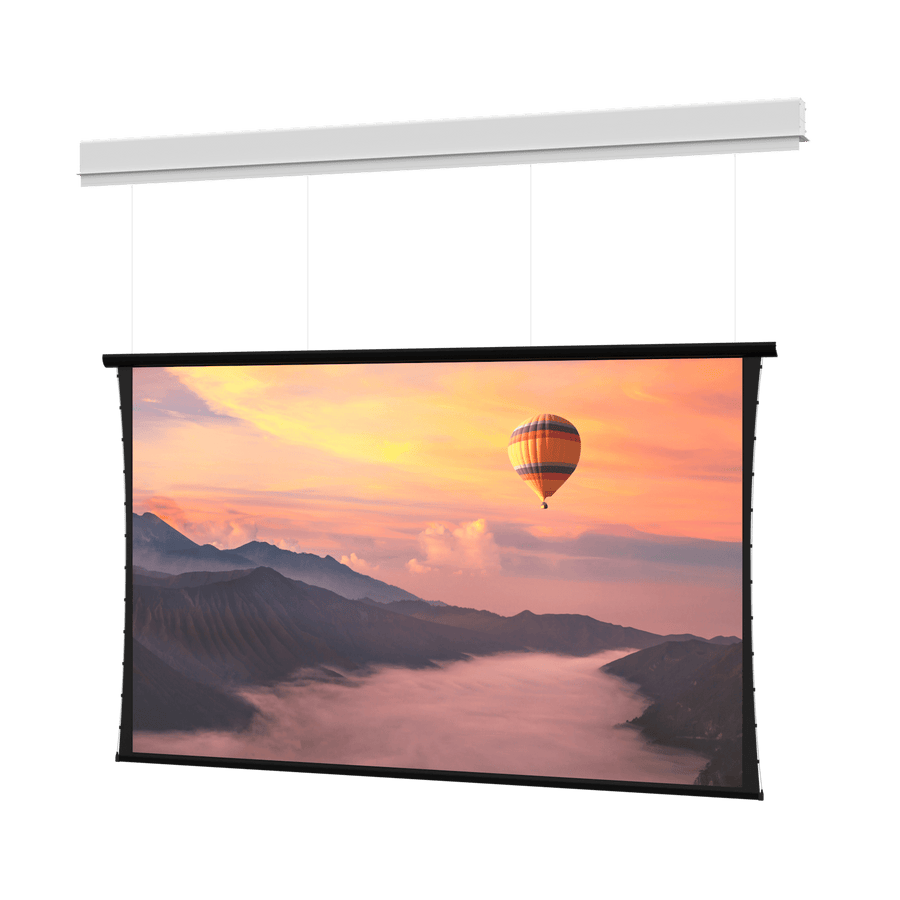

Da-Lite Myriad Conceal, 99" x 176" with HD Progressive ReView 0.9 - DL100271EL
Ceiling recessed rear projection screen, 99" x 176" (202" diagonal) with HD Progressive ReView 0.9 surface and SightLine cable drop
The Da-Lite DL100271EL is a Myriad Conceal series ceiling recessed electric screen designed for large venue applications. This 99" x 176" (202" diagonal) screen features an HD Progressive ReView 0.9 surface, specifically engineered for rear projection. It utilizes SightLine cable drop technology to elegantly suspend the screen surface, effectively eliminating the black drop typically seen above projection areas. This feature allows for variable vertical placement of the screen, accommodating drop distances up to 16' (5 m) between the ceiling and the top of the screen. This configuration preserves architectural interest by creating usable space above the viewing area, which is ideal for the placement of cameras or speakers. This SKU is built for 220V (50Hz) export use and includes low voltage control. The screen is TAA compliant and the case is UL plenum rated. Designed for professional installation in large meeting spaces, lecture halls, and hotel ballrooms, this Myriad Conceal model is a complete screen solution for high-resolution rear projection needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 218" x 13" x 20" (553.7 x 33 x 50.8 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 840236915064 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the display size and surface for the DL100271EL?
This model is a 99" x 176" (202" diagonal) screen featuring an HD Progressive ReView 0.9 surface designed for rear projection.
Will the SightLine cable drop work in my installation?
Yes, the SightLine technology allows the screen to be suspended with variable vertical placement, accommodating drop distances between the ceiling and the screen top of up to 16' (5 m).
What is the mounting requirement for this screen?
The DL100271EL is a ceiling recessed screen. It features a two-stage installation option where the case can be installed during rough-in construction and the surface assembly can be added during the finishing stage.
What control options are available for this Myriad Conceal screen?
This unit features built-in low voltage control. Additional control components like the Da-Lite Screen Controller DL16521 or DL16523 can be added via the accessories list.
Is this screen TAA compliant for government projects?
Yes, the DL100271EL is TAA compliant and is manufactured in the US.
