Da-Lite Myriad Conceal, 99" x 176" with HD Progressive 1.3 - DL100270L

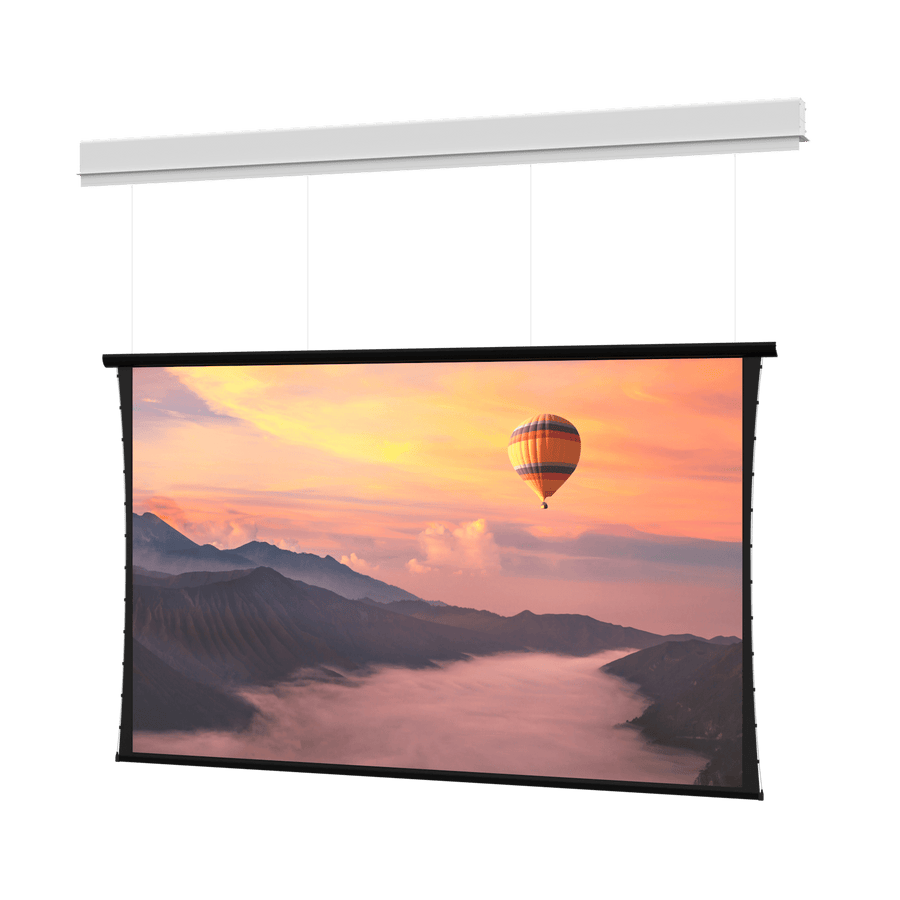

Ceiling recessed electric screen, 99" x 176" format, featuring HD Progressive 1.3 surface and SightLine cable drop for reduced black drop
The Da-Lite DL100270L is a Myriad Conceal ceiling recessed electric screen designed for large venue applications such as lecture halls, conference centers, and hotel ballrooms. This 99" x 176" (202" diagonal) 16:9 HDTV format screen utilizes an HD Progressive 1.3 surface for high-resolution front projection. A key feature of this model is the integrated SightLine cable drop, which elegantly suspends the screen surface to minimize black drop, allowing for more usable space above the viewing area. This design also facilitates easier placement for speakers or cameras. For installation, the Myriad Conceal series allows for a two-stage process where the screen case can be installed during the rough-in stage, with the surface assembly completed during the finishing stage. The standard 120V (60Hz) motor operates via low voltage control, and the unit is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236915675 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What are the dimensions of the DL100270L screen surface?
The screen surface measures 99" x 176" (251.5 x 447 mm), resulting in a 202" (513.1 cm) diagonal size.
How does the SightLine cable drop work on this Myriad Conceal screen?
SightLine elegantly suspends the screen surface to reduce black drop. It allows for a variable vertical placement with standard cable accommodation for drop distances up to 16' (5 m) between the ceiling and the top of the screen.
What do I need for the installation of this recessed screen?
This is a ceiling recessed application. For submittals, you can refer to the Myriad Conceal Specification Data Sheet or the Myriad Conceal Instructions PDF.
What control options are available for this DL100270L model?
This model features built-in low voltage control. You can add specialized control via the Da-Lite Screen Controller with Infrared Remote (DL16524) or the Da-Lite Screen Controller with PoE Injector (DL16521).
Is this screen TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
