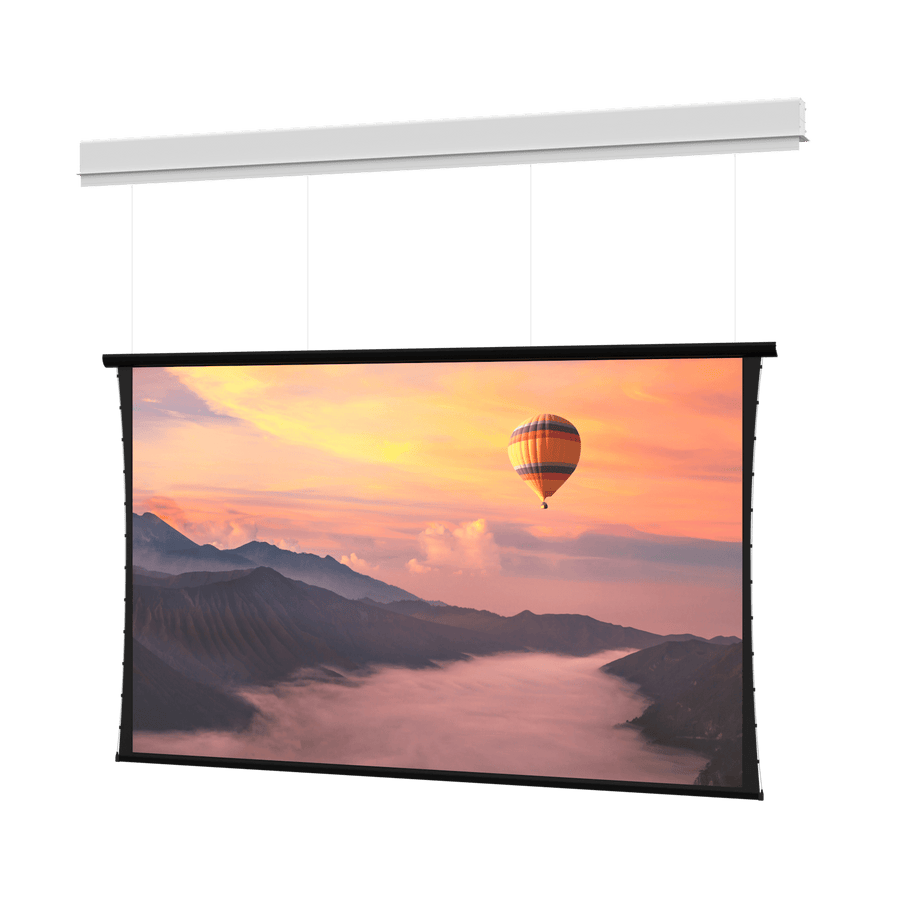

Da-Lite Myriad Conceal, 99" x 176" with Da-Tex - DL100273ELF
99" x 176" rear projection screen with Da-Tex surface, SightLine cable drop, and 220V export motor for ceiling recessed installation
The Da-Lite DL100273ELF is a 99" x 176" (202" diagonal) rear projection screen designed for ceiling recessed applications. This electric screen features a Da-Tex surface and is configured for HDTV (16:9) aspect ratio. This specific SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. For international installations, this unit is equipped with a 220V (50Hz) motor. The system utilizes SightLine technology, which employs a thin cable drop to elegantly suspend the screen surface and eliminate the black drop typically seen in standard installations. This SightLine feature provides a variable drop distance of up to 16' (5 m) between the ceiling and the top of the screen, allowing for flexible vertical placement and the preservation of architectural interests or space for camera and speaker placement. This TAA compliant solution is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included with the Da-Lite DL100273ELF?
This SKU includes the screen surface, roller, and motor assembly only; the mounting case/box must be purchased separately.
Will this screen work with rear projection?
Yes, this model features a Da-Tex surface specifically designed for rear projection applications.
How do I control the screen motor?
This unit features built-in low voltage control and is compatible with Da-Lite controllers like the DL16622 Smart Low Voltage Wall Switch.
What is the benefit of the SightLine drop feature?
SightLine cable drop eliminates the black border above the screen and allows for a variable drop distance of up to 16' (5 m).
Is this product TAA compliant?
Yes, the DL100273ELF is TAA compliant and is manufactured in the US.
