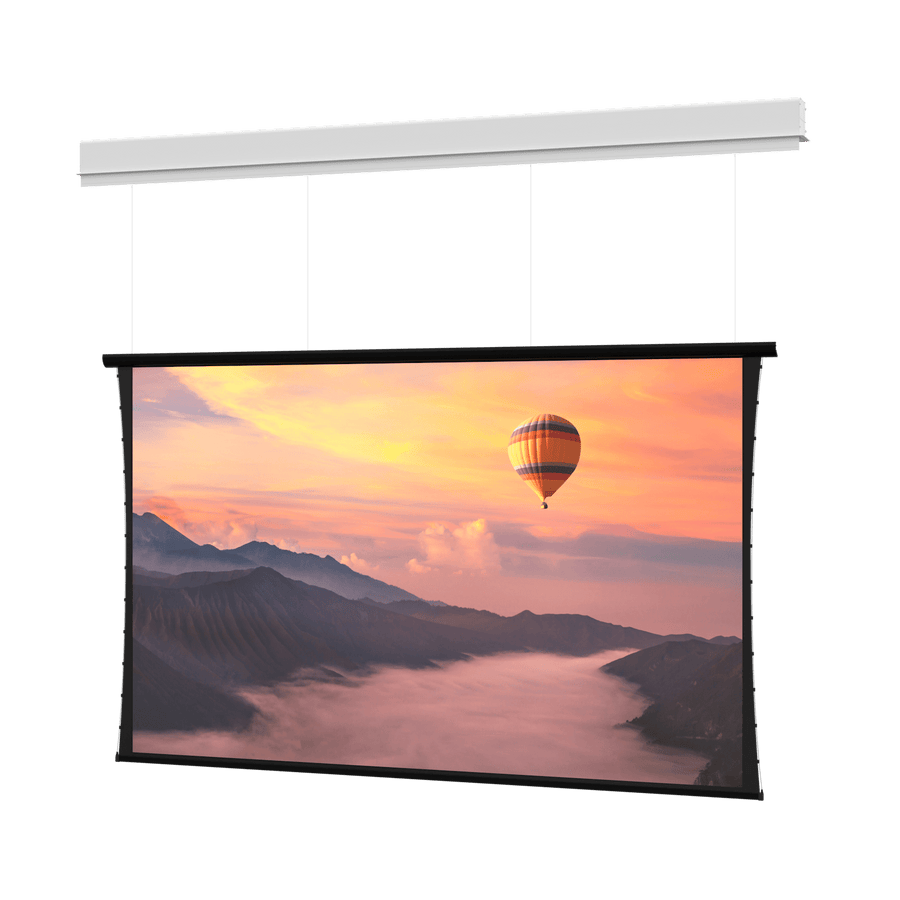

Da-Lite Myriad Conceal, 99" x 176" with Da-Mat - DL100272ELF
99" x 176" ceiling recessed projection screen with Da-Mat surface, SightLine cable drop, and 220V motor
The Da-Lite DL100272ELF is a 99" x 176" (202" diagonal) Myriad Conceal ceiling recessed electric screen featuring a Da-Mat surface. Designed for front projection in HDTV (16:9) formats, this screen is built for professional environments like lecture halls, conference centers, and houses of worship. This specific SKU is a surface, roller, and motor assembly only; the case and box must be ordered separately. It utilizes SightLine cable drop technology, which elegantly suspends the screen surface to eliminate black drop by providing variable vertical placement of the screen. This feature creates usable space above the viewing area, which is useful for placing cameras or speakers. The unit includes a low voltage control system and is powered by a 220V (50Hz) motor intended for export markets. This TAA compliant product is manufactured in the US and features a standard closure door and white powder-coated aluminum finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 202 in (513.1 cm) |
| Screen Height | 99 in (251.5 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 99" x 176" or 202" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100272ELF fit my specific ceiling setup?
This is a ceiling recessed model designed with trim to conceal the rough opening, which helps eliminate the need for additional trim work after installation.
What is included with this specific SKU?
This SKU includes the screen surface, roller, and motor assembly only; the case or box is not included and must be ordered separately.
What do I need to buy to control this screen?
You can add various control options such as the DL16524 Infrared Remote Controller, the DL16522 RF (BLE) Remote Controller, or the DL16521 PoE Injector controller.
Can I adjust the vertical height of the screen?
Yes, the integrated SightLine cable drop accommodates a range of drop distances up to 16' (5 m) between the ceiling and the top of the screen.
Is this screen TAA compliant for government projects?
Yes, the DL100272ELF is TAA compliant and is manufactured in the United States.
