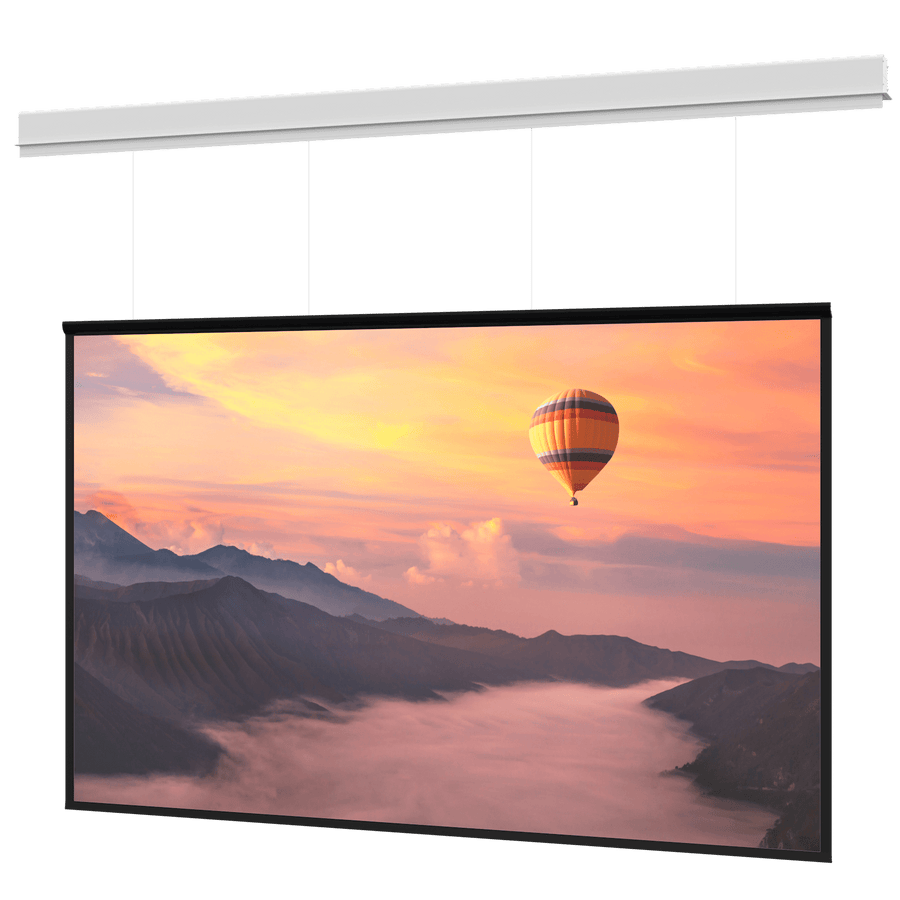

Da-Lite Myriad Conceal, 94.5" x 168" with Matte White - DL100313ELF
Ceiling recessed electric screen, 94.5" x 168" with non-tensioned Matte White surface and SightLine cable drop
The Da-Lite DL100313ELF is a Myriad Conceal series ceiling recessed electric screen designed for professional environments such as lecture halls, conference centers, and large meeting spaces. This 94.5" x 168" (193" diagonal) screen features a 16:9 HDTV format and a non-tensioned Matte White surface for standard resolution front projection. Built with integrated ceiling trim, this unit is designed to conceal the rough opening once installed, eliminating the need for secondary trim work. This SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. This model utilizes a SightLine cable drop system, which elegantly suspends the screen to eliminate the traditional black drop, preserving architectural interests and providing usable space above the viewing area for speakers or cameras. The SightLine feature accommodates a vertical drop distance of up to 16' (5 m) between the ceiling and the top of the screen. This TAA compliant assembly operates on a 220V (50Hz) motor for export markets and includes low voltage control for integrated system management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included with the DL100313ELF SKU?
This specific SKU includes the surface, roller, and motor assembly only. The screen case and box must be ordered separately to complete the installation.
Does this screen require additional trim work after installation?
No, the Myriad Conceal series is designed with ceiling trim included to conceal the rough opening, which eliminates the need for additional trim work once the screen is installed.
How does the SightLine drop work for this model?
The SightLine cable drop elegantly suspends the screen surface to eliminate the black border (black drop). It accommodates vertical placement from the ceiling up to 16' (5 m) below the ceiling line.
What control options are available for this screen?
This model features built-in low voltage control. Compatible accessories include RF (BLE) or Infrared remote controllers, such as the Da-Lite DL16522 or DL16524, and PoE injector options like the DL16521.
Is this screen TAA compliant for government projects?
Yes, the DL100313ELF is TAA compliant and is manufactured in the US.
