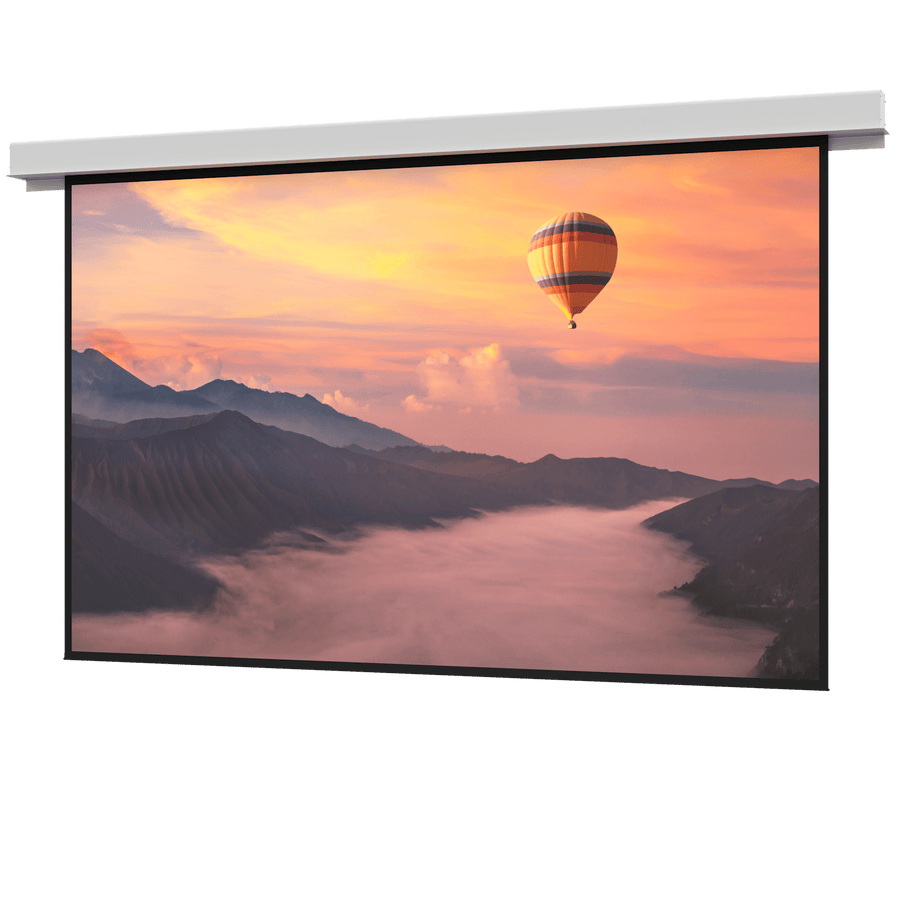

Da-Lite Myriad Conceal, 94.5" x 168" with Matte White - DL100306LF
Electric ceiling recessed screen, 94.5" x 168" with 193" diagonal, Matte White non-tensioned surface, 16:9 HDTV format
The Da-Lite DL100306LF is a ceiling recessed electric screen designed for front projection in large meeting spaces, lecture halls, and hotel ballrooms. This 94.5" x 168" (193" diagonal) unit features a 16:9 HDTV screen format and is finished with a non-tensioned Matte White surface. As this is a Surface, Roller, and Motor Assembly Only, the case and box must be ordered separately. This model utilizes a standard 120V (60Hz) motor and includes low voltage control for integration into existing AV systems. The non-tensioned design provides a standard 2" (5 cm) black drop. Built for professional installations, the Myriad Conceal series features a UL plenum rated case and a standard white powder-coated aluminum finish. This TAA compliant product is manufactured in the US, supporting federal procurement requirements for global rollouts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does this screen include the mounting case?
No, this SKU is the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately.
What kind of control interface does the DL100306LF use?
This model includes built-in low voltage control and is compatible with accessories like the DL16622 Smart Low Voltage Wall Switch.
What is the difference between the tensioned and non-tensioned versions?
The non-tensioned version included here features a standard 2" (5 cm) black drop, whereas tensioned models provide a 12" (30.5 cm) black drop.
Is this screen suitable for TAA compliant projects?
Yes, this product is TAA compliant and is manufactured in the US.
What is the required voltage for installation?
The screen is equipped with a standard 120V (60Hz) motor.
