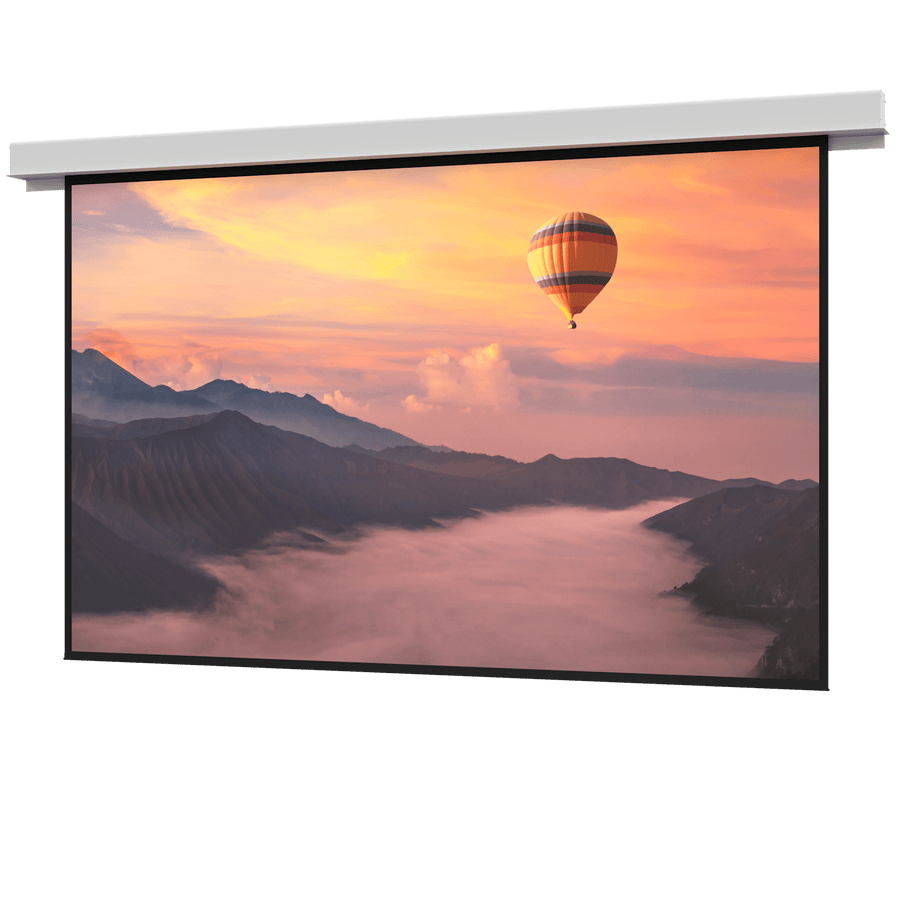

Da-Lite Myriad Conceal, 94.5" x 168" with Matte White - DL100306L
Ceiling recessed electric projection screen, 94.5" x 168" (193" diagonal) with Matte White non-tensioned surface
The Da-Lite DL100306L is a ceiling recessed electric projection screen designed for large-venue applications such as lecture halls, hotel ballrooms, and conference centers. This 193" diagonal (490.2 cm) screen features a 16:9 HDTV format with a Matte White non-tensioned surface, optimized for front projection. It utilizes a standard 120V (60Hz) motor and includes low voltage control for integrated system management. This model is configured with a standard black drop and is TAA compliant, making it suitable for various professional installation environments. The Myriad Conceal series is engineered to simplify the installation process through a two-stage method: the screen case can be installed during the rough-in construction phase, while the surface assembly is added during the final finishing stage. The design includes integrated ceiling trim to conceal the rough opening, eliminating the need for additional trim work after installation. This SKU is a complete screen assembly ready for ceiling recessed application.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236916153 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit my 16:9 display setup?
Yes, the DL100306L is a 16:9 HDTV format screen with a width of 168 in (426.7 cm) and a height of 94.5 in (240 cm).
What do I need to buy to control this screen?
This unit includes low voltage control. Compatible controllers include the Da-Lite DL16522 (RF/BLE), DL16524 (Infrared), or the DL16521 PoE injector option.
Can I install this screen in two different stages?
Yes, the Myriad Conceal series allows the case to be installed during rough-in construction and the surface assembly during the finishing stage.
What is the difference between a standard drop and SightLine?
This specific SKU features a standard black drop. Other Myriad models are available with Da-Lite's SightLine technology to eliminate the black drop via cable suspension.
Is there technical documentation available for submittals?
Yes, the Myriad Conceal Specification Data Sheet and CAD/BIM models are available in the resources section for planning and submittals.
