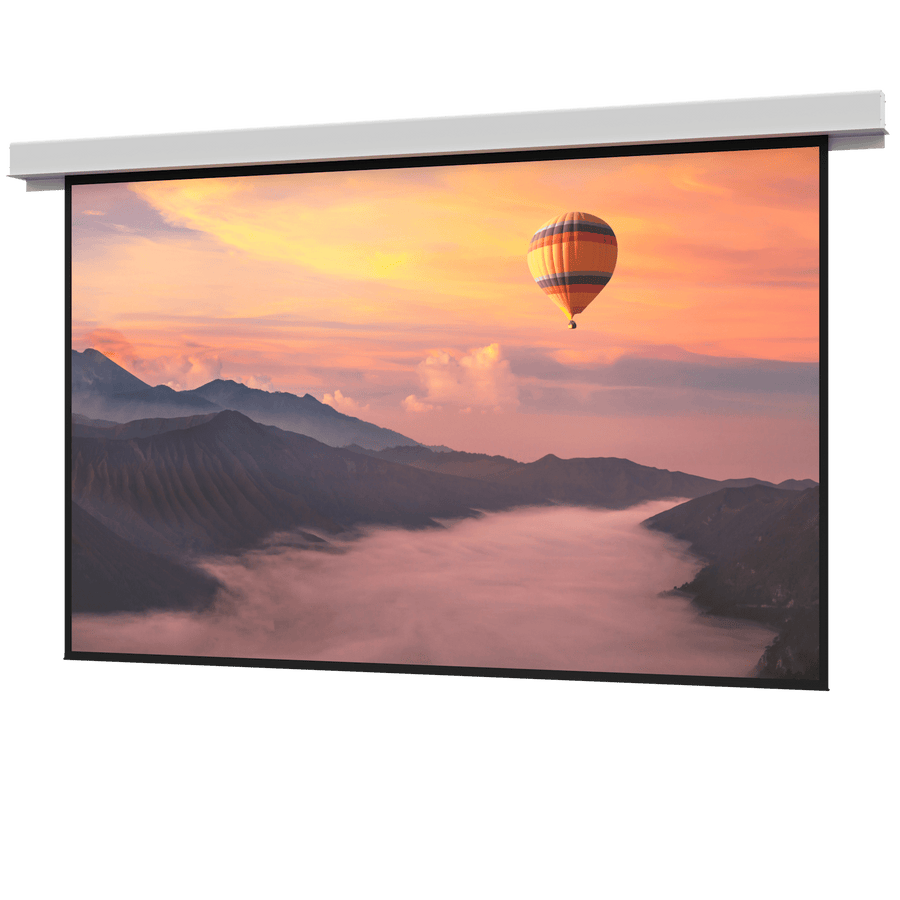

Da-Lite Myriad Conceal, 94.5" x 168" with Matte White - DL100306ELF
Ceiling recessed electric screen for 16:9 HDTV, 94.5" x 168" dimensions, featuring a matte white non-tensioned surface
The Da-Lite DL100306ELF is a ceiling recessed electric screen designed for professional front projection in large environments such as lecture halls, conference centers, and hotel ballrooms. This specific configuration features a 94.5" x 168" (240 cm x 426.7 cm) 16:9 HDTV format with a Matte White non-tensioned surface and a standard black drop. This model is intended for export, utilizing a 220V (50Hz) motor. As part of the Myriad Conceal series, the design includes integrated ceiling trim to hide the rough opening, which simplifies the final installation phase. This SKU is provided as the surface, roller, and motor assembly only; the external case or box must be ordered separately. This TAA compliant solution is ideal for high-end installations requiring a clean, recessed aesthetic without the need for additional trim work after the screen is mounted.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does this DL100306ELF screen include the external housing?
No, this SKU is for the surface, roller, and motor assembly only. The case or box must be ordered separately.
What is the required voltage for this model?
This model is configured with a 220V (50Hz) motor intended for export use.
What is the purpose of the Myriad Conceal trim?
The integrated ceiling trim is designed to conceal the rough opening, eliminating the need for additional trim work once the screen is installed.
What type of projection is this screen for?
The DL100306ELF is designed for front projection using a non-tensioned Matte White surface.
Can I control this screen with a remote or switch?
Yes, this model features low voltage control. Compatible accessories include the DL16522 RF (BLE) remote and the DL16622 Smart Low Voltage Wall Switch.
