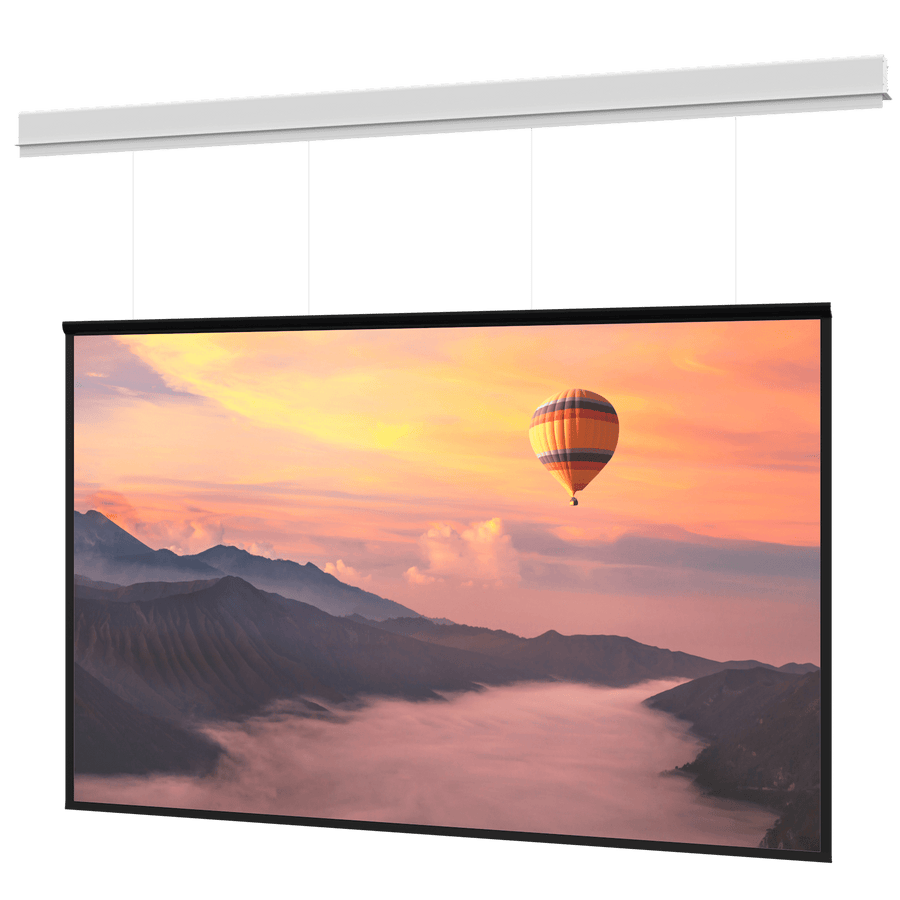

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100314LF
Ceiling recessed electric screen with SightLine cable drop and High Contrast Matte White non-tensioned surface
The Da-Lite DL100314LF is a 94.5" x 168" (426.7 x 240 cm) ceiling recessed electric screen designed for professional AV environments like lecture halls, conference centers, and large meeting spaces. This Myriad Conceal series model features a 193 in (490.2 cm) diagonal and is configured with a High Contrast Matte White non-tensioned surface for front projection. This specific SKU is the Surface, Roller, and Motor Assembly Only, meaning the case and box must be ordered separately. It utilizes SightLine cable drop technology, which elegantly suspends the screen to eliminate the black drop, creating usable space above the viewing area for speakers or cameras. The unit includes low voltage control and a standard 120V (60Hz) motor. As a TAA compliant product, it is suitable for federal projects. This non-tensioned model features a standard 2" (5 cm) black drop when fully retracted.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does the DL100314LF include the ceiling housing?
No, this SKU is the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately.
What is the difference between the SightLine drop and a standard drop?
The SightLine cable drop elegantly suspends the surface to eliminate the black drop, while this non-tensioned model maintains a standard 2" (5 cm) black drop.
What electrical requirements are needed for this screen?
The DL100314LF features a standard 120V (60Hz) motor and includes built-in low voltage control for integration.
Can I use this screen for federal government projects?
Yes, this product is TAA compliant and manufactured in the US.
What accessories are compatible with the Myriad Conceal series?
Compatible accessories include Da-Lite Screen Controllers such as the DL16524 (Infrared) or DL16522 (RF/BLE), and the DL16622 Smart Low Voltage Wall Switch.
