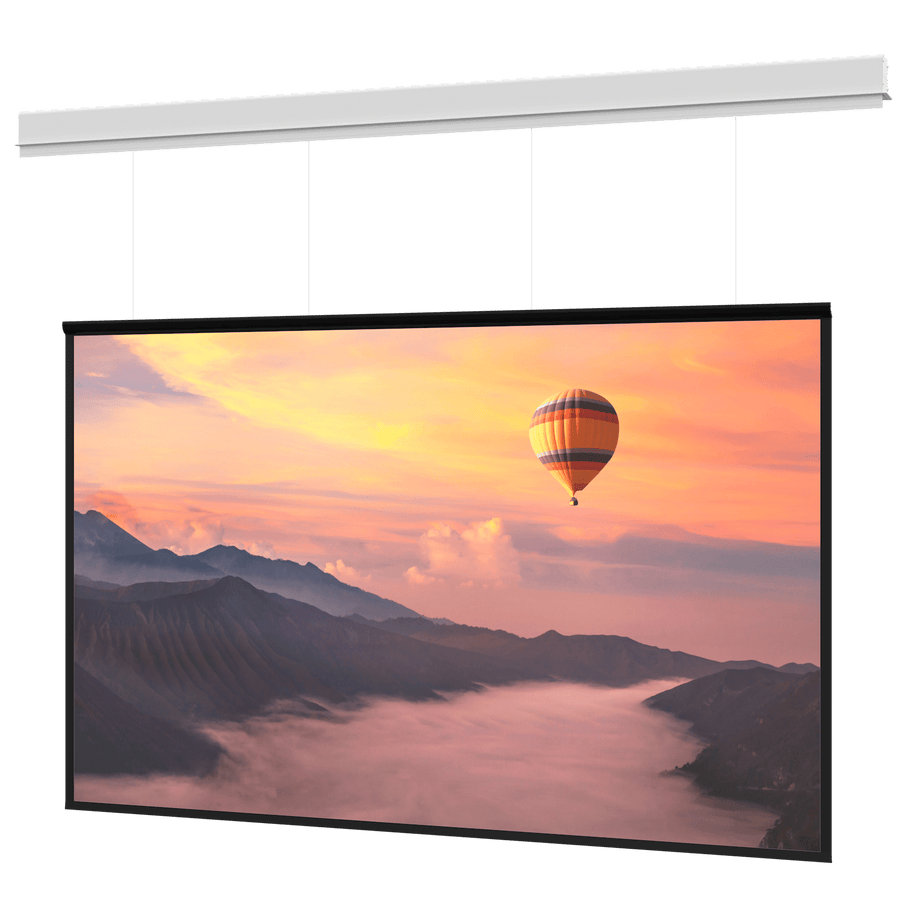

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100314L
Ceiling recessed electric screen, 94.5" x 168" (193" diagonal), features High Contrast Matte White non-tensioned surface and SightLine cable drop
The Da-Lite DL100314L is a Myriad Conceal series ceiling recessed electric screen measuring 94.5" x 168" (240 cm x 426.7 cm) with a 193" diagonal. This large venue solution features a High Contrast Matte White non-tensioned surface designed for front projection in HDTV (16:9) formats. It utilizes SightLine technology, a thin cable drop system that eliminates the black border typically seen above a screen by elegantly suspending the surface. This feature provides a variable drop distance of up to 16’ (5 m) between the ceiling and the top of the screen, allowing installers to preserve architectural interests and leave space for cameras or speakers. The unit includes low voltage control and is powered by a standard 120V (60Hz) motor. This TAA compliant screen is ideal for large meeting spaces, conference centers, lecture halls, and hotel ballrooms. The white powder-coated aluminum finish on the case is designed to conceal the rough opening with built-in trim.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236916191 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100314L fit my specific display configuration?
This screen is designed for front projection in a 16:9 HDTV format with a 94.5" x 168" dimension and features a non-tensioned surface.
What is required for the ceiling installation of the DL100314L?
This is a ceiling recessed unit that includes trim to conceal the rough opening; the case is designed to be installed during the rough-in construction stage.
What is the benefit of the SightLine drop on this model?
The SightLine cable drop eliminates the black border above the screen and accommodates a variable drop distance of up to 16' (5 m) from the ceiling.
What accessories are compatible with the DL100314L?
You can add various controllers, including the DL16522 RF (BLE) remote controller or the DL15316 screen controller.
Is this screen TAA compliant for government projects?
Yes, the DL100314L is TAA compliant and is manufactured in the US.
