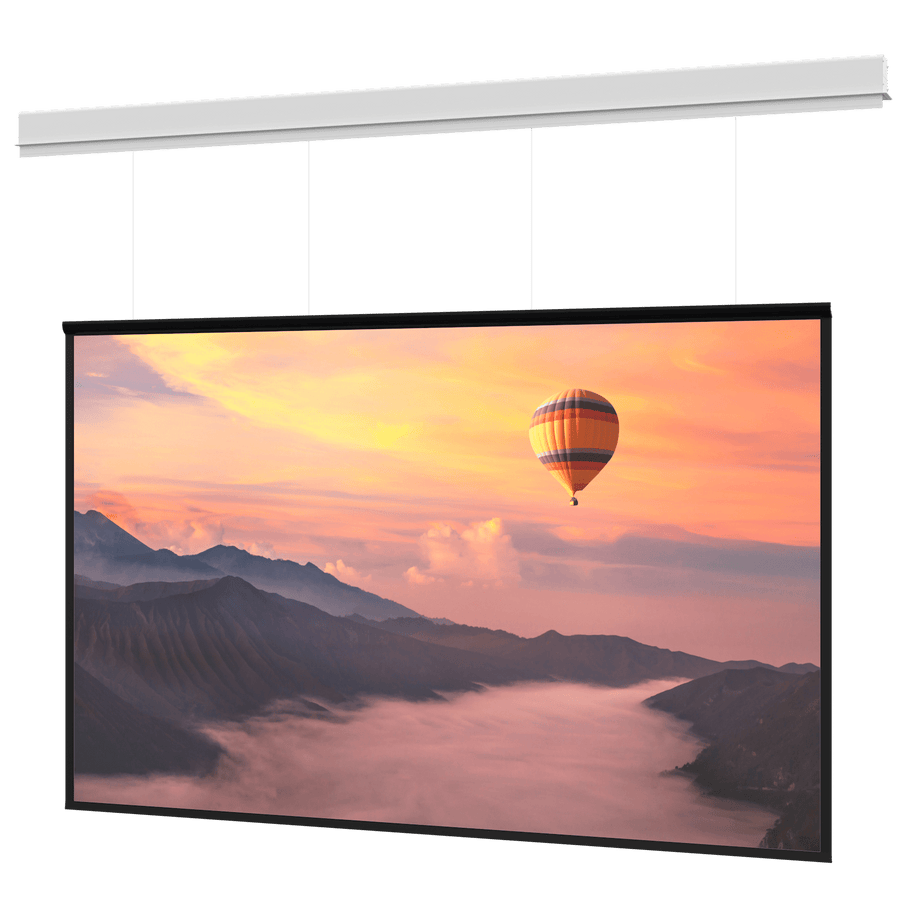

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100314ELF
Ceiling recessed electric screen, 94.5" x 168" size, with SightLine cable drop and High Contrast Matte White surface
The Da-Lite Myriad Conceal DL100314ELF is a ceiling recessed electric projection screen designed for front projection applications. This specific configuration features a 16:9 HDTV format with a 193 in (490.2 cm) diagonal measurement. The screen surface is a non-tensioned High Contrast Matte White, which provides a standard resolution surface for high-quality imagery. This unit utilizes the SightLine cable drop system, which elegantly suspends the screen surface to eliminate black drop, preserving the architectural integrity of the ceiling area. This specific SKU is the surface and roller assembly only; the case or box must be ordered separately. It is built with a 220V (50Hz) motor for export markets and includes low voltage control. The series is TAA compliant and designed for recessed installation where ceiling trim is used to conceal the rough opening. This makes the screen ideal for large conference centers, lecture halls, and hotel ballrooms requiring a clean, integrated look.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100314ELF fit my 16:9 display setup?
Yes, this screen is specifically configured for 16:9 HDTV formats with a 168 in (426.7 cm) width and 94.5 in (240 cm) height.
Is the housing included with this part number?
No, this SKU is for the Surface, Roller, and Motor Assembly Only; the case or box must be ordered separately.
What is required for the installation and control of this screen?
This model features built-in low voltage control. Compatible control options include the DL16522 RF (BLE) remote or the DL16622 Smart Low Voltage Wall Switch.
How does the SightLine drop work for this Myriad model?
The SightLine cable drop suspends the screen surface to eliminate the black border above the projection area, allowing for variable vertical placement up to 16' (5 m) of drop.
Is this screen suitable for TAA compliant projects?
Yes, the DL100314ELF is TAA compliant, making it suitable for specific government and enterprise procurement requirements.
