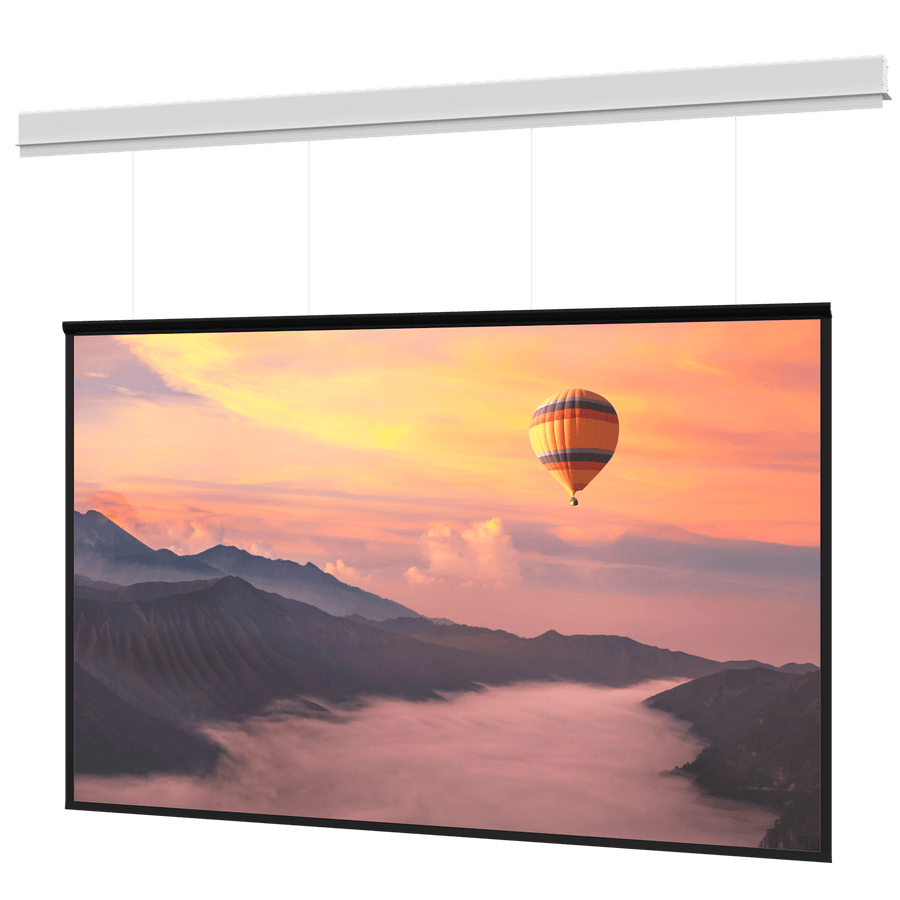

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100314ELB
Ceiling recessed electric screen with High Contrast Matte White surface, 94.5" x 168" (16:9 HDTV) and SightLine technology
The Da-Lite DL100314ELB is a ceiling recessed electric screen designed for professional environments like conference centers, lecture halls, and large classrooms. This 94.5" x 168" (193" diagonal) HDTV format screen features a non-tensioned High Contrast Matte White surface. It utilizes SightLine technology, a thin cable drop feature that suspends the surface and eliminates the black drop typically seen above a projection area, helping to preserve architectural interests. This specific SKU is a case and box only for rough-in, providing a specialized solution for the construction stage. The unit features a 220V (50Hz) motor for export and includes low voltage control. This TAA compliant product is manufactured in the US and is designed to conceal the rough opening with its integrated ceiling trim. Because it is a non-tensioned model, it provides a standard 2" (5 cm) black drop.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Da-Lite screen fit my 16:9 display configuration?
Yes, the DL100314ELB is configured for 16:9 HDTV format with a screen height of 94.5" (240 cm) and a width of 168" (426.7 cm).
What is required for the installation rough-in of this screen?
This SKU is provided as a Case/Box Only for Rough-In, allowing the case to be installed during the rough-in construction stage before finishing.
Does this screen require additional mounting accessories?
The screen supports several control options, including the DL16522 RF (BLE) remote controller or the DL16622 Smart Low Voltage Wall Switch.
How does the SightLine feature affect the screen's appearance?
SightLine uses a thin cable drop to suspend the surface, which eliminates the black drop and provides a cleaner look above the viewing area.
Which documents should I use for submittals and installation?
For submittals, you can use the Myriad Conceal Specification Data Sheet or the CSI 3-Part Specifications available in the resources.
