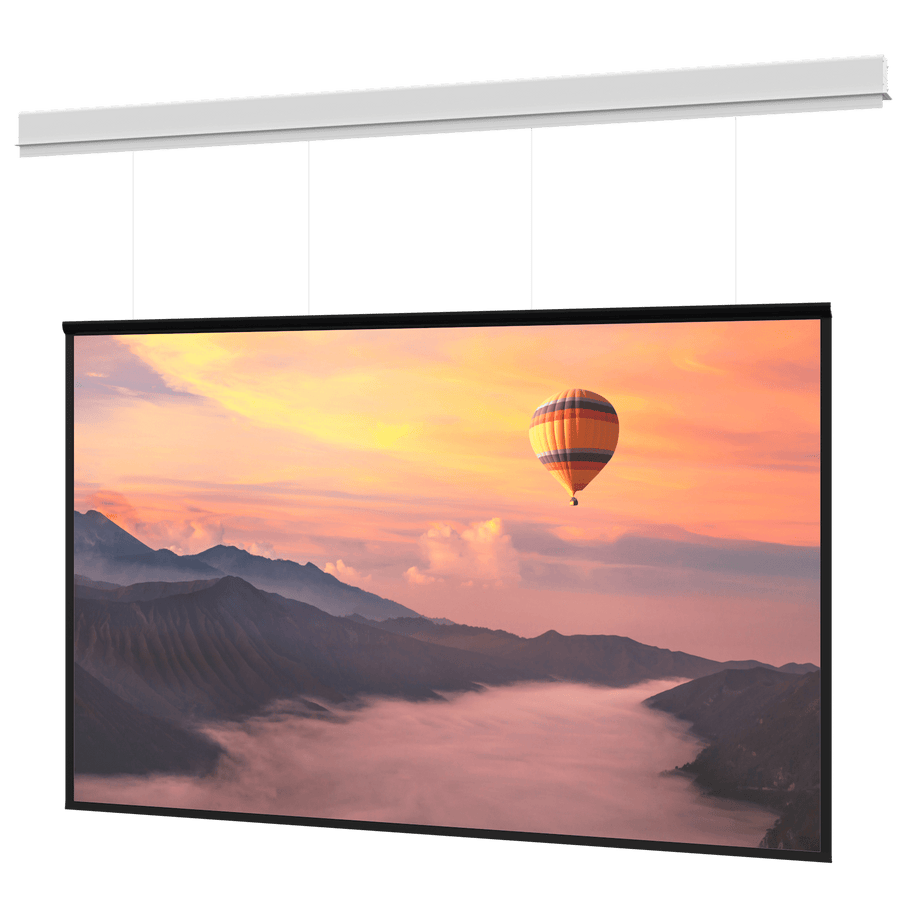

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100314EL
Ceiling recessed electric screen, 94.5" x 168" (193" diagonal), featuring SightLine cable drop and High Contrast Matte White surface
The Da-Lite DL100314EL is a ceiling recessed electric screen designed for large venue applications such as lecture halls, conference centers, and ballrooms. This 193" diagonal (490.2 cm) screen features a 16:9 HDTV format and utilizes a High Contrast Matte White non-tensioned surface for front projection. It is built with the SightLine cable drop feature, which elegantly suspends the surface to eliminate the black drop typically seen above the projection area. This design creates usable space above the viewing area for the placement of speakers or cameras. This specific model is engineered for international use with a 220V (50Hz) motor. For installers, the Myriad Conceal series offers a two-stage installation process: the screen case can be installed during the rough-in construction phase, while the surface assembly is completed during the finishing stage. The included ceiling trim is designed to conceal the rough opening, preventing the need for additional trim work after installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236915583 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen work with my existing control system?
The DL100314EL includes built-in low voltage control. For additional control options, you can integrate Da-Lite Screen Controllers such as the DL15316 or various RF/Infrared and PoE models.
Does this screen include the necessary mounting hardware for a ceiling rough-in?
This is a complete screen assembly. The Myriad Conceal design includes ceiling trim intended to hide the rough opening once the screen is installed in the ceiling.
How can I adjust the vertical drop distance of the screen?
The SightLine cable drop feature allows for variable vertical placement. The cables accommodate a standard drop distance of up to 16' (5 m) between the ceiling and the top of the screen.
What is the difference between this and the tensioned Myriad models?
This DL100314EL is a non-tensioned model with a 2" (5 cm) standard black drop. Tensioned models from the Myriad series are available and typically feature a 12" (30.5 cm) black drop.
What documentation is available for submittals and installation?
You can access the Myriad Conceal Specification Data Sheet, installation instructions, and BIM/CAD models via the Resources tab on the product page.
