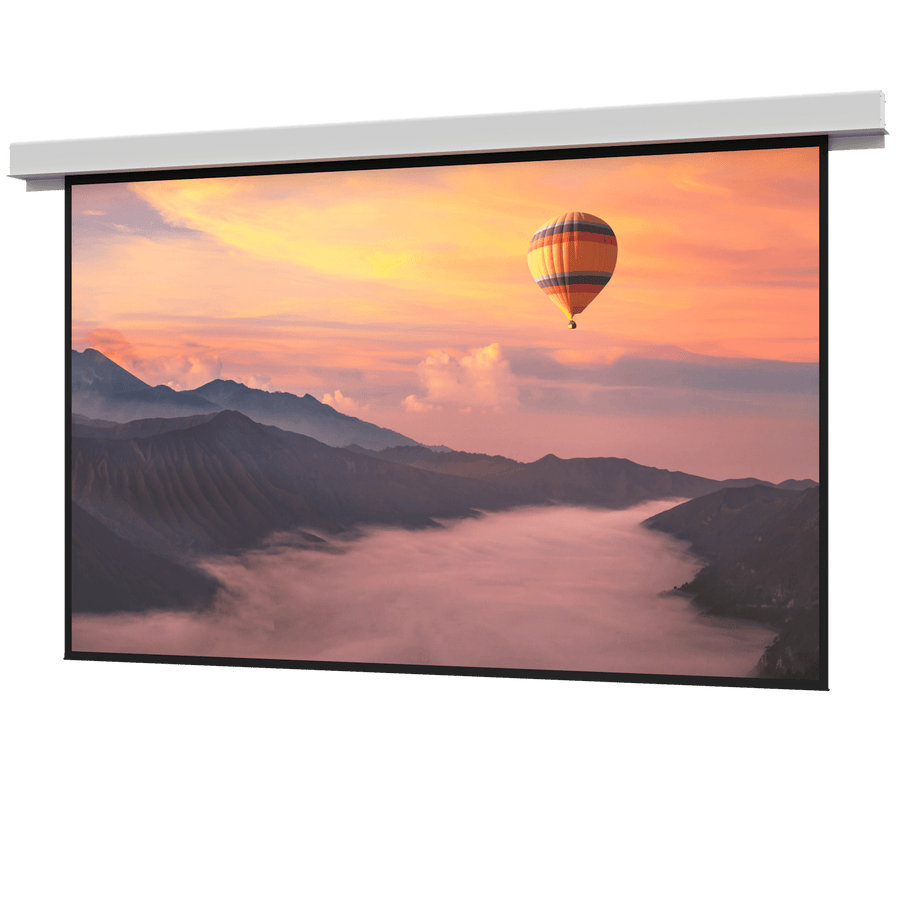

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100307LF
Ceiling recessed electric screen for front projection, 94.5" x 168" with High Contrast Matte White surface
The Da-Lite DL100307LF is a ceiling recessed electric screen designed for front projection applications in professional environments like lecture halls, conference centers, and large classrooms. This Myriad Conceal series model features a 16:9 HDTV screen format and utilizes a High Contrast Matte White non-tensioned surface. This specific SKU is a surface, roller, and motor assembly only; the case and box must be ordered separately. It is designed for ceiling recessed installation, utilizing a standard black drop for a 2" (5 cm) border when the screen is extended. This model operates on a standard 120V (60Hz) motor and includes built-in low voltage control for integration into automated systems. As a TAA compliant product, it meets specific requirements for federal procurement. The non-tensioned design ensures a clean, professional appearance when retracted within the ceiling void.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is included with the DL100307LF screen assembly?
This SKU includes the screen surface, roller, and motor assembly only. The ceiling case and box must be ordered separately to complete the installation.
Can I control this screen with a remote or wall switch?
Yes. It features built-in low voltage control and is compatible with accessories like the Da-Lite DL16524 infrared remote controller or the DL16622 Smart Low Voltage Wall Switch.
What is the black drop on this non-tensioned screen?
This non-tensioned model features a standard 2" (5 cm) black drop, which is the black border visible above the projection surface when the screen is deployed.
Is this screen suitable for recessed ceiling installation?
Yes, it is specifically designed for ceiling recessed applications. The Myriad Conceal series includes ceiling trim to help conceal the rough opening once installed.
What electrical requirements are needed for the motor?
The motor is a standard 120V (60Hz) unit designed for standard US electrical outlets and low voltage control integration.
