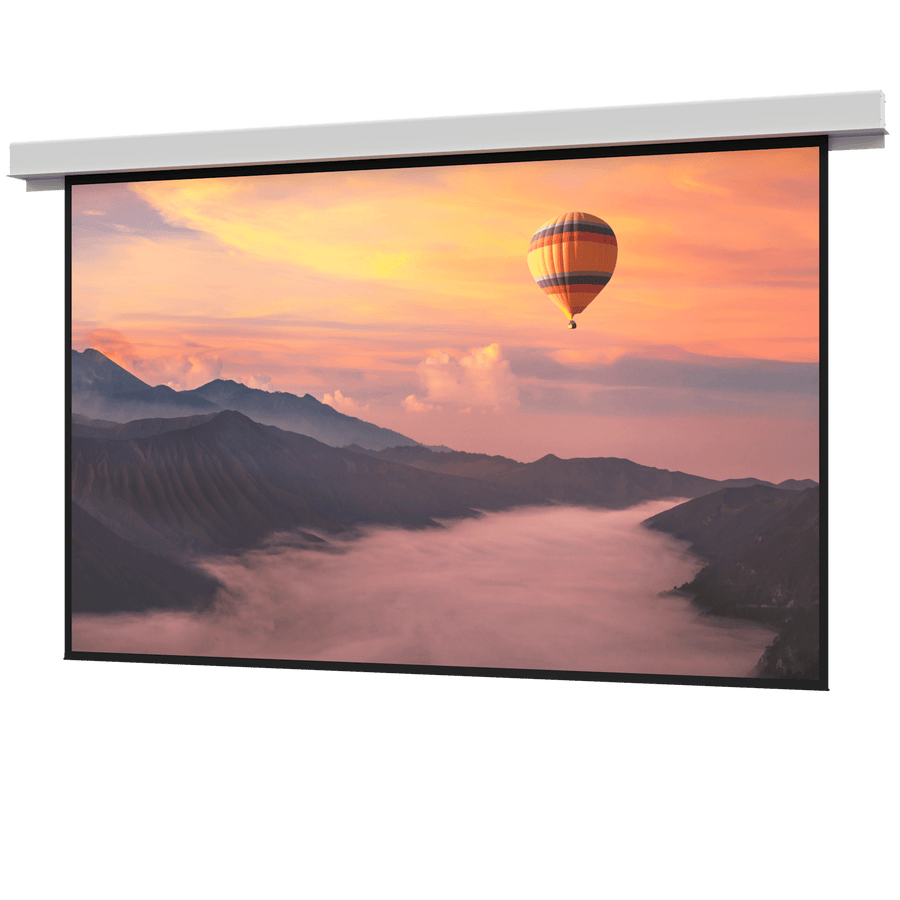

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100307LB
Ceiling recessed electric screen, 94.5" x 168" (193" diagonal), with High Contrast Matte White non-tensioned surface and standard black drop
The Da-Lite DL100307LB is a ceiling recessed electric screen designed for professional environments like lecture halls, conference centers, and houses of worship. This 193 in (490.2 cm) diagonal screen features a High Contrast Matte White non-tensioned surface and is configured in a 16:9 HDTV format. For installation efficiency, this SKU is designated as a Case/Box Only for Rough-In, allowing installers to mount the screen case during the rough-in construction stage and complete the surface assembly during the finishing stage. This specific model utilizes a Standard Black Drop for a non-tensioned surface. The unit operates on a standard 120V (60Hz) motor and includes built-in low voltage control for integration into automated systems. This TAA compliant product is manufactured in the US and is suitable for front projection applications where a recessed, architectural finish is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How does this screen installation work for new construction?
This is a Case/Box Only for Rough-In selection, meaning the screen case can be installed during the initial rough-in stage, with the surface assembly added during the finishing stage.
What type of control is required for the motor?
The DL100307LB features built-in low voltage control and operates on a standard 120V (60Hz) motor.
Is this screen TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
What kind of drop does the non-tensioned surface have?
Because this is a non-tensioned model, it comes with a standard 2" (5 cm) black drop.
What accessories are compatible with this Myriad Conceal screen?
You can add various controllers, such as the Da-Lite Screen Controller with PoE Injector (DL16521) or an RF (BLE) Remote (DL16522).
