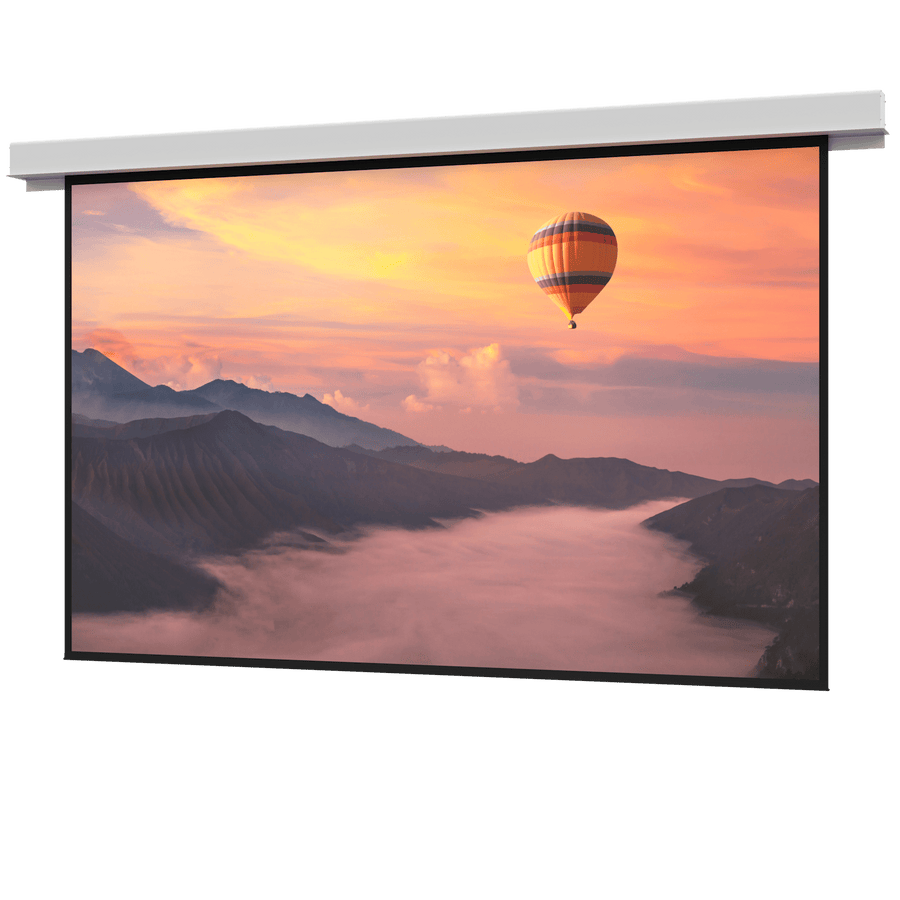

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100307L
Recessed electric ceiling screen for large venues, 94.5" x 168" with High Contrast Matte White non-tensioned surface
The Da-Lite DL100307L is a Myriad Conceal series electric ceiling recessed screen designed for large venue applications such as lecture halls, ballrooms, and conference centers. This 16:9 HDTV format screen features a 193 in (490.2 cm) diagonal with a height of 94.5 in (240 cm) and a width of 168 in (426.7 cm). The surface is a High Contrast Matte White (non-tensioned) designed for front projection. This model utilizes a standard black drop and a standard 120V (60Hz) motor. For installation, the unit is TAA compliant and features a standard closure door. The Myriad Conceal series offers a two-stage installation process, allowing the case to be installed during the rough-in construction stage and the surface assembly to be finished later. This specific model is the non-tensioned version of the Myriad Conceal series, providing a professional, recessed aesthetic for permanent installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236916160 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100307L work for my ceiling installation?
Yes, this is a ceiling recessed application designed to be installed during the rough-in construction stage, with the surface assembly following during the finishing stage.
What control options are compatible with this screen?
This screen includes built-in low voltage control and is compatible with various Da-Lite controllers, such as the DL15316 or wireless options like the DL16522.
Is the DL100307L TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What is the difference between this and a SightLine model?
This model features a standard black drop, whereas SightLine models use a thin cable drop to eliminate the black border and suspend the surface more elegantly.
What tools or additional items are needed for installation?
The unit is a complete screen, but installers should refer to the Myriad Conceal Instructions (PDF) for the required installation tools and mounting requirements.
