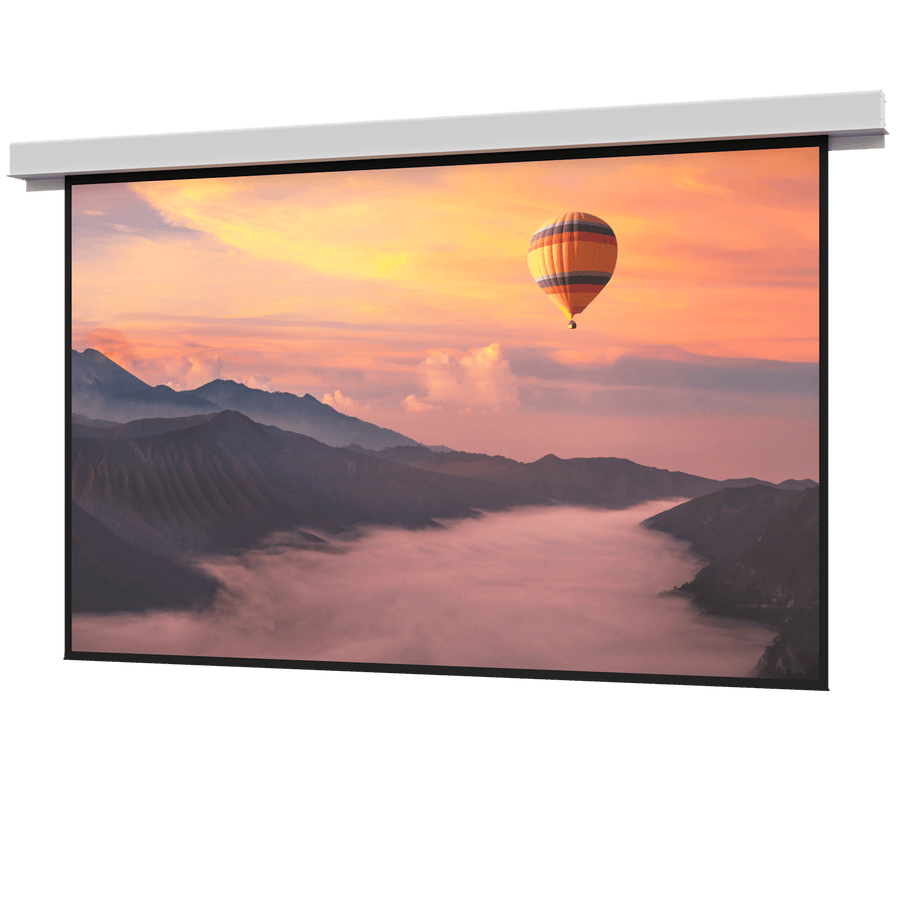

Da-Lite Myriad Conceal, 94.5" x 168" with High Contrast Matte White - DL100307EL
Recessed ceiling electric screen, 94.5" x 168" (193" diagonal), with High Contrast Matte White non-tensioned surface
The Da-Lite DL100307EL is a large-venue, ceiling-recessed electric projection screen designed for professional environments like conference centers, lecture halls, and hotel ballrooms. Measuring 94.5" x 168" (193" diagonal), this HDTV 16:9 format screen features a High Contrast Matte White non-tensioned surface. This model utilizes a standard black drop, which for non-tensioned surfaces results in a 2" (5 cm) black border above the projection area. This specific SKU is configured for 220V (50Hz) export markets and includes low voltage control for integrated system management. For installation, this series offers a two-stage process: the case can be installed during the rough-in phase, while the screen surface assembly is added during finishing. This DL100307EL unit is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 404 lbs (183.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236915552 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100307EL fit my 16:9 display setup?
Yes, this is an HDTV 16:9 format screen with a 193 in (490.2 cm) diagonal, designed specifically for front projection.
What motor voltage is required for the DL100307EL?
This specific model is equipped with a 220V (50Hz) motor designed for export applications.
How does the black drop work on this non-tensioned screen?
As a non-tensioned model, this screen features a standard 2" (5 cm) black drop to provide a border above the projection area.
What is needed to control the DL100307EL motor?
The screen features built-in low voltage control. Additional controllers, such as the Da-Lite DL16522 RF (BLE) or DL16524 Infrared remotes, are compatible accessories.
Can I use this for a submittal or architectural planning?
Yes, you can access the Myriad Conceal Specification Data Sheet, CAD models, or BIM files via the resources provided for this series.
