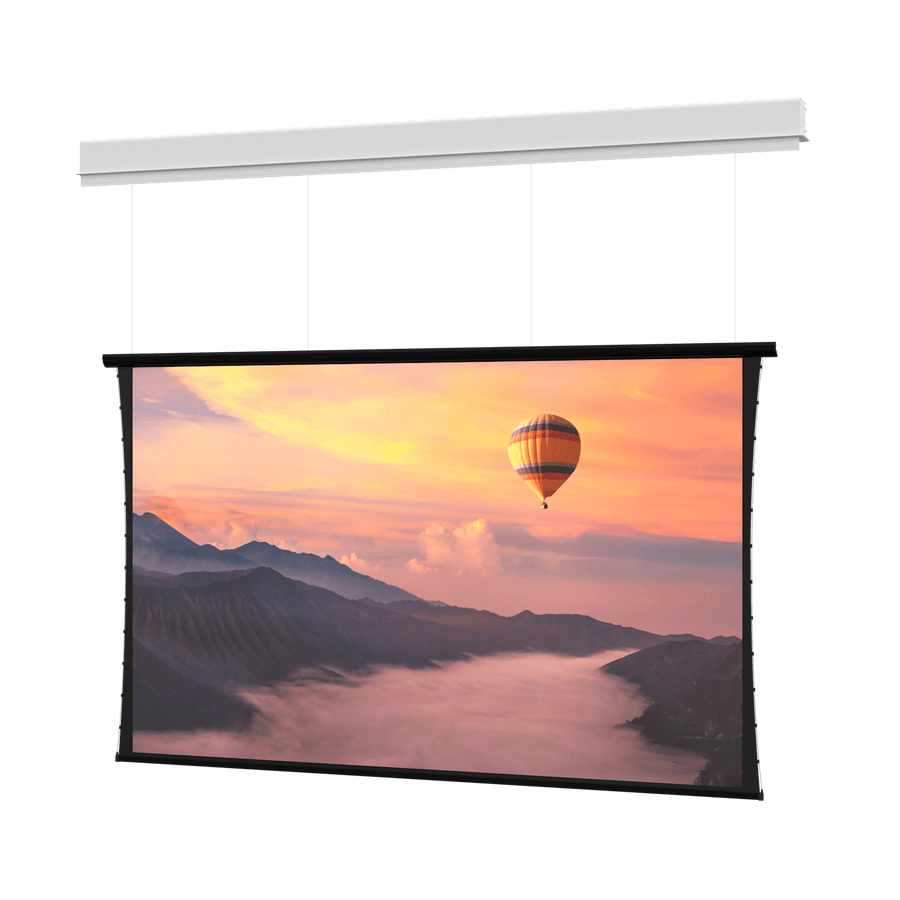

Da-Lite Myriad Conceal, 94.5" x 168" with HD Progressive 1.1 Contrast - DL100261ELB
Ceiling recessed 16:9 projection screen, 94.5" x 168" with SightLine cable drop and HD Progressive 1.1 Contrast surface
The Da-Lite Myriad Conceal DL100261ELB is a ceiling recessed electric projection screen designed for professional environments like lecture halls, conference centers, and hotel ballrooms. This 16:9 HDTV format screen features a 193 in (490.2 cm) diagonal measurement and is equipped with the SightLine cable drop system. The SightLine feature elegantly suspends the screen surface to eliminate the black drop, creating a cleaner look and preserving architectural space above the viewing area for speakers or cameras. This specific model is configured as a Case/Box Only for Rough-In, allowing the screen case to be installed during the initial rough-in construction stage of a project. The 220V (50Hz) motor is intended for export use, and the unit is TAA compliant. The high-resolution HD Progressive 1.1 Contrast surface provides optimal performance for front projection applications. This unit is built with a standard white powder-coated aluminum finish and includes a standard closure door.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen work with my existing controls?
This unit features built-in low voltage control. You can integrate it using compatible controllers like the DL16524 Infrared Remote controller or the DL16622 Smart Low Voltage Wall Switch.
What is the installation requirement for the ceiling?
This is a ceiling recessed application. This specific SKU is the Case/Box Only for Rough-In, meaning the case is installed during the construction rough-in phase, while the surface assembly is added during the finishing stage.
Can I adjust the vertical placement of the screen?
Yes, the SightLine cable drop allows for variable vertical placement. The cables accommodate a drop distance of up to 16' (5 m) between the ceiling and the top of the screen.
Is the screen TAA compliant?
Yes, this Da-Lite Myriad Conceal model is TAA compliant and manufactured in the US.
What surface is included on this model?
The DL100261ELB comes with the HD Progressive 1.1 Contrast surface designed for high-resolution front projection.
