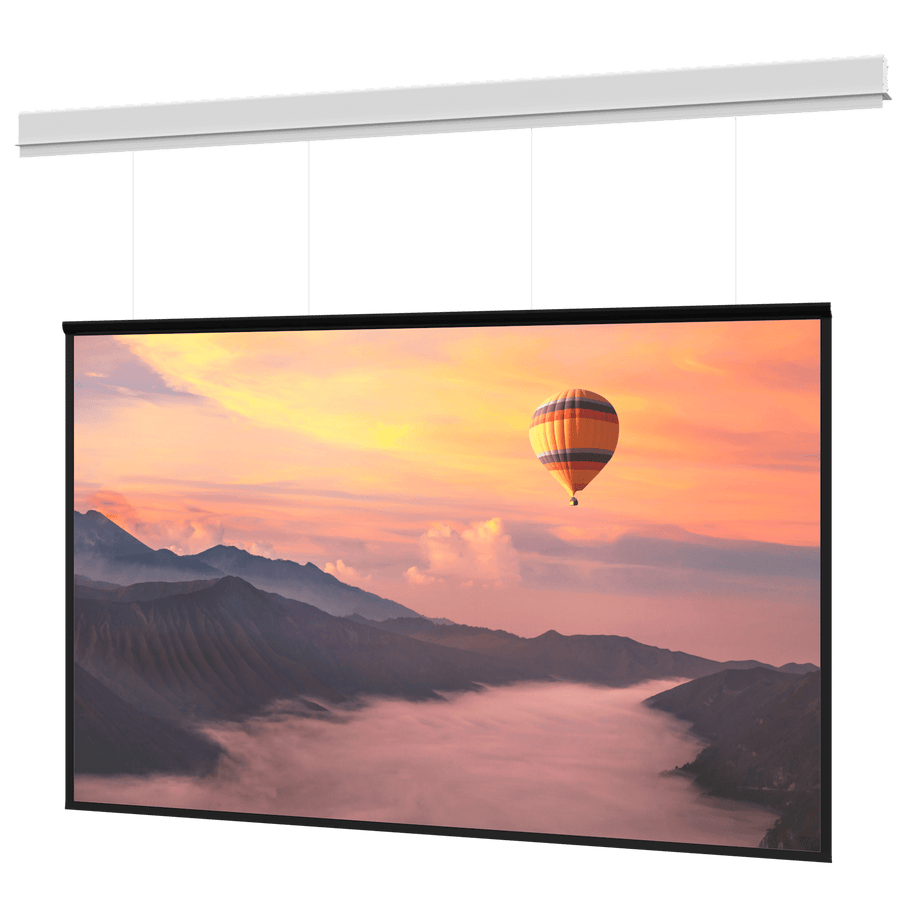

Da-Lite Myriad Conceal, 120" x 192" with Matte White - DL100319L
Ceiling recessed electric screen, 120" x 192", featuring SightLine Cable Drop and Matte White non-tensioned surface
The Da-Lite DL100319L is a 120" x 192" (120 in x 192 in) Myriad Conceal ceiling recessed electric screen designed for large venue applications. This wide 16:10 format screen features a Matte White non-tensioned surface and is optimized for front projection. A key feature of this model is the SightLine Cable Drop, which elegantly suspends the screen surface to eliminate the black drop typically found above projection areas. This creates usable space above the viewing area for the placement of cameras or speakers while preserving architectural interests. This SKU is a complete, TAA compliant screen with a standard 120V (60Hz) motor and built-in low voltage control. The design allows for a two-stage installation process where the screen case can be installed during the rough-in construction stage, and the screen surface assembly is handled during the finishing stage. The included ceiling trim is designed to conceal the rough opening, removing the need for additional trim work after installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 554 lbs (251.3 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236916283 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100319L fit my ceiling configuration?
This is a ceiling recessed model that includes trim to conceal the rough opening. The SightLine Cable Drop allows for variable vertical placement between the ceiling and the top of the screen up to 16' (5 m) in standard range.
What is the difference between this and a standard black drop screen?
The DL100319L uses SightLine Cable Drop technology to suspend the surface, which eliminates the black border above the projection area. This provides extra clearance for mounting speakers or cameras in the space above the screen.
What control options are available for this screen?
This unit features built-in low voltage control and a standard 120V (60Hz) motor. You can add specialized controllers such as the Da-Lite DL16522 RF (BLE) Remote or the DL16524 Infrared Remote.
Is this screen TAA compliant?
Yes, this Da-Lite Myriad Conceal model is TAA compliant, making it suitable for projects requiring compliance with the Trade Agreements Act.
What documents are available for submittals and installation?
You can access the Myriad Conceal Specification Data Sheet, the Myriad Conceal Instructions, and BIM/CAD models to assist with your project submittals and installation planning.
