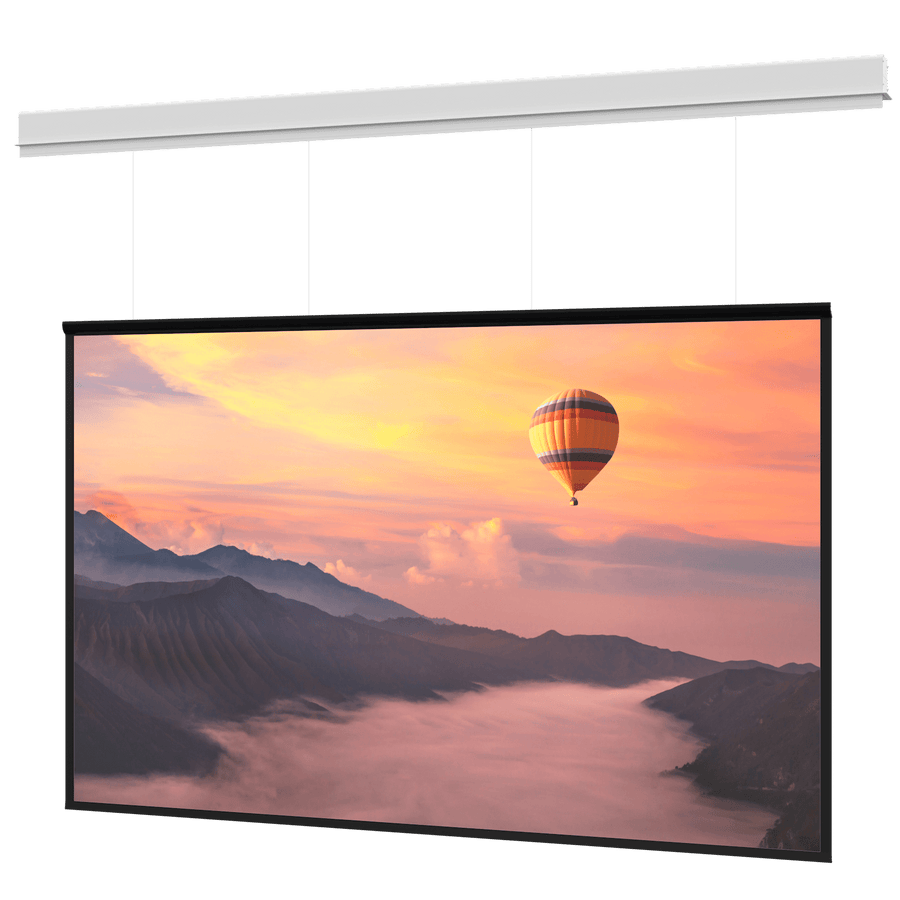

Da-Lite Myriad Conceal, 120" x 192" with Matte White - DL100319ELB
Recessed electric ceiling screen featuring a 120" x 192" matte white non-tensioned surface in a 16:10 wide format
The Da-Lite DL100319ELB is a ceiling recessed electric projection screen designed for high-impact professional environments like lecture halls, conference centers, and hotel ballrooms. This 120" x 192" (304.8 cm x 487.7 cm) unit features a non-tensioned matte white surface in a 16:10 wide aspect ratio, making it an ideal solution for large-scale presentations. It utilizes SightLine cable drop technology, which elegantly suspends the screen surface to eliminate the black drop typically seen in standard installs, preserving architectural integrity and allowing for speaker or camera placement above the viewing area. This specific SKU is configured as a Case/Box Only for Rough-In, allowing installers to install the screen case during the initial construction stage and the surface assembly during the finishing stage. This unit is TAA compliant and is powered by a 220V (50Hz) motor for export applications. The series includes a standard white powder-coated aluminum finish and a standard closure door to protect the screen when retracted.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Weight | 554 lbs (251.3 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the difference between the case and the screen surface for this model?
Yes, this is a ceiling recessed application. This specific SKU is a Case/Box Only for Rough-In, meaning the case is installed during the construction rough-in stage, while the surface assembly is added during finishing.
Does this screen include SightLine technology?
Yes, the DL100319ELB features Da-Lite's SightLine cable drop, which suspends the non-tensioned surface to eliminate the black border above the screen and provides variable drop distances up to 16' (5 m).
What is the required voltage for this motor?
This model is equipped with a 220V (50Hz) motor intended for export use.
What accessories are compatible with this Myriad Conceal screen?
You can add various control options including the DL16522 RF (BLE) remote, the DL16524 Infrared remote, or the DL16622 Smart Low Voltage Wall Switch.
Is this product TAA compliant?
Yes, the DL100319ELB is TAA compliant and is manufactured in the US.
