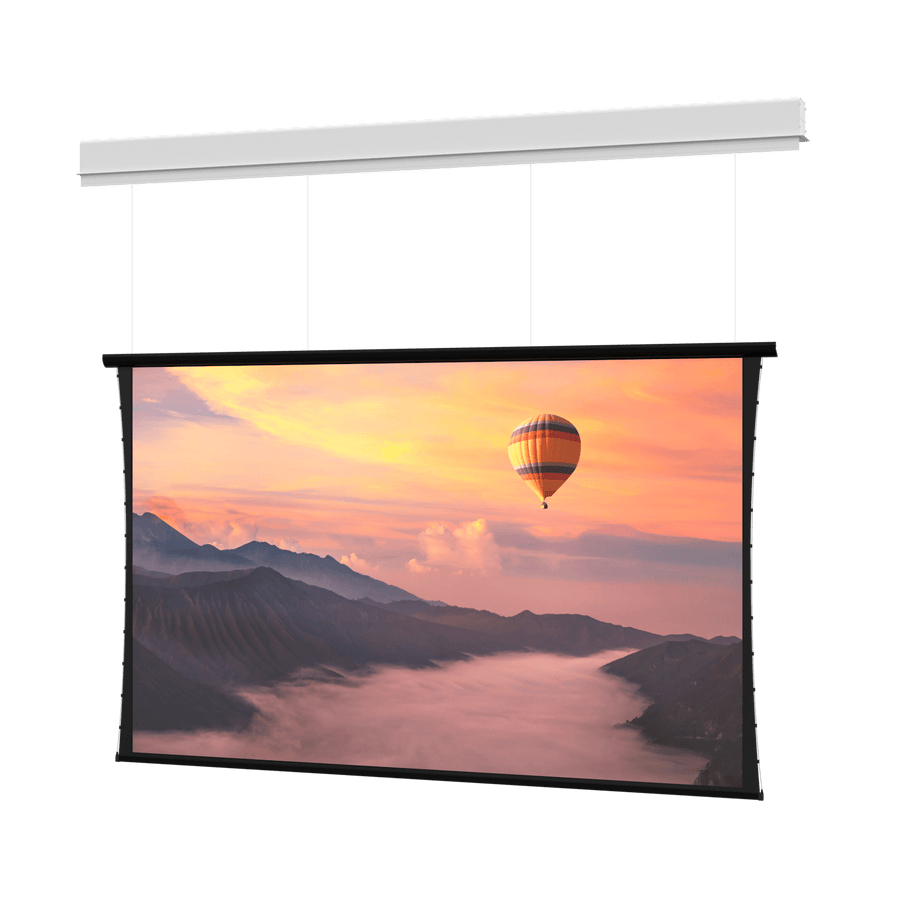

Da-Lite Myriad Conceal, 120" x 192" with HD Progressive 1.1 Contrast - DL100301LF
Ceiling recessed electric screen, 120" x 192" wide format, featuring HD Progressive 1.1 Contrast surface and SightLine Cable Drop
The DL100301LF is a Da-Lite Myriad Conceal ceiling recessed electric projection screen designed for large-scale professional environments. This specific configuration features a 120" x 192" dimensions, providing a wide 16:10 screen format for high-resolution front projection applications. It is equipped with a SightLine Cable Drop, which elegantly suspends the screen surface to eliminate the visual distraction of a black drop. This feature allows the vertical placement to be variable, accommodating a drop distance of up to 16’ (5 m) between the ceiling and the top of the screen, which preserves architectural interest and leaves usable space for speaker or camera placement. This model is provided as the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. It features built-in low voltage control and is powered by a standard 120V (60Hz) motor. This TAA compliant solution is ideal for lecture halls, hotel ballrooms, and large conference centers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit my specific display configuration?
This DL100301LF model is a projection screen, not a display mount. It is designed for front projection using a 16:10 wide format and features a 120" x 192" surface.
What is required to complete the installation for this SKU?
This SKU is the Surface, Roller, and Motor Assembly Only. You must order the corresponding case or box separately to complete the installation.
How does the SightLine Cable Drop work?
The SightLine feature elegantly suspends the screen surface to eliminate the black drop area. It allows for variable drop distances of up to 16’ (5 m) between the ceiling and the top of the screen.
What control options are compatible with this Myriad Conceal screen?
You can add various control options including the DL16521 PoE Injector, the DL16622 Smart Low Voltage Wall Switch, or the DL16522 RF (BLE) Remote Controller.
Where can I find installation and maintenance documentation?
Detailed installation instructions and maintenance guides are available in the Myriad Conceal Instructions PDF and the Da-Lite Screen Maintenance Guide.
