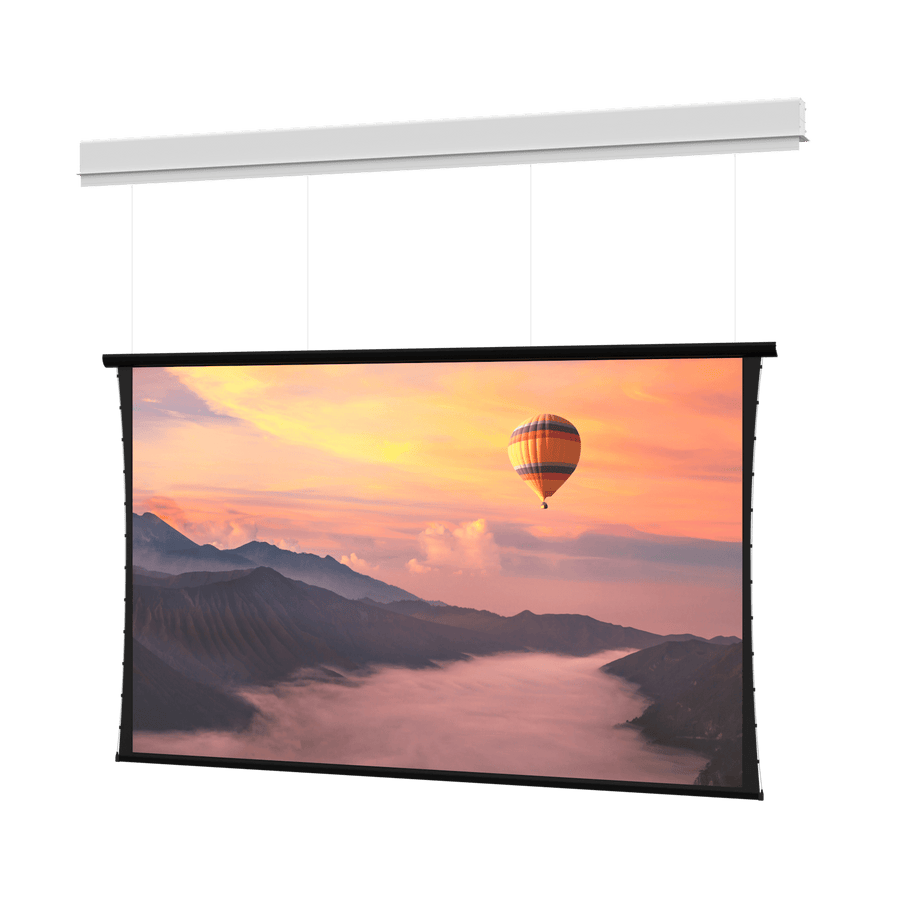

Da-Lite Myriad Conceal, 120" x 192" with HD Progressive 1.1 Contrast - DL100301LB
Ceiling recessed electric screen, 120" x 192", with HD Progressive 1.1 Contrast surface and SightLine cable drop
The Da-Lite DL100301LB is a ceiling recessed electric projection screen designed for professional environments such as lecture halls, conference centers, and hotel ballrooms. This 120" x 192" (574 x 487.7 cm) screen features a Wide 16:10 format and is paired with a High Resolution HD Progressive 1.1 Contrast surface. It utilizes SightLine technology, a thin cable drop that eliminates the black border typically seen above a projection surface, creating a cleaner architectural look and preserving usable space for speakers or cameras. This specific SKU is a Case/Box Only for Rough-In selection, allowing installers to install the screen case during the rough-in construction stage and complete the surface assembly during the finishing stage. The unit features a standard 120V (60Hz) motor and includes low voltage control. This TAA compliant product is manufactured in the US and is suitable for front projection applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Weight | 571.5 lbs (259.2 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
How does the SightLine cable drop work with this screen?
SightLine is Da-Lite's thin cable drop feature that elegantly suspends the screen surface to eliminate black drop. It accommodates a vertical drop distance of up to 16' (5 m) between the ceiling and the top of the screen.
Is this screen suitable for rough-in construction?
Yes, this is a Case/Box Only for Rough-In selection. This allows you to install the screen case during the rough-in stage and the screen surface assembly during the finishing stage.
What control options are compatible with the DL100301LB?
The screen features built-in low voltage control. You can add compatible controllers such as the DL16521 PoE Injector, the DL16522 RF (BLE) Remote controller, or the DL16622 Smart Low Voltage Wall Switch.
What is the screen format and aspect ratio?
The DL100301LB is a Wide 16:10 format screen, providing a 226 in (574 cm) diagonal projection area.
What documentation is available for submittals?
Full technical details are available in the Myriad Conceal Specification Data Sheet and the Myriad Conceal Instructions. CAD and BIM models are also available for architectural planning.
