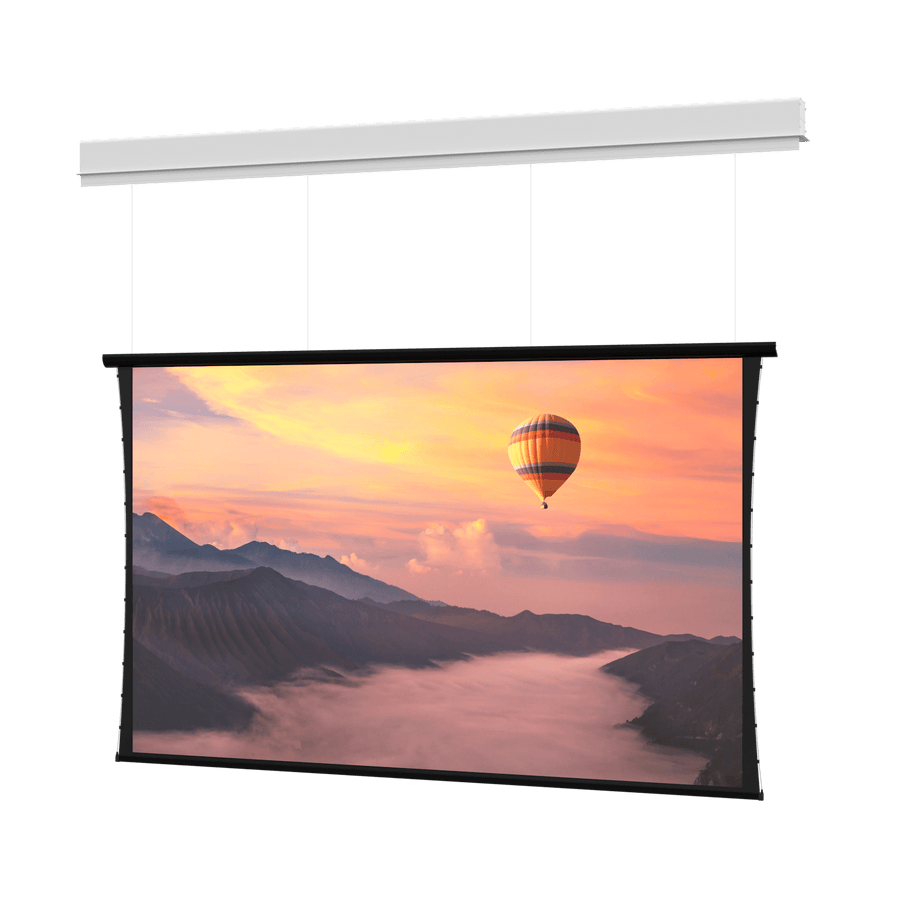

Da-Lite Myriad Conceal, 120" x 192" with Da-Tex - DL100305ELF
Ceiling recessed rear projection screen with 120" x 192" dimensions, Da-Tex surface, and SightLine cable drop technology
The DL100305ELF is a Myriad Conceal series ceiling recessed electric screen designed for professional rear projection applications. This 120" x 192" screen features a 226 in (574 cm) diagonal and is configured in a 16:10 wide format. It is equipped with a Da-Tex surface for standard resolution projection. This specific SKU is a surface, roller, and motor assembly only; the case and box must be ordered separately. This model features the SightLine cable drop, which allows for variable vertical placement of the screen surface by accommodating a range of drop distances up to 16’ (5 m) between the ceiling and the top of the screen. This feature eliminates the standard black drop and preserves architectural space for camera or speaker placement. Designed for seamless integration, the Myriad Conceal includes ceiling trim to hide the rough opening. This 220V (50Hz) for export motor model is TAA compliant and includes low voltage control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Weight | 571.5 lbs (259.2 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100305ELF fit my rear projection setup?
Yes, this is a rear projection screen featuring a 120" x 192" dimensions and a Da-Tex surface optimized for standard resolution.
What is included with the DL100305ELF motor and roller assembly?
This SKU is the surface, roller, and motor assembly only; the external case or box must be ordered separately to complete the installation.
How does the SightLine feature affect installation?
The SightLine cable drop allows you to adjust the vertical placement of the screen up to 16’ (5 m) below the ceiling, helping to preserve architectural views.
Can I use this screen in a TAA compliant project?
Yes, the DL100305ELF is TAA compliant and is manufactured in the US.
What control options are available for this Myriad Conceal screen?
This model features low voltage control and is compatible with various Da-Lite controllers like the DL16522 RF remote or DL16524 infrared remote.
