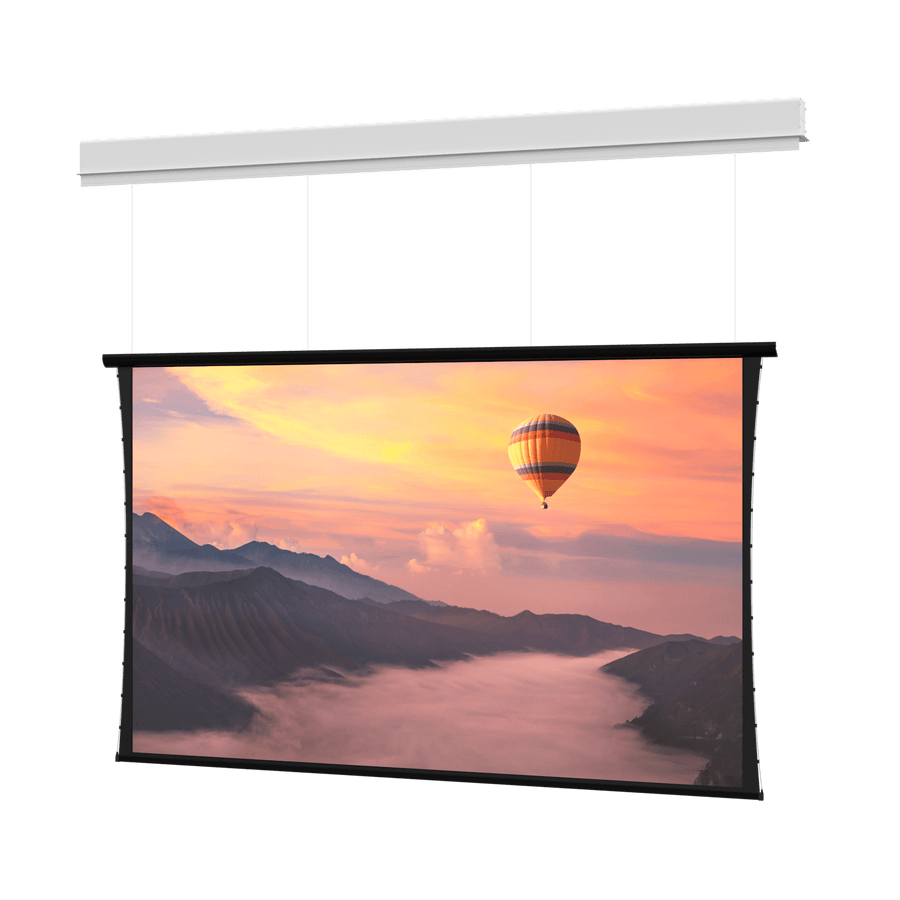

Da-Lite Myriad Conceal, 120" x 192" with Da-Mat - DL100304LF
Ceiling recessed electric screen for 16:10 wide format, featuring 120" x 192" Da-Mat surface and SightLine cable drop
The Da-Lite DL100304LF is a Myriad Conceal ceiling recessed electric screen designed for professional large-scale environments like lecture halls, conference centers, and houses of worship. This 120" x 192" (226" diagonal) projection screen utilizes a Wide 16:10 aspect ratio and features a high-quality Da-Mat surface for standard resolution front projection. This specific SKU is a Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. It is engineered for two-stage installation, allowing the screen case to be installed during the rough-in phase and the surface assembly to be added during the finishing phase. The integrated SightLine cable drop technology elegantly suspends the screen surface, eliminating the unsightly black drop typically seen above the viewing area and creating usable space for cameras or speakers. This model features a standard 120V (60Hz) motor and low voltage control. As a TAA compliant product, it is suitable for government and regulated international installations. The assembly is designed for ceiling recessed applications, providing a clean, integrated look with a standard white powder-coated aluminum finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Is the DL100304LF a complete installation kit?
No, this SKU is a Surface, Roller, and Motor Assembly Only. The screen case and box must be ordered separately to complete the installation.
Will the SightLine cable drop work with any ceiling height?
Yes. The SightLine feature allows for variable vertical placement, accommodating a standard range of up to 16' (5 m) between the ceiling and the top of the screen.
What control options are compatible with this screen?
This screen features built-in low voltage control and is compatible with accessories like the DL16523 RF (BLE) Remote and PoE Injector or the DL16622 Smart Low Voltage Wall Switch.
What is the benefit of the two-stage installation process?
It allows installers to mount the screen case during the rough-in construction stage and then install the screen surface assembly later during the finishing stage.
Does this model include the ceiling trim?
Yes, the Myriad Conceal series is designed with ceiling trim in place to conceal the rough opening, which eliminates the need for additional trim work after installation.
