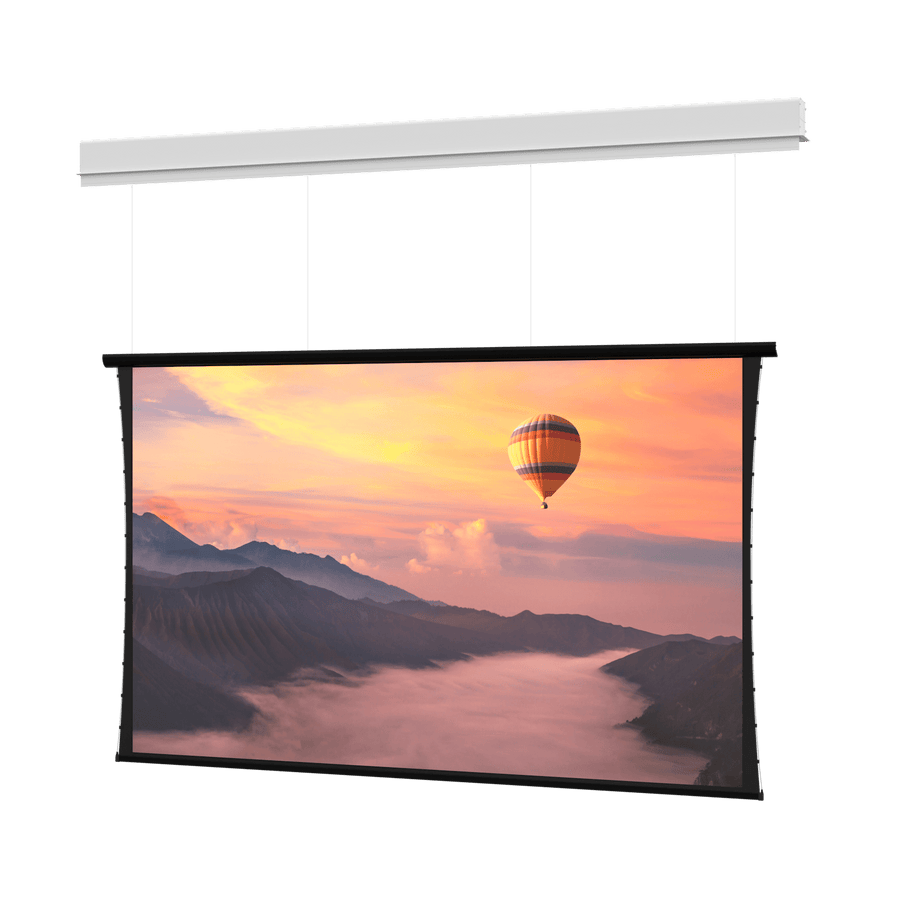

Da-Lite Myriad Conceal, 120" x 192" with Da-Mat - DL100304ELF
Ceiling recessed electric screen featuring a Da-Mat surface and SightLine cable drop for a clean, high-impact projection aesthetic
The DL100304ELF is a Da-Lite Myriad Conceal ceiling recessed electric screen with a 120" x 192" dimensions and a 226 in (574 cm) diagonal. This wide (16:10) format projection screen utilizes a Da-Mat surface designed for standard resolution front projection applications. A key feature of this model is the SightLine cable drop, which elegantly suspends the screen surface to eliminate the black drop, preserving architectural interests and providing space for camera or speaker placement. This SKU is specified as the surface, roller, and motor assembly only; the case or box must be ordered separately. Designed for international use, this unit features a 220V (50Hz) motor for export. It is TAA compliant and manufactured in the US. This configuration is particularly suited for large conference centers, lecture halls, and hotel ballrooms where a clean, recessed look is required without the need for additional trim work after installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the DL100304ELF fit my existing Myriad Conceal ceiling setup?
This specific SKU is the surface, roller, and motor assembly only. You must order the separate case or box to complete the installation.
What is required for a complete installation of the DL100304ELF?
To operate the screen, you may need additional controllers such as the DL16522 RF Remote controller or the DL16521 PoE Injector controller.
How does the SightLine cable drop affect the screen appearance?
The SightLine feature suspends the screen surface to eliminate the black border above the projection area, providing a cleaner aesthetic.
What voltage does the motor on this model use?
This model is equipped with a 220V (50Hz) motor, which is intended for export use.
Is this screen suitable for high-end architectural integration?
Yes, the Myriad Conceal features integrated ceiling trim to conceal the rough opening and uses SightLine technology to preserve vertical space above the viewing area.
