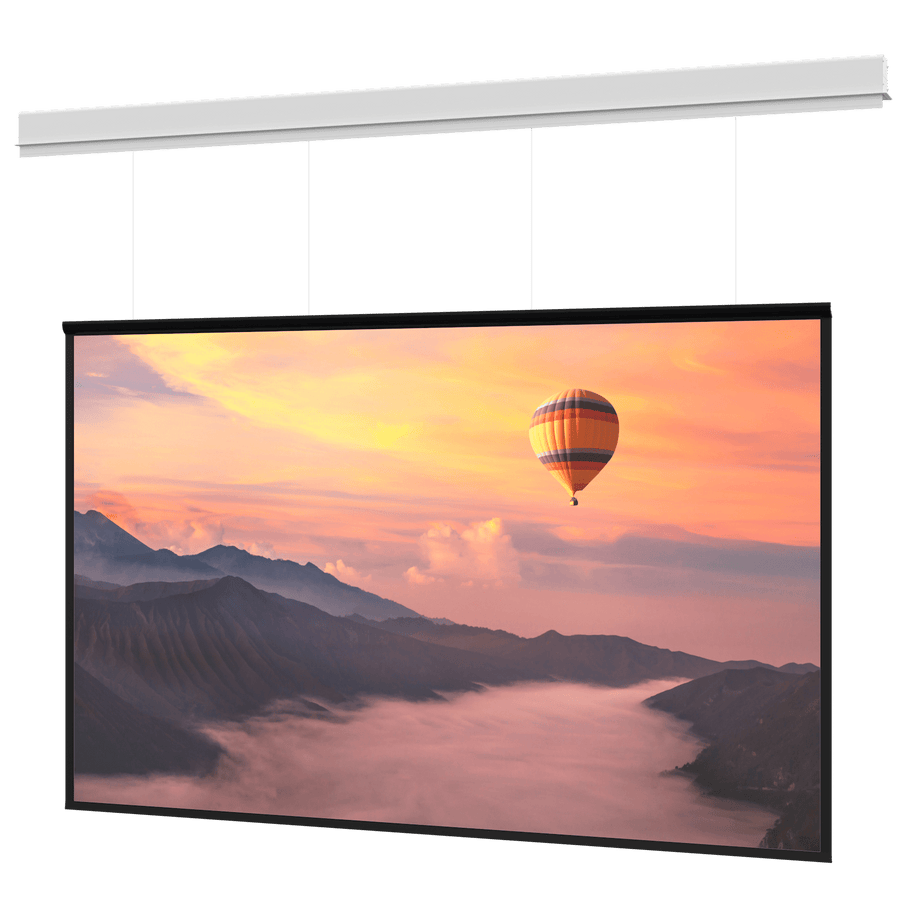

Da-Lite Myriad Conceal, 110" x 176" with Matte White - DL100318LB
Ceiling recessed electric projection screen, 110" x 176" wide format, Matte White non-tensioned surface with SightLine cable drop
The Da-Lite DL100318LB is a Myriad Conceal series ceiling recessed electric screen designed for professional environments like lecture halls, conference centers, and large meeting spaces. This specific SKU features a 110" x 176" (279.4 x 447 mm) wide 16:10 aspect ratio format with a non-tensioned Matte White surface. It is built for front projection applications and utilizes a standard 120V (60Hz) motor. This model is designed as a Case/Box Only for Rough-In, allowing for a two-stage installation process: the screen case can be installed during the rough-in construction phase, while the screen surface assembly is added during the finishing stage. It features SightLine technology, which uses a thin cable drop to elegantly suspend the surface, eliminating the black drop typically found in standard installations. This vertical placement is variable, accommodating drop distances up to 16' (5 m) between the ceiling and the top of the screen. This unit is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit a 16:9 or 16:10 aspect ratio requirement?
This specific DL100318LB model is configured for a 16:10 Wide screen format.
What do I need to buy for control and remote operation?
You can add various controllers, such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote version (DL16524).
How much clearance is needed for the cable drop?
The SightLine technology allows for variable vertical placement, accommodating drop distances between the ceiling and the top of the screen of up to 16' (5 m).
Is this screen suitable for plenum air spaces?
Yes, the Myriad Conceal series includes an UL Plenum rated case option.
Can I use this for a submittal or CAD planning?
Da-Lite provides Myriad Conceal Specification Data Sheets, BIM Models, and CAD Models to assist with project submittals and planning.
