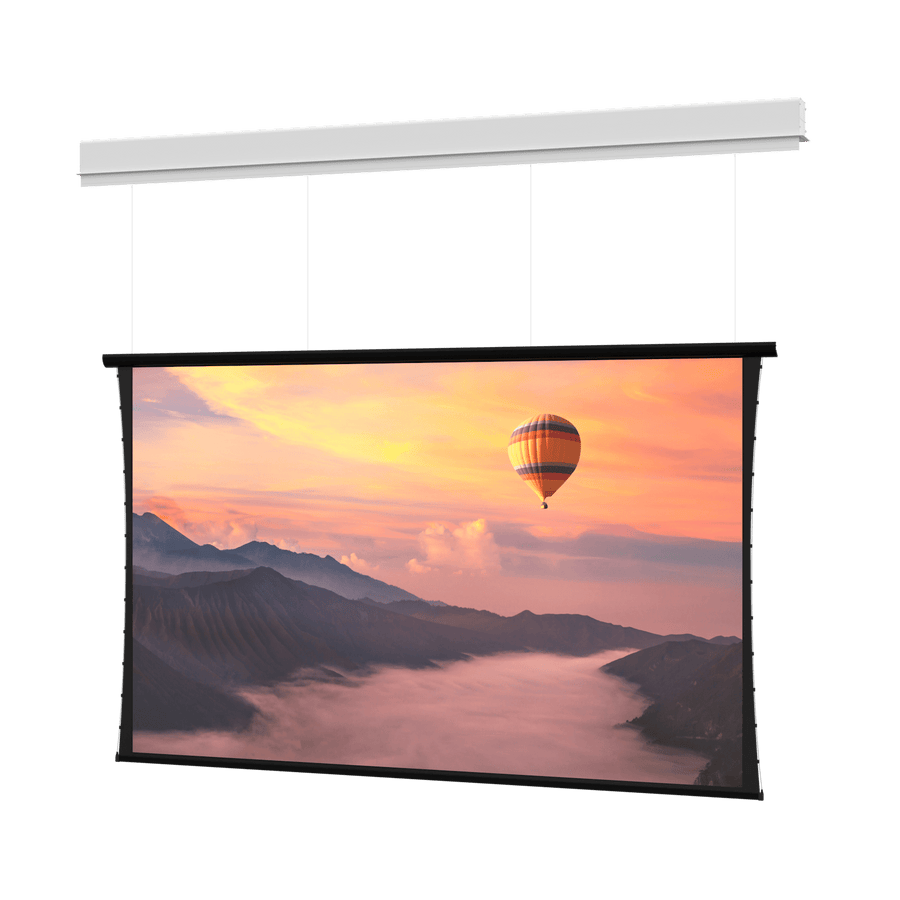

Da-Lite Myriad Conceal, 110" x 176" with HD Progressive 1.1 Contrast - DL100293LB
Ceiling recessed electric screen, 110" x 176" (208" diagonal), featuring HD Progressive 1.1 Contrast surface and SightLine cable drop
The Da-Lite DL100293LB is a Myriad Conceal series ceiling recessed electric screen designed for front projection in large-scale environments. Measuring 110" x 176" (279.4 x 447 mm) with a 208" (528.3 cm) diagonal, this Wide (16:10) format screen utilizes an HD Progressive 1.1 Contrast surface to enhance image clarity. This SKU is configured as a Case/Box Only for Rough-In, allowing the screen case to be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage. The integrated SightLine cable drop feature elegantly suspends the screen surface, eliminating the black drop typically seen in standard installations and providing a clean, architectural look. This setup creates usable space above the viewing area, which is ideal for the placement of cameras or speakers in conference centers, lecture halls, and large meeting spaces. The system is powered by a standard 120V (60Hz) motor and includes low voltage control for integrated management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Is the DL100293LB suitable for federal projects?
Yes, this model is TAA compliant.
What is the installation process for this screen?
This is a Case/Box Only for Rough-In model, which allows the case to be installed during the construction rough-in stage and the surface assembly to be added during the finishing stage.
How does the SightLine feature work?
The SightLine cable drop elegantly suspends the screen surface to eliminate the black border (black drop) that appears when the screen is retracted.
What kind of power supply is required?
The screen is equipped with a standard 120V (60Hz) motor.
What accessories are compatible with this screen?
You can add various controllers, such as the DL16522 RF (BLE) remote controller or the DL16622 Smart Low Voltage Wall Switch.
