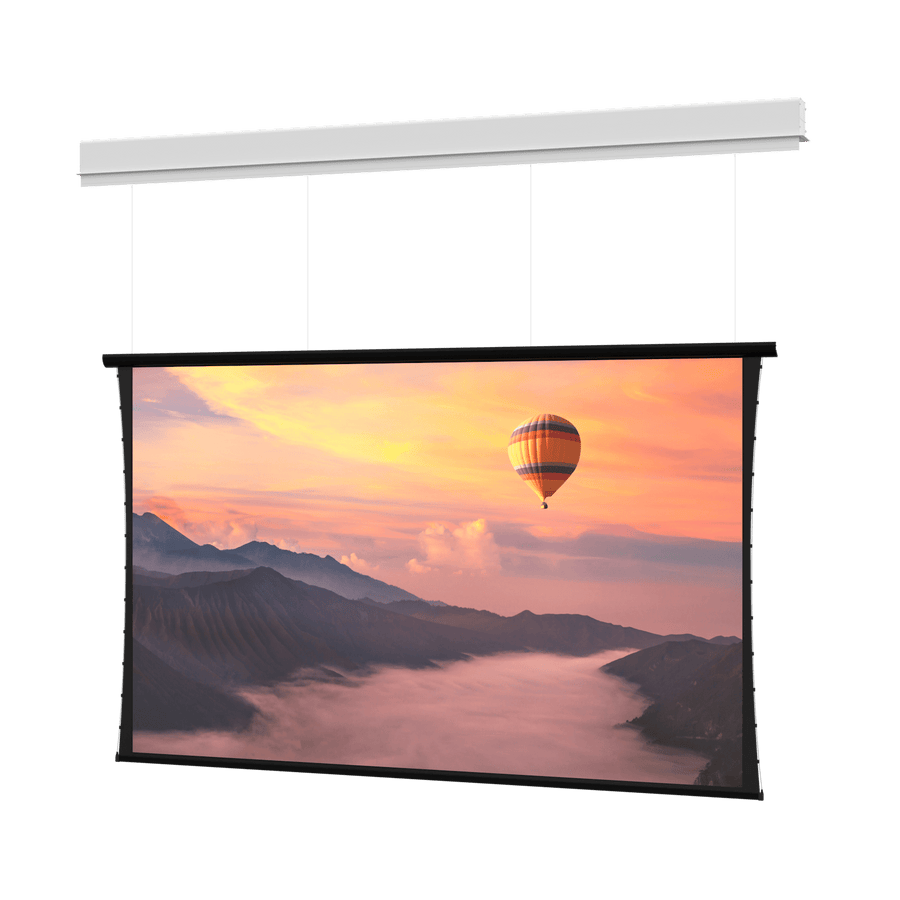

Da-Lite Myriad Conceal, 110" x 176" with HD Progressive 1.0 - DL100292LF
Recessed ceiling electric screen, 110" x 176" wide format, featuring HD Progressive 1.0 surface and SightLine cable drop
The Da-Lite DL100292LF is a Myriad Conceal ceiling recessed electric screen designed for professional environments like lecture halls, conference centers, and large meeting spaces. This 110" x 176" (208" diagonal) screen utilizes a 16:10 Wide screen format and features a high-resolution HD Progressive 1.0 surface. It is engineered for front projection applications where a clean, integrated aesthetic is required. This specific SKU is a Surface, Roller, and Motor Assembly only; the case or box must be ordered separately. The unit features SightLine technology, which employs a thin cable drop to suspend the screen surface, eliminating the standard black drop for a more seamless look. The motor is a standard 120V (60Hz) model with built-in low voltage control. This TAA compliant product is manufactured in the US and is ideal for installations requiring a professional, recessed appearance without additional ceiling trim work.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 549 lbs (249 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does this Da-Lite DL100292LF include the housing box?
No, this SKU is the Surface, Roller, and Motor Assembly only. The case or box must be ordered separately for a complete installation.
What is the difference between the SightLine drop and a standard drop?
The SightLine cable drop elegantly suspends the screen surface to eliminate the black border (black drop) typically seen above the image. It also allows for a variable vertical placement of the screen, accommodating drop distances up to 16' (5 m) between the ceiling and the top of the screen.
What electrical requirements are needed for the motor?
This model features a standard 120V (60Hz) motor and includes built-in low voltage control for integration into automated systems.
Which accessories are compatible with the Myriad Conceal series?
Compatible accessories include various Da-Lite controllers, such as the DL16524 infrared remote controller or the DL16523 RF (BLE) controller with a PoE injector. You can also use the DL16622 Smart Low Voltage Wall Switch.
Is this screen TAA compliant for government projects?
Yes, the DL100292LF is TAA compliant and is manufactured in the US.
