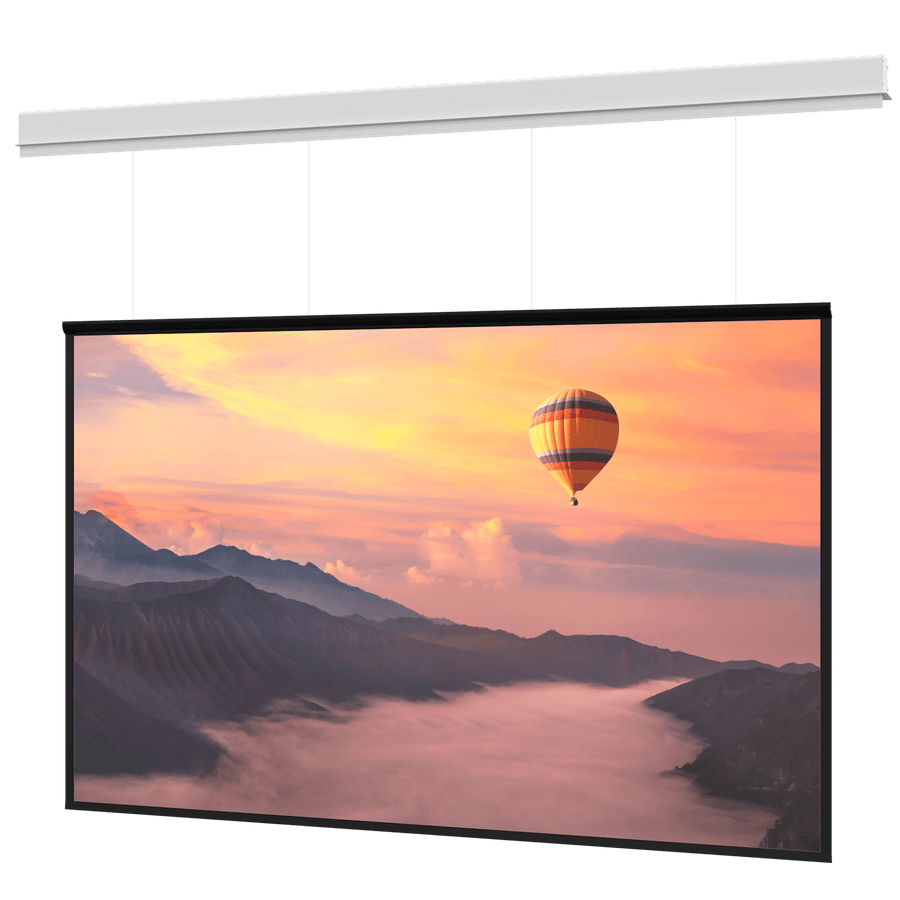

Da-Lite Myriad Conceal, 108" x 192" with Matte White - DL100316LF
Ceiling recessed electric screen, 108" x 192" matte white non-tensioned surface with SightLine cable drop
The Da-Lite DL100316LF is a ceiling recessed electric screen designed for professional projection environments. This specific SKU features a 108" x 192" (274.3 x 487.7 mm) matte white non-tensioned surface in a 16:9 HDTV format. It is engineered for front projection and utilizes a standard 120V (60Hz) motor for automated operation. A primary feature of this Myriad Conceal model is the SightLine cable drop, which elegantly suspends the screen surface to eliminate the black drop typically seen above the image. This creates a clean visual and preserves usable architectural space above the viewing area for speakers or cameras. This unit is a surface, roller, and motor assembly only; the case and box must be ordered separately. This TAA compliant product is manufactured in the US and is ideal for large meeting spaces, lecture halls, and conference centers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Weight | 554 lbs (251.3 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the size of the Da-Lite DL100316LF screen?
The DL100316LF has a screen width of 192" (487.7 mm), a height of 108" (274.3 mm), and a 220 in (558.8 cm) diagonal.
Does this screen require a separate case and box?
Yes, this SKU is the surface, roller, and motor assembly only. The case and box must be ordered separately for a complete installation.
Can I control this screen with a remote?
Yes, this model includes built-in low voltage control and is compatible with accessories like the Da-Lite DL16524 Infrared Remote or the DL16522 RF (BLE) Remote.
What are the installation requirements for the Myriad Conceal?
This is a ceiling recessed application. The SightLine cable drop allows for variable vertical placement with cable accommodations for standard drop distances.
Is this screen TAA compliant for government contracts?
Yes, the DL100316LF is TAA compliant and is manufactured in the US.
