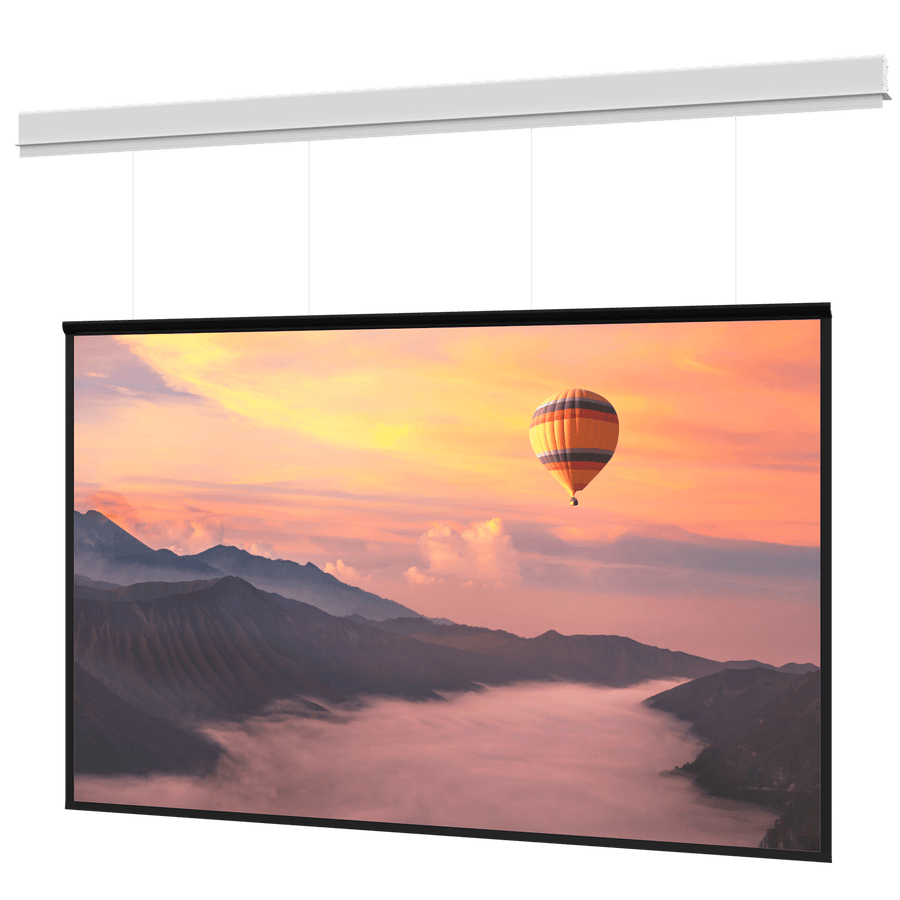

Da-Lite Myriad Conceal, 108" x 192" with Matte White - DL100316L
Ceiling recessed electric screen measuring 108" x 192", featuring SightLine Cable Drop and non-tensioned Matte White surface
The Da-Lite Myriad Conceal DL100316L is a large venue, ceiling-recessed electric screen designed for professional environments like lecture halls, conference centers, and ballrooms. This 108" x 192" (220" diagonal) screen features a non-tensioned Matte White surface in a 16:9 HDTV format, optimized for front projection. It utilizes Da-Lite's SightLine Cable Drop technology, which elegantly suspends the screen surface to eliminate the black drop typically found above the viewing area. This feature allows for variable vertical placement of the screen, accommodating drop distances up to 16' (5 m) between the ceiling and the top of the screen, which preserves architectural integrity and creates space for camera or speaker placement. This SKU includes low voltage control and a standard 120V (60Hz) motor. The Myriad Conceal series is built for two-stage installation, allowing the case to be installed during the rough-in phase and the surface assembly during finishing. This unit is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 554 lbs (251.3 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236916214 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen work for my ceiling recessed installation?
Yes, the DL100316L is specifically designed for ceiling recessed applications and features a SightLine Cable Drop to eliminate the black border above the display.
What is the drop distance for the SightLine Cable Drop feature?
The SightLine technology accommodates a variable vertical placement of the screen surface with cables that handle drop distances up to 16' (5 m) from the ceiling.
What additional controls or accessories are compatible with this screen?
You can add various Da-Lite controllers, such as the DL16524 with an Infrared Remote or the DL16522 with an RF (BLE) Remote, to manage the motor.
Is this product TAA compliant for federal projects?
Yes, the DL100316L is TAA compliant and is manufactured in the USA.
How does the installation process work for Myriad Conceal?
The series supports a two-stage installation; the case can be installed during the rough-in stage, while the screen surface assembly is handled during the finishing stage.
