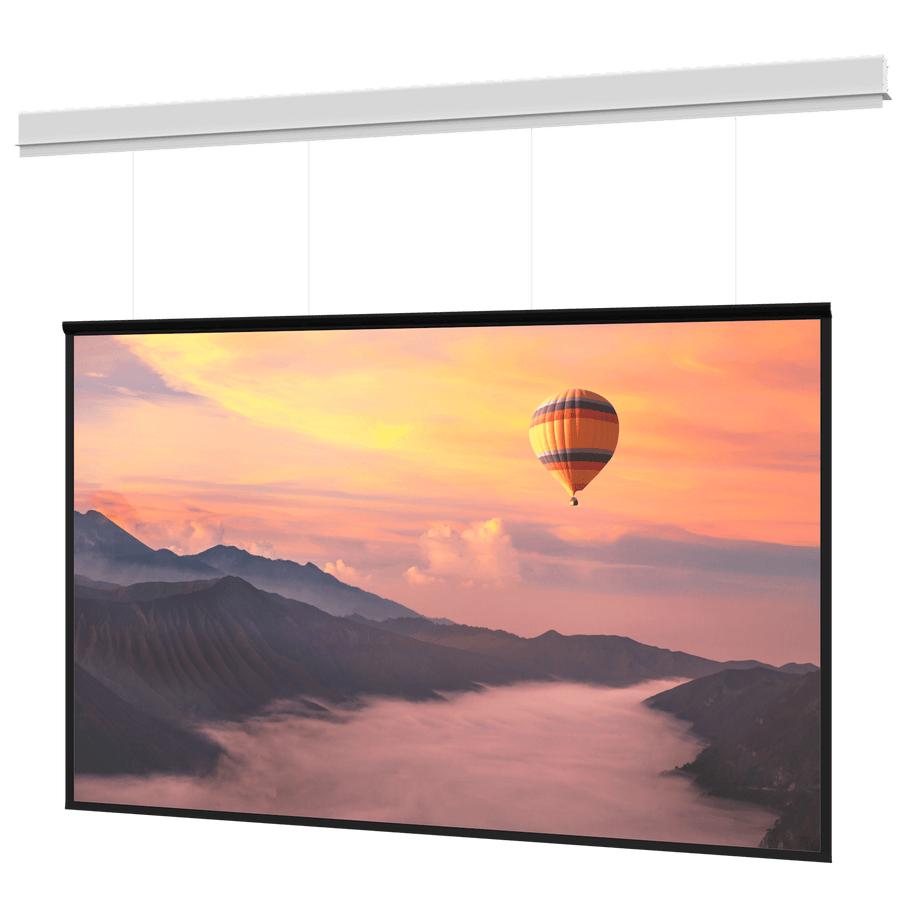

Da-Lite Myriad Conceal, 108" x 192" with Matte White - DL100316EL
Ceiling recessed electric screen for 16:9 HDTV, featuring a Matte White non-tensioned surface and SightLine cable drop
The Da-Lite Myriad Conceal DL100316EL is a large venue, ceiling recessed electric projection screen measuring 108" x 192" (274.3 x 487.7 cm), providing a 220 in (558.8 cm) diagonal viewing area. This non-tensioned model features a Matte White surface and is configured for front projection in a 16:9 HDTV format. A key feature of this series is the SightLine cable drop, which elegantly suspends the screen surface to eliminate black drop, preserving architectural interest and creating usable space above the viewing area for speakers or cameras. This model is designed for two-stage installation: the case can be installed during the rough-in construction stage, while the screen surface assembly is completed during the finishing stage. Because this SKU uses SightLine cables, the vertical placement of the screen is variable, accommodating drop distances up to 16’ (5 m) between the ceiling and the top of the screen. This DL100316EL unit is TAA compliant and utilizes a 220V (50Hz) motor designed for export markets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 220.5" x 13" x 20" (560 x 33 x 50.8 cm) |
| Shipping Weight | 554 lbs (251.3 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236915606 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit my ceiling configuration?
The Myriad Conceal is a ceiling recessed screen designed to hide the rough opening with integrated trim. Its SightLine cable drop allows for variable vertical placement of the screen surface, accommodating drop distances up to 16’ (5 m) from the ceiling.
What do I need to buy to control this screen?
This screen includes built-in low voltage control. You can add specific control options such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote (DL16524) depending on your system requirements.
How does the SightLine feature affect the screen appearance?
The SightLine technology elegantly suspends the screen surface to eliminate black drop. This feature creates usable space above the viewing area, which is useful for the placement of cameras or speakers.
What is the difference between this and a tensioned Myriad screen?
This specific SKU is a non-tensioned model with a 2" (5 cm) standard black drop. Tensioned models in the Myriad series are standard with 12” (30.5 cm) of black drop and are available with HD Progressive 16K ready surfaces.
Which installation documents are available for submittals?
Installers can access the Myriad Conceal Specification Data Sheet, the Myriad Conceal Instructions, or CAD and BIM models via the resources provided to assist with project submittals.
